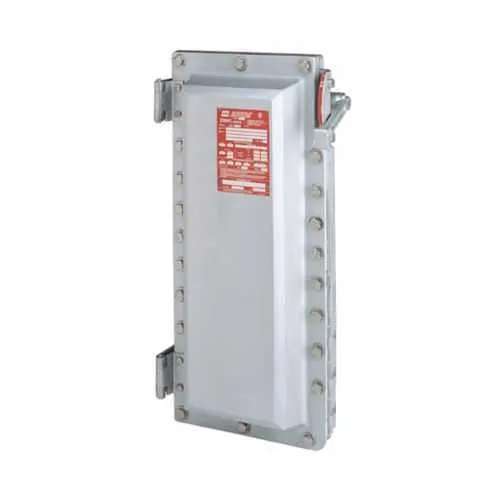

Eaton EBMBB WT80EHD34 Circuit Breaker - Explosionproof
Part Number: EBMBB WT80EHD34
Quick Summary
The Eaton EBMBB WT80EHD34 circuit breaker protects electrical distribution in hazardous locations, delivering explosionproof protection for industrial plants. Engineers struggle with balancing safety, regulatory compliance, and downtime when enclosures and interlocks fail to meet harsh environment demands. It meets NEC/CEC standards and hazard-location ratings, including Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III, with NEMA 3/3R/4/7/9/12 options for durable outdoor or indoor service. Coupled with a 100A frame, three-pole design, and copper-free aluminum enclosure, this model supports easy integration into existing Eaton Crouse-Hinds EBMB systems, helping you drive uptime and reduce lifecycle costs.
Product Information
Extended Description
EBMBB WT80EHD34 Eaton: Eaton Crouse-Hinds series EBMB circuit breaker, 15A through 100A, EHD frame type, Bolted/ground joint/gasketed cover construction, Copper-free aluminum, 100A frame size, Cutler-Hammer breaker, Three-pole, 80A trip, 480 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series EBMB circuit breaker
Catalog Number
EBMBB WT80EHD34
UPC
782274919539
Product Length/Depth
14.78 in
Product Height
26.9 in
Product Width
10.25 in
Product Weight
134 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 3R 4 7 9 12
Enclosure
With circuit breaker
Number of poles
Three-pole
Voltage rating
480 Vac/250 Vdc
Frame size
100A
Amperage Rating
15A through 100A
Manufacturer
Cutler-Hammer
Circuit breaker frame type
EHD
Enclosure cover construction
Bolted/ground joint/gasketed
Enclosure material
Copper-free aluminum
SP3D Design Package - EBMB Explosionproof Circuit Breakers
EBMB Series Explosionproof Circuit Breakers catalog page
EBMB Explosionproof Circuit Breakers Canadian certification
EBMB Explosionproof Circuit Breakers Canadian certification
IF 1149 - Wiring
IF 1149 - Wiring
IF 1149 - Wiring
Eaton Specification Sheet - EBMBB WT80EHD34
Explosionproof EBMB design with a 100A frame and three poles delivers robust protection against overload and short circuits in hazardous locations. This reliability reduces the risk of ignition and unplanned downtime, meeting stringent safety and regulatory expectations. It is well suited for oil and gas platforms, chemical processing plants, and mining operations where enclosure integrity is non negotiable. Copper-free aluminum enclosure coupled with bolted/ground joint/gasketed covers offers corrosion resistance and durable sealing in dusty, humid, or chemically aggressive environments. The business impact is lower maintenance costs and fewer field failures, translating to reduced maintenance cycles and faster repair times. This configuration is ideal for outdoor installations and harsh indoor environments in refineries or wastewater facilities. Wide amperage range from 15A through 100A, 480Vac/250Vdc rating, and an EHD frame size support seamless integration with existing feeders and distribution panels, simplifying procurement and reducing part substitutions during upgrades. This is particularly valuable for mid-size plants and modular expansions where consistent protection matters. NEC/CEC compliance and a broad spectrum of NEMA ratings (3, 3R, 4, 7, 9, 12) provide installation flexibility across indoor, outdoor, and hazardous-area applications. The payoff is faster regulatory approvals, safer documentation, and a lower total cost of ownership over the life of the installation. Enclosure compatibility and installation readiness are enhanced by provided documentation and CAD resources in the downloads, including catalog pages, 3D models, and installation sheets, which reduces engineering effort and accelerates project timelines while ensuring correct fit and wiring practices.
Get a Quick Quote for a Eaton EBMBB WT80EHD34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMBB WT80EHD34?
Enquire Now
FAQs
Begin by reviewing the installation instructions and wiring diagrams from Eaton, ensuring the enclosure is rated for the intended hazard location. Mount the three-pole breaker securely on a compatible bus, connect earth/ground, and use the gasketed, bolted cover to maintain enclosure integrity. Verify 480 Vac/250 Vdc ratings and 15–100A ampacity match the feeder design, then perform final inspection for compliance with NEC/CEC requirements.
The unit is designed as explosionproof with an EHD frame for robust protection in Class I/II/III locations. It carries NEC/CEC compliance and hazardous-location classifications, plus a NEMA-rated enclosure set (3, 3R, 4, 7, 9, 12). Its copper-free aluminum enclosure and gasketed construction resist corrosion and ingress, delivering reliable protection in demanding environments like refineries and offshore facilities.
The EBMB WT80EHD34 is a three-pole breaker with a 100A frame size and amperage range from 15A to 100A. It operates at 480 Vac or 250 Vdc, and is designed for three-pole protection in industrial power distribution circuits, offering reliable overload and short-circuit protection for demanding motor feeders.
Yes. It adheres to NEC/CEC standards and is rated for hazardous-location service with Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III approvals. It also supports corresponding NEMA ratings (3, 3R, 4, 7, 9, 12) to fit a wide range of installation types, from indoor panels to outdoor enclosures.
The copper-free aluminum enclosure reduces corrosion-related maintenance, while the explosionproof construction lowers ignition risk and downtime in hazardous locations. With broad compatibility and long service life, the unit minimizes spare parts inventory and field failures, delivering lower total cost of ownership and improved uptime for critical feeders and motors.
