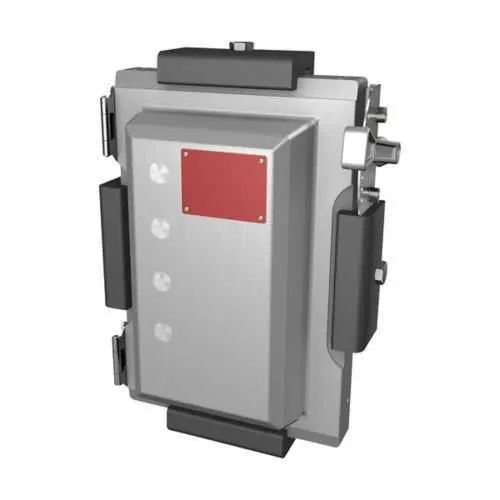

Eaton EBMX1B-W035 Explosionproof Circuit Breaker - ClassI-D1
Part Number: EBMX1B-W035
Quick Summary
Eaton EBMX1B-W035 is an explosionproof circuit breaker designed for hazardous-location control panels and enclosures in industrial plants. Facilities struggle to maintain safety and regulatory compliance while minimizing downtime and costly maintenance in harsh environments. This model is NEC/CEC compliant and rated for Class I Division 1 and Zone 1 locations, with additional classifications for Division 2, Zone 2, Class II, and Class III locations, plus UL certification for hazardous environments. The copper-free aluminum enclosure and 600 VAC rating deliver rugged protection while simplifying field installation. By combining reliable protection with a manageable footprint, it enables safer, code-compliant operations and reduced lifecycle costs for critical process equipment.
Product Information
Extended Description
EBMX1B-W035 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 1 enclosure, 35A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX1B-W035
UPC
662276605787
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 1
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
35 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers UL certification
Clamped EBMXB Explosionproof Circuit Breakers UL certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX1B-W035
Feature: Copper-free aluminum enclosure with Size 1 housing improves mechanical robustness without excessive weight. Business Impact: Easier handling, lower structural load, and safer installation in confined spaces. Application: Hazardous-location control panels in chemical plants and oil & gas facilities. Feature: Clamped enclosure cover construction enables rapid service access. Business Impact: Reduces maintenance time and exposure during inspections. Application: Frequent circuit checks and part swaps in hazardous environments. Feature: Three-pole design with 35 AIC interrupt rating and 600 VAC capability. Business Impact: Superior fault isolation and compatibility with standard power distributions, lowering arc-flash risk. Application: Large-motor and continuous-process line protection in hazardous areas. Feature: NEC/CEC compliance and UL certifications for Class I Division 1/2 and Zone 1/2, plus NEMA ratings 3R 4X 7 9. Business Impact: Simplified regulatory approvals and installation approvals across global sites. Application: Global projects requiring certified equipment for hazardous locations. Feature: Size 1 enclosure with rated 22.11 in length, 12.86 in height, and 15.98 in width and 80 lb weight. Business Impact: Predictable footprint for retrofits and new builds, aiding procurement planning. Application: Factory floors and switchgear rooms with space constraints. Feature: Replacement parts and engineering resources like SP3D models and literature from Eaton. Business Impact: Accelerates design validation and reduces downtime during upgrades. Application: CAD-based design workflows and spare-part planning for EBMXB series.
Get a Quick Quote for a Eaton EBMX1B-W035
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX1B-W035?
Enquire Now
FAQs
EBMX1B-W035 uses a Size 1, copper-free aluminum enclosure with a clamped cover and three-pole construction, designed to fit standard hazardous-location panels. Its 22.11 in length, 12.86 in height, and 15.98 in width provide a predictable footprint, while the 80 lb weight informs handling and rigging considerations. This makes retrofits and new installations straightforward in environments requiring Class I Division 1/2 and Zone 1/2 compliance.
The EBMX1B-W035 is rated for Class I Division 1 and Zone 1, with additional classifications for Division 2 and Zone 2, along with Class II and III locations. It carries NEC/CEC standards and UL certifications for hazardous environments, and its NEMA ratings of 3R 4X 7 9 reinforce protection against moisture, corrosion, and impact. This combination ensures code-compliant installations in demanding industrial settings.
A 600 VAC nominal rating supports direct integration with common industrial distribution schemes, while the 35 AIC interrupt rating ensures rapid arc quenching under fault conditions. Together they minimize arc damage and equipment downtime, enabling safer switching of motors and non-linear loads in hazardous areas. This combination is essential for protecting both personnel and critical process equipment in challenging environments.
Clamped enclosure covers simplify field assembly and maintenance, reducing the number of fasteners and alignment steps during installation. The clamped design also supports reliable sealing in hazardous locations, helping maintain enclosure integrity against dust and moisture. For technicians, this translates into faster commissioning and easier part replacement without compromising safety.
The copper-free aluminum enclosure reduces weight and corrosion concerns, while the availability of replacement parts lists and SP3D design packages from Eaton supports proactive maintenance and design optimization. The combination of robust certification, durable materials, and accessible support resources lowers total cost of ownership by decreasing downtime, simplifying regulatory compliance, and extending service intervals in demanding plants.
