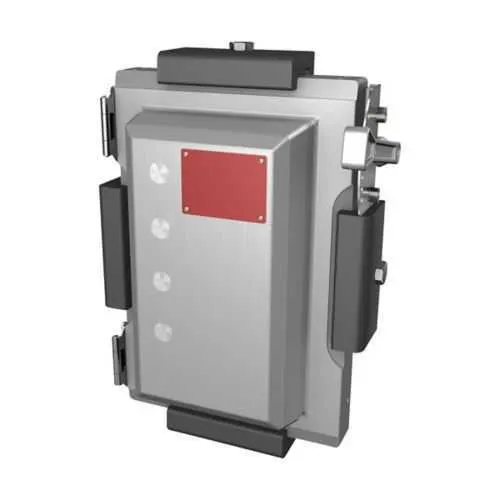

Eaton EBMX1B-W040 Clamped EBMXB Explosionproof Circuit Breaker - Hazardous Locations
Part Number: EBMX1B-W040
Quick Summary
Eaton EBMX1B-W040 is a clamped EBMXB circuit breaker for hazardous locations, delivering reliable overcurrent protection in rugged, space-conscious enclosures. In challenging environments, downtime and maintenance complexity can erode uptime; this unit mitigates risk with a copper-free aluminum enclosure and a proven explosionproof design. It carries NEC/CEC compliance with Class I Division 1 and Zone 1 ratings, plus NEMA protection to handle weather and chemical exposure. With a 600 V rating and three-pole operation, it integrates smoothly with standard EBMXB systems, offering straightforward installation and long-term value for lighting and emergency systems in demanding industrial settings.
Product Information
Extended Description
EBMX1B-W040 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 1 enclosure, 40A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX1B-W040
UPC
662276605794
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 1
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
40 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
IF 1149 - Wiring
IF 1149 - Wiring
IF 1149 - Wiring
Eaton Specification Sheet - EBMX1B-W040
Copper-free aluminum enclosure and clamped cover reduce corrosion risk and weight, accelerating install and service while improving lifecycle costs in coastal or chemically harsh environments. Hazardous locations certification, including Class I Division 1 and Zone 1 with NEC/CEC adherence, supports regulatory compliance and risk reduction in oil, gas, and chemical processing facilities. A 600 VAC rating and 40 AIC interrupt capability deliver fast, reliable disconnection for feeders and critical circuits, minimizing arc exposure and shutdown time. Size 1 enclosure dimensions (22.11 in L x 12.86 in H x 15.98 in W) enable straightforward retrofits and panel compatibility, reducing engineering time and field modification. NEMA ratings of 3R and 4X provide environmental protection for outdoor and corrosive environments, expanding placement options. Access to SP3D design packages, catalogs, and IF 1149 installation instructions shortens design cycles and simplifies procurement.
Get a Quick Quote for a Eaton EBMX1B-W040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX1B-W040?
Enquire Now
FAQs
Follow the installation guidance found in the SP3D design package and IF 1149 wiring sheets. Use the clamped enclosure as specified, confirm a Size 1 footprint, verify 600 VAC rating, and mount the three-pole device in accordance with Class I Division 1/Zone 1 requirements to ensure safe, compliant operation in hazardous locations.
The unit is rated for 600 VAC with a 40 AIC interrupt rating and features a three-pole configuration in a Size 1 enclosure. It uses a copper-free aluminum enclosure and weighs 80 lb, with dimensions of 22.11 in length, 12.86 in height, and 15.98 in width, making it suitable for demanding feeder protection in hazardous environments.
Yes. EBMX1B-W040 is designed for hazardous locations and carries NEC/CEC performance with Class I, Division 1 and Zone 1 ratings, along with additional protection for Class II and III as applicable. It is intended for oil, gas, chemical processing, and other environments where flammable atmospheres must be safely contained.
This product supports NEC/CEC standards for hazardous locations, with Class I Division 1 and Zone 1 ratings and NEMA 3R 4X protection. Canadian certifications are documented through UL listings, and the overall package aligns with industrial safety and environmental protection requirements for hazardous-area equipment.
Automation teams can access SP3D design packages, installation instructions (IF 1149), brochures, catalogs, and the Eaton specification sheet. These resources streamline modeling, wiring diagrams, and procurement, reducing design cycles and helping ensure correct component selection for hazardous-location installations.
