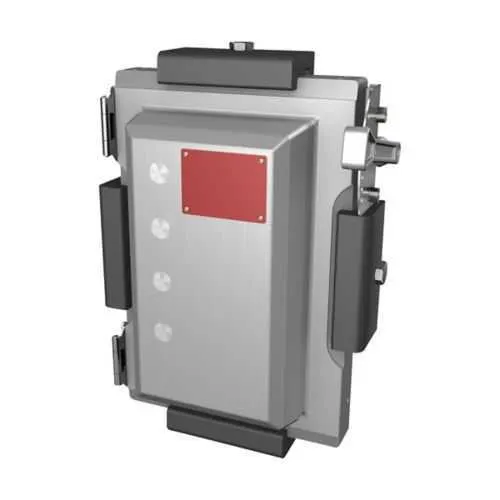

Eaton EBMX1B-W050 Breaker - Hazardous Locations
Part Number: EBMX1B-W050
Quick Summary
EBMX1B-W050 is an explosionproof breaker designed for hazardous-location electrical distribution in industrial facilities. This unit helps prevent unplanned downtime when servicing equipment in potentially explosive environments by delivering robust protection without compromising accessibility. It carries NEC/CEC compliance along with hazardous-area ratings and well-established NEMA performance (3R, 4X, 7, 9) to support diverse installations. With a Size 1 copper-free aluminum enclosure and a three-pole, 50 AIC-rated design for 600 VAC circuits, it delivers reliable operation while simplifying procurement, installation, and ongoing maintenance for plant engineers and procurement teams seeking regulatory assurance and total lifecycle value.
Product Information
Extended Description
EBMX1B-W050 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 1 enclosure, 50A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX1B-W050
UPC
662276605817
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 1
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
50 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX1B-W050
Feature: Copper-free aluminum enclosure provides corrosion resistance and lighter weight, improving handling and long-term durability. Business impact: Lower maintenance costs and easier retrofits in harsh environments. Application: Marine, chemical, and outdoor facilities where exposure to corrosive atmospheres is common. Feature: Size 1 enclosure with clamped cover for quick access and secure sealing. Business impact: Faster installation, reduced labor time, and improved enclosure integrity in confined spaces. Application: Control panels and distribution enclosures in compact footprints. Feature: Three-pole, 50 AIC, 600 VAC ratings deliver robust power protection for motors and feeders. Business impact: Enhanced safety margins and protection against short circuits, reducing compressor and pump downtime. Application: Heavy machinery circuits in hazardous locations. Feature: NEC/CEC compliance and hazardous/classified location ratings with NEMA 3R 4X 7 9. Business impact: Regulatory acceptance across industries, simplified audits, and improved supplier qualification. Application: Any industrial plant requiring proven hazardous-location certification. Feature: Clamped EBMXB design aligns with standardized installation practices and compatible with spares and replacement parts lists. Business impact: Streamlined maintenance planning and parts availability, lowering lifecycle costs. Application: Field upgrades and maintenance programs with consistent Eaton parts lineage.
Get a Quick Quote for a Eaton EBMX1B-W050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX1B-W050?
Enquire Now
FAQs
Installation requires a Size 1 clamped enclosure designed for hazardous locations, with copper-free aluminum construction and a three-pole configuration. Verify the enclosure is rated for NEC/CEC and Zone/Class classifications, confirm 600 VAC voltage, and ensure the 50 AIC interrupt rating matches your protection scheme. The clamped cover simplifies access for routine maintenance while preserving enclosure integrity in demanding environments.
The EBMX1B-W050 provides 600 VAC voltage rating and a 50 AIC interrupt rating, arranged in a three-pole configuration. This combination supports robust protection for high-power circuits such as motors and feeders in hazardous locations. The design aligns with NEC/CEC requirements, ensuring reliable performance, safe disconnection, and compliance during audits and inspections.
Yes. It is well suited for industries facing hazardous-location challenges such as oil & gas, chemical processing, mining, and heavy manufacturing. Its explosionproof clamped EBMXB design, Size 1 enclosure, and 600 VAC rating enable safe power distribution for critical equipment, while NEC/CEC compliance and NEMA ratings support cross-industry adoption and regulatory acceptance.
The EBMX1B-W050 carries NEC/CEC compliance with hazardous-area ratings (Class I, Division 1 & 2; Zone 1 & 2) and Class II/III listings, along with NEMA ratings 3R, 4X, 7, and 9. Its area classification is Hazardous/Classified Locations, and the enclosure uses copper-free aluminum for corrosion resistance. These certifications support regulatory acceptance and safe operation in demanding environments.
The breaker’s durable copper-free aluminum construction, rugged enclosure, and standardized EBMXB design reduce replacement frequency and spare-part requirements. Its 22.11 in length, 12.86 in height, and 15.98 in width fit typical control cabinets, simplifying stocking of common sizes. Accessory documentation, parts lists, and installation sheets from Eaton support predictable maintenance, aiding budgeting and uptime commitments.
