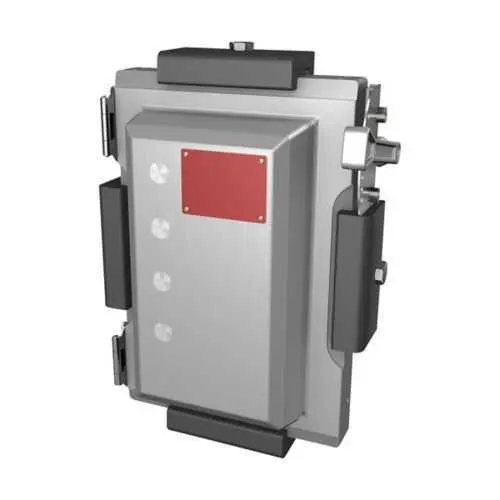

Eaton EBMX1B-W060 Explosionproof Circuit Breaker - Hazardous
Part Number: EBMX1B-W060
Quick Summary
The Eaton EBMX1B-W060 explosionproof circuit breaker protects electrical systems in hazardous industrial locations. Operators struggle with maintaining uptime while meeting strict safety codes in Class I/II locations, especially under challenging ambient conditions and space constraints. This model delivers NEC/CEC compliance, UL listings, and NEMA ratings to support safe operation in hazardous environments. The copper-free aluminum enclosure, clamped cover, and Size 1 footprint streamline installation and reduce lifecycle maintenance, delivering reliability in compact spaces. By aligning with the Crouse-Hinds EBMXB family, it enables scalable protection across motor control centers and remote installations while supporting compliance-driven procurement goals.
Product Information
Extended Description
EBMX1B-W060 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 1 enclosure, 60A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX1B-W060
UPC
662276605824
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 1
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
60 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers UL certification
Clamped EBMXB Explosionproof Circuit Breakers UL certification
IF 1794 - Clamped EBMX Motor Control Series
IF 1794 - Clamped EBMX Motor Control Series
IF 1794 - Clamped EBMX Motor Control Series
Eaton Specification Sheet - EBMX1B-W060
Feature: Copper-free aluminum enclosure provides superior corrosion resistance and lighter weight compared to traditional materials. Business Impact: Reduces long-term maintenance costs and extends service intervals in chemical processing and offshore environments. Application: Ideal for hazardous locations in oil & gas plants and chemical processing facilities.Feature: Three-pole configuration with 60 AIC interrupt rating delivers robust fault current protection at 600 Vac. Business Impact: Improves system safety and minimizes arc flash exposure, aiding compliance with electrical safety standards. Application: Main feeders and motor control circuits in hazardous area panels.Feature: Size 1 enclosure with clamped cover enables compact, quick installation. Business Impact: Cuts installation time and simplifies retrofits in tight spaces, lowering labor costs. Application: Control cabinets and MCCs in offshore platforms and mining sites.Feature: NEMA 3R 4X 7 9 ratings and NEC hazardous ratings (Class I/II/III, Zone 1/2) provide rugged, code-compliant protection. Business Impact: Ensures regulatory clearance and minimizes downtime due to site inspections. Application: Hazardous-location equipment enclosures and remote power distribution.Feature: Enclosure dimensions 22.11 in L × 12.86 in H × 15.98 in W and weight 80 lb balance installation ease with robust protection. Business Impact: Facilitates transport and mounting in constrained spaces while maintaining mechanical integrity. Application: Large enclosure-ready assemblies in industrial plants.Feature: Includes UL-listed components and compatibility with the EBMXB family enhances parts availability and lifecycle support. Business Impact: Reduces spare-part complexity and ensures consistent performance across sites. Application: Global rollouts with standardized explosionproof protection.
Get a Quick Quote for a Eaton EBMX1B-W060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX1B-W060?
Enquire Now
FAQs
EBMX1B-W060 installs in a Size 1 enclosure with a clamped cover, designed for Class I and II hazardous locations. Follow Eaton installation sheets IF 1794 and local codes; plan for mounting in areas with limited space and ensure proper grounding and enclosure sealing to maintain explosionproof integrity.
Key specs include a 60 AIC interrupt rating, 600 Vac voltage rating, and a three-pole configuration. It is rated for hazardous locations and is supplied in a Size 1 enclosure with a copper-free aluminum body, suitable for demanding industrial environments.
Yes, the EBMXB family carries UL certifications for US and Canada, and the NEC hazardous ratings cover Class I Division 1 and Zone 1, among other classifications. This makes it suitable for chemical processing, oil & gas, mining, and other hazardous-location facilities.
The enclosure is copper-free aluminum with a clamped cover, rated to NEMA 3R 4X 7 9. This combination provides rugged protection against environmental exposure and ensures safe operation in outdoor or harsh indoor environments.
The Size 1 clamped enclosure aligns with the EBMXB line for consistent installation in compact spaces. Availability of replacement parts and detailed catalogs (EBMXB series) reduces downtime, while the three-pole, 60 AIC design simplifies maintenance planning and spares stocking.
