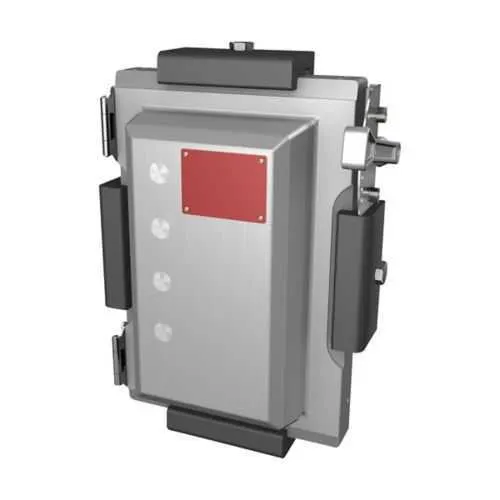

Eaton EBMX1B-W100 Explosionproof Circuit Breaker - Class I
Part Number: EBMX1B-W100
Quick Summary
Eaton EBMX1B-W100 is a clamped explosionproof circuit breaker for hazardous locations in industrial power distribution. Engineers often struggle to source a compliant unit that installs quickly, withstands harsh environments, and remains serviceable over the plant’s lifetime. This model delivers NEC/CEC compliance along with Class I, Division 1 and Zone 1 ratings, and NEMA 3R/4X protection for outdoor or corrosive environments. The copper-free aluminum enclosure reduces weight and corrosion risk while maintaining rugged mechanical integrity. With a 600 Vac rating and three poles, it supports motor starters and power-distribution needs, enabling safer, more reliable installations and lower total cost of ownership.
Product Information
Extended Description
EBMX1B-W100 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 1 enclosure, 100A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX1B-W100
UPC
662276605862
Product Length/Depth
22.11 in
Product Height
12.86 in
Product Width
15.98 in
Product Weight
80 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 1
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
100 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
Clamped EBMX Series Explosionproof Combination Motor Starters Brochure
Clamped EBMX Series Explosionproof Combination Motor Starters Brochure
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX1B-W100
Feature: Clamped enclosure design provides a secure seal and faster field service. Benefit: Reduces installation time and maintenance, improving crew productivity in hazardous locations. Application: Ideal for compact switchgear and cabinet integrations in oil, gas, and chemical facilities. Feature: Copper-free aluminum enclosure delivers corrosion resistance with lighter weight. Benefit: Easier handling on site and extended enclosure life in aggressive environments. Application: Outdoor enclosures and chemical processing plants where corrosion is a concern. Feature: 600 Vac, 100 AIC, three-pole configuration. Benefit: High-performance interrupt protection for demanding feeders and motor circuits, promoting safe shutdowns. Application: Hazardous-area motor control and distribution panels. Feature: NEC/CEC compliance with multiple NEMA ratings (3R 4X 7 9). Benefit: Streamlines regulatory approvals and reduces compliance risk across sites. Application: Projects with strict electrical codes and hazardous-location requirements. Feature: Size 1 enclosure with a 22.11 in depth, 12.86 in height, 15.98 in width and 80 lb weight. Benefit: Predictable fitment and robust protection without overbuilding enclosure space. Application: Retrofit or new installs in limited or controlled environments.
Get a Quick Quote for a Eaton EBMX1B-W100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX1B-W100?
Enquire Now
FAQs
Yes. EBMX1B-W100 is designed for EBMXB system compatibility and ships with a Size 1 enclosure. The clamped enclosure enables straightforward sealing and service access, while the three-pole configuration matches common hazardous-location starter and feeder applications. Mounting typically follows standard enclosure practices for Size 1 housings, with appropriate fasteners and gaskets to maintain the integrity of the explosionproof rating.
The breaker is rated for 600 Vac with a 100 AIC interrupt rating and a three-pole configuration. These specifications support high-demand motor control and robust fault protection in hazardous environments, aligning with NEC/CEC requirements for safety-critical applications.
Designed for Hazardous/Classified Locations, the EBMX1B-W100 carries NEC/CEC standards and Class I Division 1 Zone 1 ratings, along with compatible NEMA ratings. It is suitable for oil and gas, chemical processing, mining, and other environments requiring explosionproof protection for electrical distribution and control circuits.
This model meets NEC/CEC standards and is rated for Hazardous Locations (Class I, Division 1 and Zone 1, as well as Division 2 and Zone 2) with compatible NEMA ratings (3R, 4X, 7, 9). These certifications help streamline approvals and ensure regulatory alignment across multinational sites.
The copper-free aluminum enclosure reduces corrosion risk and weight, improving handling and longevity in tough environments. Clamped construction simplifies field servicing, reducing downtime. Combined with NEC/CEC compliance and rugged NEMA protection, this translates to lower maintenance costs and a lower total cost of ownership over the device’s lifecycle.
