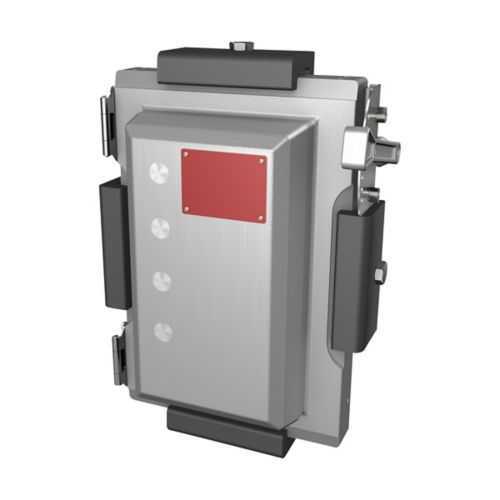

Eaton EBMX2B-W150 Explosionproof Circuit Breaker - Hazardous Locations
Part Number: EBMX2B-W150
Quick Summary
Eaton EBMX2B-W150 is an explosionproof circuit breaker designed for hazardous locations in industrial facilities. In challenging environments, teams strive to maintain safety, regulatory compliance, and uptime without rugged, certified hardware. Key certifications matter here: NEC/CEC compliance, UL safety certification for hazardous locations, and NEMA ratings up to 3R/4X. The EBMX2B-W150’s copper-free aluminum enclosure, three-pole design, and 600 Vac rating help reduce maintenance costs while ensuring reliable protection. Beyond code compliance, this unit integrates with Eaton’s EBMXB line to simplify procurement, installation, and long-term service in hazardous-area systems.
Product Information
Extended Description
EBMX2B-W150 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 2 enclosure, 150A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX2B-W150
UPC
662276605886
Product Length/Depth
32.4 in
Product Height
13.56 in
Product Width
16.28 in
Product Weight
126 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 2
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
150 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers UL certification
Clamped EBMXB Explosionproof Circuit Breakers UL certification
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
IF 1616 - Flange Gasket Replacement Kit
Eaton Specification Sheet - EBMX2B-W150
Copper-free aluminum enclosure provides superior corrosion resistance and long-term durability, reducing maintenance needs in harsh industrial environments. The rugged construction translates to lower downtime and less frequent part replacements in chemical plants, offshore facilities, and refineries. Size 2 enclosure with a clamped cover enables quick access and compatibility with standard mounting footprints, simplifying retrofits and new installations alike, while maintaining a compact yet robust footprint for multi-panel arrangements. The 600 Vac rating with a 150 AIC interrupt capability delivers rapid fault clearance, protecting downstream equipment and enhancing operator safety in high-energy three-phase systems. Area classifications and NEC/CEC compliance, supplemented by UL hazardous-location certification and NEMA ratings (3R 4X 7 9), ensure reliable performance across diverse regulatory environments. Industry-standard documentation and design assistance—SP3D design packages and EBMXB catalogs—support accurate modeling, faster engineering reviews, and smoother procurement. Installation resources, including IF 1616 gasket kits and installation sheets, reduce commissioning time and ensure proper sealing in hazardous areas. The EBMX2B-W150 remains compatible with the broader EBMXB family, offering scalable protection for growing automation and power-distribution systems in challenging sites.
Get a Quick Quote for a Eaton EBMX2B-W150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX2B-W150?
Enquire Now
FAQs
EBMX2B-W150 uses a Size 2 copper-free aluminum enclosure with a clamped cover, designed for Class I Division 1/Zone 1 environments and compatible with standard mounting footprints. For seals and gaskets, refer to IF1616 installation sheets and the IF1616 gasket replacement kit to ensure robust enclosure integrity in hazardous areas. Always verify NEC/CEC applicability and UL certifications during planning.
The unit is three-pole with a 600 Vac voltage rating and a 150 AIC interrupt rating. It occupies a Size 2 enclosure, weighs about 126 lb, with a depth of 32.4 in, height of 13.56 in, and width of 16.28 in. It ships as an enclosure with the circuit breaker included, supporting heavy-duty three-phase distribution in hazardous locations.
Yes. The product is rated for Hazardous/Classified Locations (Class I, Division 1/2; Zone 1/2; Class II, Division 1/2; Class III) and carries NEC/CEC compliance. It also aligns with NEMA ratings 3R 4X 7 9 and UL certifications for hazardous locations, ensuring code-compliant installation across North America.
Copper-free aluminum enclosure resists corrosion, extending service life in harsh environments. The clamped enclosure enables quick access for inspections and replacements, while the three-pole design supports reliable three-phase protection. Accessory resources like the EBMXB catalog, 3D SP3D files, and replacement parts lists streamline maintenance planning and reduce downtime during repairs or upgrades.
Official assets include the SP3D design package for clamped EBMXB, the EBMX replacement parts list, the clamped EBMXB catalog page, UL certification pages, and installation instruction sheets (IF 1616). The Eaton spec sheet for EBMX2B-W150 provides consolidated technical data and installation guidance to support engineering reviews and procurement needs.
