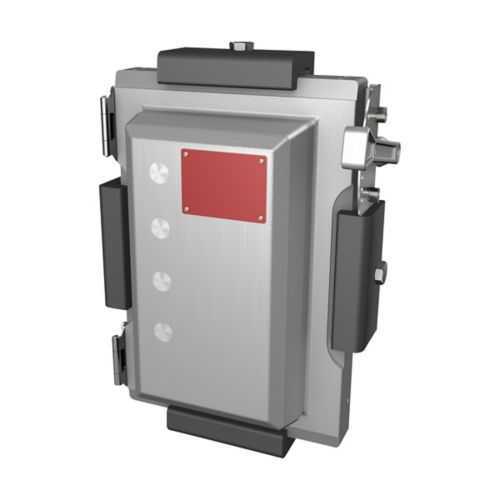

Eaton EBMX2B-W200 Explosionproof Circuit Breaker - Hazardous Locations
Part Number: EBMX2B-W200
Quick Summary
Eaton EBMX2B-W200 is an explosionproof circuit breaker designed for hazardous-location electrical enclosures. Faced with safety mandates and uptime pressures, facilities need reliable protection that’s easy to certify and install. This unit carries NEC/CEC compliance and hazardous-location ratings including Class I Division 1 and Zone 1, with additional Class I Division 2 and Zone 2 capabilities and NEMA 3R/4X protection. Coupled with a copper-free aluminum enclosure, 200 AIC interrupt rating, and a Size 2 footprint, it supports scalable, code-compliant protection. Ideal for mining, chemical processing, and oil/gas facilities, it integrates with Crouse-Hinds EBMXB series components for streamlined procurement and field deployment.
Product Information
Extended Description
EBMX2B-W200 Eaton: Eaton Crouse-Hinds series clamped EBMXB circuit breaker, Copper-free aluminum, Size 2 enclosure, 200A, Eaton breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series clamped EBMXB circuit breaker
Catalog Number
EBMX2B-W200
UPC
662276604216
Product Length/Depth
32.4 in
Product Height
13.56 in
Product Width
16.28 in
Product Weight
120 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3R 4X 7 9
Enclosure cover construction
Clamped
Enclosure size
Size 2
Enclosure
With circuit breaker
Manufacturer
Eaton
Voltage rating
600 Vac
Interrupt rating
200 AIC
Number of poles
Three-pole
Enclosure material
Copper-free aluminum
SP3D Design Package - Clamped EBMXB Explosionproof Circuit Breakers
EBMX Replacement Parts List
EBMX Replacement Parts List
Clamped EBMXB Series Explosionproof Circuit Breakers catalog page
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
Clamped EBMXB Explosionproof Circuit Breakers Canadian certification
IF 1149 - Wiring
IF 1149 - Wiring
IF 1149 - Wiring
Explosionproof clamped EBMXB design provides robust protection in hazardous atmospheres. This design reduces ignition risk and supports rapid, field-verified installations, delivering consistent uptime in demanding environments. It's well-suited for electrical panels in mining, oil & gas, and chemical processing facilities where code compliance is non-negotiable. Copper-free aluminum enclosure offers corrosion resistance and lighter handling for easier installation in tough environments, while maintaining structural integrity and long-term reliability. The three-pole 200 AIC device, rated at 600 Vac, delivers precise fault interruption and compatibility with compact Size 2 panels, enabling safer, more efficient layouts. NEC/CEC compliance paired with Class I Division 1/2 and Zone 1/2 ratings, plus NEMA 3R/4X, provides regulatory confidence for global operations. EBMXB compatibility and available resources—such as design packages and wiring instructions—reduce engineering time and ensure consistent field performance. Finally, the rugged enclosure and modular components support standardized procurement across sites, lowering spare-parts inventory and maintenance costs.
Get a Quick Quote for a Eaton EBMX2B-W200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBMX2B-W200?
Enquire Now
FAQs
The EBMX2B-W200 uses a clamped enclosure designed for Size 2 footprints, with a three-pole configuration and 600 Vac rating. Follow the IF 1149 wiring guidelines and assembly instructions to ensure proper gland seals, grounding, and secure mounting. Utilize the provided installation drawings and 3D design packages to verify clearances and compliance before energizing.
It complies with NEC/CEC standards and offers hazardous-location ratings including Class I Division 1 and Zone 1, along with Division 2 and Zone 2. It also carries NEMA ratings 3R and 4X, addressing weather, corrosion, and mechanical durability for harsh environments.
The unit is a 200 AIC interrupt-rated, three-pole breaker rated for 600 Vac operation. It is housed in a Size 2 enclosure made from copper-free aluminum and weighs about 120 lb, suitable for demanding hazardous-location panels while maintaining serviceability.
Yes. EBMX2B-W200 is part of the Clamped EBMXB family and is designed to integrate with EBMXB series explosionproof breakers and enclosures, enabling streamlined panel design and standardized field assemblies.
Useful resources include the SP3D Design Package for Clamped EBMXB explosionproof breakers, the EBMX replacement parts list, catalog pages for the EBMXB series, and installation sheets like IF 1149. These assets help with wiring diagrams, spare parts planning, and installation guidance.
