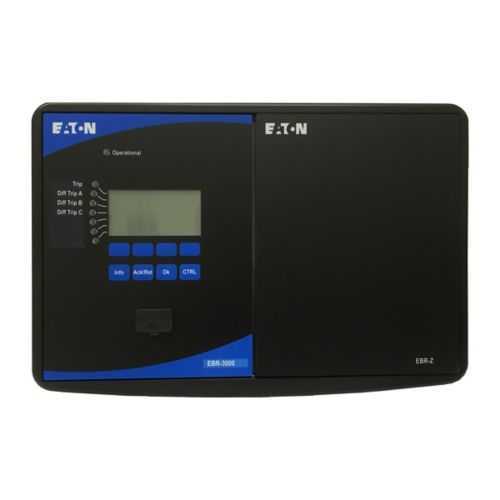

Eaton EBR-3Z-2B0GB0-B Bus differential relay - Modbus RTU
Part Number: EBR-3Z-2B0GB0-B
Quick Summary
The Eaton Bus differential relay protects feeders by detecting differential current and isolating faults in distribution systems. Engineers often contend with nuisance trips and lengthy fault localization that erodes uptime and drives maintenance costs. Compliance status, including CE, SIL, and IP ratings, should be confirmed with Eaton. Built for feeder protection, it supports Modbus RTU and DNP3.0 RTU for streamlined integration. This makes it ideal for industrial facilities seeking reliable protection and easy field upgrades across a wide voltage range. With eight digital inputs and six digital outputs, and a single current sensing input, it consolidates protection, control, and diagnostics in a compact package. The device operates from 19-300 VDC or 40-250 VAC, enabling flexible integration into existing plant power rails without redesign.
Product Information
Extended Description
EBR-3Z-2B0GB0-B Eaton: Eaton, Bus differential relay, EBR-3000, 40-250 Vac, 19-300 Vdc, Bus relay, Modbus RTU + DNP3.0 RTU, 40-250 Vac, 19-300 Vdc, 8, 6,Feeder19-300Vdc, 40-250Vac, 10 W / 17 VA, 5 A ac / dc, 50/60 Hz, Standard mount, -20° to 60°C
Product Name
Eaton Bus differential relay
Catalog Number
EBR-3Z-2B0GB0-B
UPC
786679194959
Product Length/Depth
7.49 in
Product Height
8.62 in
Product Width
13.64 in
Product Weight
12.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Application
Feeder
Type
Bus differential relay
Product Category
Bus relay
Analog inputs
0
Analog outputs
0
Base relay
EBR-3000
Burden
10 W / 17 VA
Conformal coating
Conformal Coated Circuit Boards
Communication
Modbus RTU + DNP3.0 RTU (RS485 / D-SUB interface)
Current sensing inputs
1
Digital inputs
8
Digital outputs
6
Zone selective interlocking
0
Number of inputs
8
Number of outputs
6
Power supply range
19-300Vdc, 40-250Vac
Power consumption
40-250 Vac, 19-300 Vdc
Power supply
40-250 Vac, 19-300 Vdc
Frequency rating
50/60 Hz
Mounting method
Standard
Terminals
Removable
Contact Rating
5 A ac / dc
Operating temperature
-20° to 60°C
Voltage sensing inputs
0
Feature: Wide power supply range 19-300 Vdc / 40-250 Vac with a 10 W / 17 VA burden. Business Impact: Enables operation across diverse site conditions and reduces additional power conversion equipment. Application: Feeder protection in plants where voltage can vary between sources or across sections. Long-tail keywords: industrial feeder protection, versatile power supply, low burden devices. Feature: Eight digital inputs, six digital outputs, and one current sensing input. Business Impact: Consolidates protection and control, minimizes wiring, and shortens commissioning time. Application: Coordinated protection schemes for feeders and bus sections. Long-tail keywords: digital I/O, integrated control, compact protection modules. Feature: Modbus RTU + DNP3.0 RTU communications over RS485 / D-SUB. Business Impact: Simplifies SCADA integration, enables remote diagnostics, and reduces engineering effort. Application: Substation and plant-wide protection with standardized communication. Long-tail keywords: Modbus RTU, DNP3.0 RTU, RS485 interface. Feature: Removable terminals, standard mounting, and conformal coating. Business Impact: Easier installation, reliable field wiring, and durability in harsh environments. Application: Industrial environments with dust, moisture, or temperature variation. Long-tail keywords: standard mount, removable terminals, conformal coating. Feature: 5 A contact rating, 50/60 Hz, wide operating temperature -20°C to 60°C. Business Impact: Direct control capability and robust performance across typical plant conditions. Application: Feeder protection and control in manufacturing and distribution facilities. Long-tail keywords: contact rating, industrial temperature range, feeder relay. Feature: Base relay compatibility with EBR-3000 and compact footprint. Business Impact: Smooth upgrades and scalable protection with familiar Eaton architecture. Application: Modular protection schemes in plant substations. Long-tail keywords: EBR-3000 base relay, bus differential protection, modular protection. Feature: Compliance status requires confirmation with Eaton. Business Impact: Ensures correct regulatory alignment for CE/SIL/IP as applicable to your project. Application: Projects with strict conformity requirements and site-specific standards. Long-tail keywords: CE certification, SIL, IP ratings.
Get a Quick Quote for a Eaton EBR-3Z-2B0GB0-B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBR-3Z-2B0GB0-B?
Enquire Now
FAQs
The EBR-3Z-2B0GB0-B uses standard mounting with removable terminals, allowing straightforward wiring. It supports eight digital inputs, six digital outputs, and a single current sensing input, all within its 13.64 in by 8.62 in by 7.49 in footprint. It can be wired for 19-300 Vdc or 40-250 Vac power, and communicates via Modbus RTU and DNP3.0 RTU over RS485/D-SUB, enabling easy integration into existing control architectures.
Key specifications include a 5 A contact rating (AC/DC), power supply range of 19-300 Vdc / 40-250 Vac, 50/60 Hz operation, and a burden of 10 W / 17 VA. It provides 8 digital inputs, 6 digital outputs, and 1 current sensing input, with -20°C to 60°C operating temperature. This combination supports reliable feeder protection in variable industrial environments.
Yes. The EBR-3Z-2B0GB0-B includes Modbus RTU and DNP3.0 RTU communication via RS485 / D-SUB interface. This enables seamless integration with SCADA systems, easy remote diagnostics, and straightforward upgrade paths for automation projects, reducing wiring complexity and engineering effort during commissioning.
Compliances are listed as 'Contact Manufacturer' for this model. To ensure regulatory alignment for your installation, verify with Eaton whether CE, SIL, and IP ratings apply to your application and environment. This is especially important for harsh industrial settings and mission-critical feeder protection deployments.
The relay reduces nuisance trips and speeds fault localization, leading to higher uptime and lower maintenance costs. Its integrated 8 DI / 6 DO I/O, compact footprint, and conformal-coated circuitry minimize wiring and field repair needs, while standard mounting and removable terminals shorten commissioning time and simplify future upgrades for growing automation schemes.
