Eaton EBR-3Z-2B0LA0-B Bus differential relay - High Impedance
Part Number: EBR-3Z-2B0LA0-B
Quick Summary
The Eaton Bus differential relay is designed to protect medium- and large-scale switchgear by detecting differential current in feeder buses. Engineers often contend with nuisance trips and slow fault isolation that erode uptime and drive maintenance costs. Certification readiness varies by market; CE and SIL readiness are common expectations, but exact certifications for this model should be confirmed with Eaton. This unit supports 50/60 Hz operation and standard mounting, delivering robust high-impedance protection with MODBUS/DNP3 communications for remote monitoring. By combining proven electrical performance with straightforward installation, it helps asset-intensive facilities reduce outage duration, improve fault diagnostics, and lower lifecycle costs.
Product Information
Extended Description

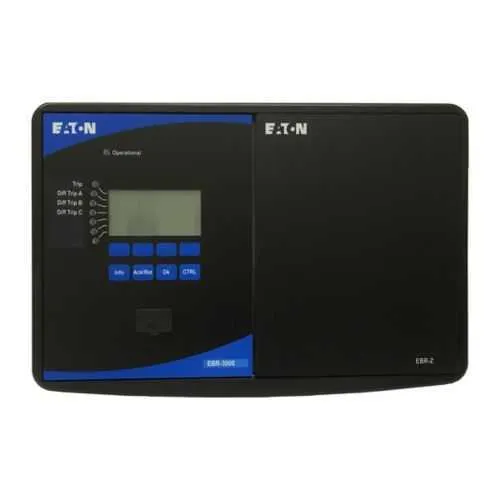

EBR-3Z-2B0LA0-B Eaton: Eaton, Bus differential relay , 3000 High Impedance Bus Differential Relay and EBR-Z High Impedance Module in common bezel, MODBUS/DNP3 (FO LC), Standard Mount, 10.4kJ
Product Name
Eaton Bus differential relay
Catalog Number
EBR-3Z-2B0LA0-B
UPC
786679195871
Product Length/Depth
7.49 in
Product Height
8.62 in
Product Width
13.64 in
Product Weight
12.7 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Type
Bus differential relay
Burden
10 W / 17 VA
Frequency rating
50/60 Hz
Mounting method
Standard
Contact Rating
5 A ac / dc
Operating temperature
-20° to 60°C
Feature: High-impedance protection provides accurate differential detection while remaining resistant to external fault currents. Business Impact: Reduces nuisance trips and enhances selectivity in complex bus configurations. Application: Ideal for feeder protection in switchgear and distribution panels where clean isolation is critical. Feature: MODBUS/DNP3 (FO LC) communications enables remote monitoring and integration with existing SCADA. Business Impact: Improves visibility, accelerates fault location, and lowers on-site inspection time. Application: Data centers and industrial facilities seeking centralized protection analytics. Feature: Standard mounting and compact form factor streamline installation and retrofits. Business Impact: Cuts commissioning time and minimizes panel modifications. Application: Modernization projects and new builds with tight installation schedules. Feature: Electrical ratings including 5 A contact current, 50/60 Hz operation, and a 10 W / 17 VA burden. Business Impact: Predictable device behavior under load, reduced wiring complexity, and stable system dynamics. Application: Feeder protections in power distribution units and switchgear housings. Feature: Wide operating temperature range (-20° to 60°C) supports harsh environments. Business Impact: Ensures reliability in outdoor or industrial spaces with variable climates. Application: Outdoor substations and factory floors. Feature: One-year warranty with standard Eaton support channels. Business Impact: Lower total cost of ownership through predictable service and parts availability. Application: Procurement planning and long-term maintenance strategies.
Get a Quick Quote for a Eaton EBR-3Z-2B0LA0-B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBR-3Z-2B0LA0-B?
Enquire Now
FAQs
The EBR-3Z-2B0LA0-B uses standard mounting suitable for common switchgear enclosures. This simplifies retrofits by aligning with existing frames and mounting holes, reducing panel modification needs and speeding up the installation process.
This relay features 5 A contact rating (AC/DC), operates at 50/60 Hz, and presents a burden of 10 W / 17 VA. Its operating temperature range is -20°C to 60°C, making it suitable for many industrial environments while maintaining stable switching performance.
High impedance protection improves differential fault detection without relying on large current, reducing nuisance trips and enhancing selectivity in multi-bus configurations. This leads to faster fault isolation and greater system stability in feeders and switchgear assemblies.
Yes. The relay supports MODBUS and DNP3 over fiber optic links (FO LC), allowing seamless integration with existing SCADA and automation networks for remote monitoring, diagnostics, and coordinated protection strategies.
Ideal for feeder protection in distribution panels and switchgear within data centers, manufacturing, and utilities. The benefits include reduced outage duration, improved fault diagnostics, and simpler installation, contributing to lower maintenance costs and faster system restoration after faults.
