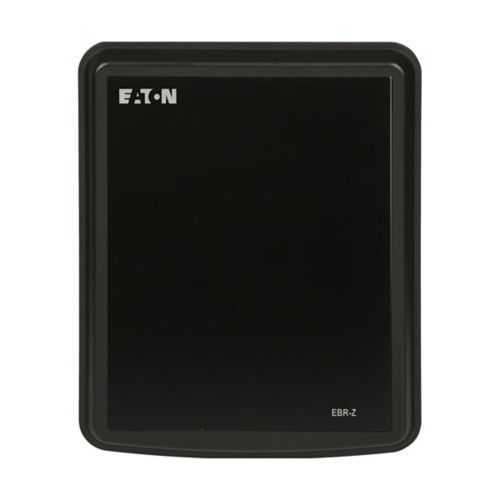

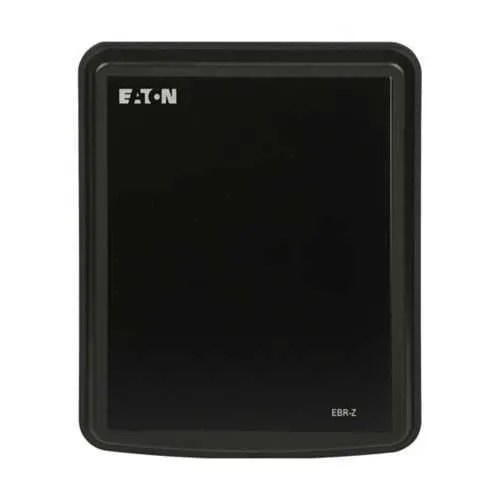

Eaton EBR-Z-2A1 Bus differential relay - Projection Mount
Part Number: EBR-Z-2A1
Quick Summary
Eaton Bus differential relay is designed for high-impedance feeder protection in electrical distribution panels. Engineers often face nuisance trips and slow fault isolation under dynamic fault conditions. Certification details should be confirmed with the manufacturer, with potential considerations for CE, IP ratings, and SIL depending on configuration. In practice, this solution delivers reliable feeder protection with a projection mounting advantage and compatibility with Eaton's EBR-3000 base relay, enabling faster integration into existing protection schemes while reducing panel footprint and lifecycle cost.
Product Information
Extended Description
EBR-Z-2A1 Eaton: Eaton, Bus differential relay-Z High Impedance Module (Requires separately mounted Eaton, Bus differential relay , 3000 relay), 5200 Joule, Projection Mount
Product Name
Eaton Bus differential relay
Catalog Number
EBR-Z-2A1
UPC
786679196014
Product Length/Depth
7.49 in
Product Height
8.62 in
Product Width
6.82 in
Product Weight
7.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Application
Feeder
Type
Bus differential relay
Product Category
Bus relay
Base relay
EBR-3000
Conformal coating
None
Communication
None
Mounting method
Projection panel
Operating temperature
-20° to 60°C
High-impedance protection delivers precise fault discrimination, reducing nuisance trips and improving overall system uptime, which translates to greater machine availability and lower maintenance overhead in feeder protection scenarios. The device carries a 5200 Joules energy rating, providing robust surge resilience that minimizes transient damage during fault events and supports longer equipment life. Projection panel mounting simplifies installation, reduces space requirements, and speeds commissioning in compact switchgear, a value driver for panel builders and installers working in tight enclosures. Compatibility with the EBR-3000 base relay tightens integration with Eaton protection schemes, lowering spare-part complexity and accelerating retrofits or expansions. The operating temperature range of -20°C to 60°C ensures reliable operation across typical industrial environments, while a straightforward warranty and manufacturer support add reassurance for procurement teams seeking predictable total cost of ownership. This combination of protection accuracy, durability, and installation efficiency makes the EBR-Z-2A1 well-suited for feeder protection in manufacturing plants, data centers, and utility-grade panel assemblies.
Get a Quick Quote for a Eaton EBR-Z-2A1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EBR-Z-2A1?
Enquire Now
FAQs
Key installation considerations include projection panel mounting for space efficiency, compatibility with the EBR-3000 base relay, and adhering to the -20°C to 60°C operating range. The unit weighs 7.4 lb and measures 7.49 in (L) x 8.62 in (H) x 6.82 in (W). Ensure proper panel clearance and secure mounting per Eaton guidelines to maintain reliable protection during feeder operation.
The EBR-Z-2A1 provides high-impedance differential protection to accurately isolate faults on feeders, reducing nuisance trips during transient events. With a 5200 Joules energy rating, it offers robust surge absorption, enhancing reliability in harsh electrical environments. It is specifically positioned for feeder protection within electrical distribution panels, helping minimize downtime and improve safety margins.
Yes. The EBR-Z-2A1 is a high-impedance module designed to be used with Eaton’s EBR-3000 base relay. It uses projection panel mounting for straightforward installation and is intended to work as part of Eaton’s bus differential protection scheme, enabling seamless integration with existing Eaton protection architectures.
The device is rated for operation from -20°C to 60°C, covering typical industrial and utility environments. It is specified with none conformal coating and no external communication, simplifying field deployment. Ensure the mounting area remains within spec and environmental conditions do not exceed the stated temperature range to maintain protection performance.
Eaton’s warranty for this product follows policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. For compliance documentation, installation guidance, and spare-part support, contact Eaton or your authorized Eaton distributor to confirm regional terms and service options.
