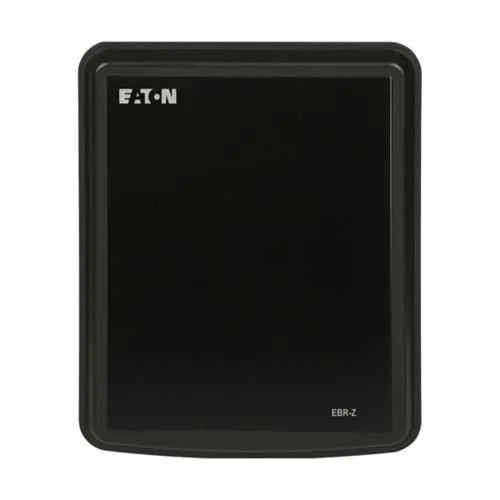

Eaton EBR-Z-2B0 Bus differential relay - High Impedance Module
Part Number: EBR-Z-2B0
Quick Summary
Eaton EBR-Z-2B0 Bus differential relay is a feeder protection device for switchgear. It provides fast, selective protection to minimize damage and downtime in critical feeders. This High Impedance Module helps reduce nuisance trips and improve selective coordination in networks with complex fault currents. The product supports industry-standard safety and performance certifications; confirm CE marking and IP ratings with Eaton for your regional requirements. Engineers value its compact footprint, energy rating, and reliable operation across -20 to 60°C, enabling predictable maintenance and lower total cost of ownership. For procurement, the solution pairs with the EBR-3000 base relay and simplifies field installation in standard mount configurations.
Product Information
Extended Description
EBR-Z-2B0 Eaton: Eaton, Bus differential relay-Z High Impedance Module (Requires separately mounted Eaton, Bus differential relay , 3000 relay), 10400 Joule, Standard Mount
Product Name
Eaton Bus differential relay
Catalog Number
EBR-Z-2B0
UPC
786679195994
Product Length/Depth
7.49 in
Product Height
8.62 in
Product Width
6.82 in
Product Weight
7.4 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
Contact Manufacturer
Application
Feeder
Type
Bus differential relay
Product Category
Bus relay
Base relay
EBR-3000
Conformal coating
None
Communication
None
Mounting method
Standard
Operating temperature
-20° to 60°C
Power Systems Experience Center Tour – Metering Focus
Eaton Specification Sheet - EBR-Z-2B0
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: High Impedance Module delivers selective protection with reduced nuisance trips. Business Impact: maintains fast clearing while avoiding spurious trips in networks with varying fault currents. Application: ideal for feeder protection in critical switchgear where accurate differential sensing improves reliability and reduces unplanned downtime. Feature: Compatibility with the EBR-3000 base relay enables a straightforward upgrade path and simplifies installation. Business Impact: lowers commissioning time and wiring complexity, delivering cost efficiencies in both retrofit and new builds. Application: fits Eaton protection schemes where a standard mount bus relay is required. Feature: 10400 Joule energy rating provides higher fault-energy tolerance. Business Impact: improves fault energy absorption, enhancing protection device endurance and reducing component stress. Application: suitable for heavy industrial feeders and sites with high transient energy. Feature: Standard mounting with a compact footprint (7.49 in L, 8.62 in H, 6.82 in W) and 7.4 lb weight. Business Impact: simplifies panel layout, enables easier retrofits, and supports rapid field installation. Application: ideal for space-constrained switchgear envelopes in control rooms and outdoor enclosures. Feature: Wide operating temperature -20° to 60°C and robust warranty. Business Impact: ensures reliable performance in harsh environments and protects downstream ROI with a clear warranty window. Application: suitable for diverse industrial plants requiring dependable feeder protection.
