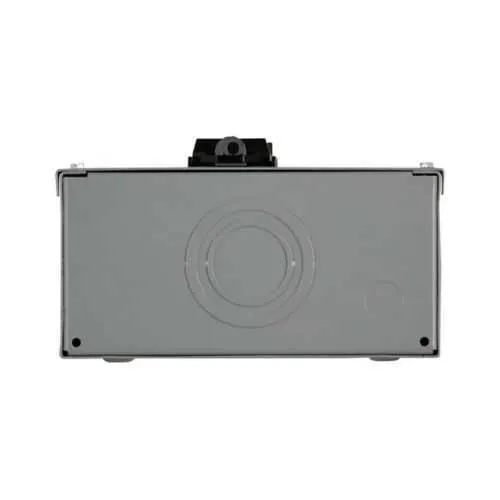

Eaton ECCVH200R Enclosed Breaker - UL 489, CSA 5
Part Number: ECCVH200R
Quick Summary
Eaton ECCVH200R is an enclosed CCV tenant main breaker designed for industrial and commercial power distribution. Operators and engineers often struggle with space constraints, wiring complexity, and ensuring quick, safe isolation during maintenance. UL 489 and CSA Std. C22.2 No. 5 certifications underpin reliability, while a CCV frame and 240 VAC rating support robust protection. In practice, this enables faster installation, easier maintenance, and improved protection for CC circuit breakers in demanding environments. With 200 A capacity and a 25 kAIC interrupt rating, it scales to growing load profiles while keeping a compact footprint for panel builders.
Product Information
Extended Description
ECCVH200R Eaton: Eaton Type CCV Enclosed Circuit Breaker,Enclosed circuit breaker,200 A,25 kAIC,240Vac,#2/0 - 300 kcmil,CCV,CC Circuit breakers,Single- and three-phase
Product Name
Eaton CCV tenant main breaker
Catalog Number
ECCVH200R
UPC
786685934853
Product Length/Depth
25 in
Product Height
5.5 in
Product Width
9.5 in
Product Weight
17 lb
Certifications
UL 489 CSA Std. C22.2 No. 5
Used with
CC Circuit breakers
Type
Enclosed circuit breaker
Amperage Rating
200 A
Voltage rating
240Vac
Circuit breaker frame type
CCV
Interrupt rating
25 kAIC
Wire size
#2 AWG-300 kcmil
Eaton Emergency Disconnect Options at a Glance
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - ECCVH200R
200 A amperage rating with a 25 kAIC interrupt capability delivers fast, reliable fault clearing for primary feeders. This reduces arc flash exposure risk and minimizes downtime during fault events, which is critical for high-load industrial processes. Use in CCV enclosed panels serving motor drives and critical loads in manufacturing plants. Enclosed CCV frame design protects internal components from dust and moisture, simplifying installation in harsh environments and reducing maintenance costs while improving operator safety in switchgear enclosures. The ability to accommodate #2 AWG up to 300 kcmil conductors provides flexibility for large feeders, lowering the need for conductor retraining and enabling faster panel upgrades in evolving facilities. Certifications such as UL 489 and CSA Std. C22.2 No. 5 reassure compliance during audits and code inspections, smoothing procurement and commissioning. The compact 25 in L by 9.5 in W by 5.5 in H footprint and 17 lb weight assist installers with layout planning, allowing easier integration into standard switchgear and electrical closets. This model supports both single- and three-phase configurations, aligning with CC circuit breaker installations across diverse industrial segments and enabling scalable protection as facility loads grow.
Get a Quick Quote for a Eaton ECCVH200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ECCVH200R?
Enquire Now
FAQs
ECCVH200R is designed for CCV frame-compatible enclosed panels and supports standard mounting within industrial switchgear. When mounting, verify enclosure clearance, ensure proper busbar alignment, and follow UL 489 wiring practices for conductor sizing up to 300 kcmil. This minimizes installation time and ensures safe, code-compliant isolation during maintenance.
The 25 kAIC interrupt rating enables rapid interruption of high fault currents, reducing arc exposure and equipment damage during short circuits. For motor drives and feeders in manufacturing lines, this rating helps protect transformers, feeders, and downstream devices, improving overall system reliability and uptime while meeting industry protection standards.
Yes. ECCVH200R is designed to be compatible with CC circuit breakers and supports both single- and three-phase configurations within CCV enclosed panels. This flexibility makes it suitable for a wide range of manufacturing applications, from simple feeder protection to complex multi-phase distribution schemes, reducing the need for multiple breaker families.
ECCVH200R carries UL 489 and CSA Std. C22.2 No. 5 certifications, confirming compliance with recognized electrical safety and performance standards. These certifications simplify code reviews, inspections, and procurement, particularly in North American industrial facilities and projects subject to strict safety requirements.
The enclosed CCV design minimizes exposure to dust and moisture, reducing maintenance frequency and component wear. With durable construction, standard wiring, and straightforward replacement within CCV panels, owners can lower downtime and extend service life. The model’s compatibility with existing CC circuit breakers also minimizes spare part inventories and simplifies future panel upgrades.
