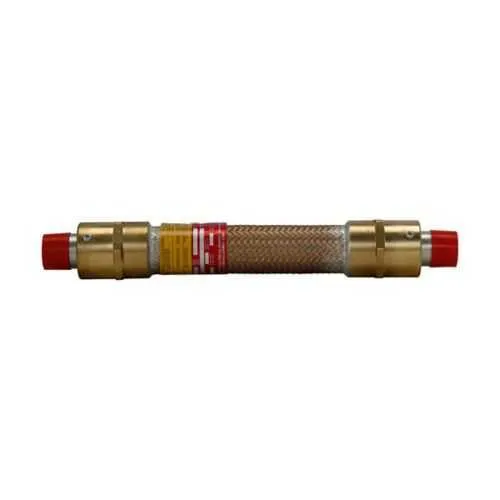

Eaton ECHF26 Flexible Fixture Support - NEC/CEC Rating
Part Number: ECHF26
Quick Summary
Eaton ECHF26 flexible fixture support securely mounts hazardous-location luminaires in industrial facilities. Many installations struggle with rigid, hard-to-adjust mounts that slow commissioning and increase downtime. It is certified for Hazardous/Classified Locations under NEC/CEC, including Class I, Division 1 and 2, plus Class II and III ratings where required. The 6-inch flexible length, pendant mounting, brass construction, and 125 lb luminaire weight rating translate to faster, safer installations and reduced maintenance in demanding environments. Designed for explosion-proof luminaire supports, this solution helps ensure ongoing compliance and reliable illumination in harsh operating conditions.
Product Information
Extended Description
ECHF26 Eaton: Eaton Crouse-Hinds series ECHF flexible fixture support, 6" flexible length, 125 lb, Brass, Pendant mount, 3/4"
Product Name
Eaton Crouse-Hinds series ECHF flexible fixture support
Catalog Number
ECHF26
UPC
782274257709
Product Length/Depth
12.5 in
Product Height
2 in
Product Width
2 in
Product Weight
3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Mounting Type
Pendant
Flexible length
6"
Nipple size
3/4"
Luminaire rated weight
125 lb
Material
Brass
Crouse-Hinds series ECHF Explosionproof Flexible Fixture Supports catalog page
ECHF Explosionproof Flexible Fixture Supports Canadian certification
ECHF Explosionproof Flexible Fixture Supports Canadian certification
IF 556 - ECHF Flexible Support
Eaton Specification Sheet - ECHF26
ECHF26 offers a 6-inch flexible length and pendant mounting that lets technicians position luminaires precisely around obstacles and ductwork. This flexibility reduces field rework, shortens commissioning timelines, and improves overall alignment in overhead installations where space is tight. In practice, contractors appreciate the ability to route illumination fixtures without sacrificing safety or visual alignment in hazardous zones. Brass construction provides rugged durability and corrosion resistance, supporting longer service life in challenging environments. The 125 lb luminaire weight rating ensures confidence when suspending heavier units, while the robust stem and bracket design withstand vibration and impact during maintenance, reducing replacement parts and service calls. The overall dimensions—12.5 inches in length with a compact 2x2 inch profile and a 3/4-inch nipple—facilitate compatibility with standard fittings and space-constrained ceilings, aiding quicker retrofits. NEC/CEC conformance and Hazardous/Classified area classifications, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III ratings, provide regulatory assurance for critical facilities. Installation documentation and technical support, including IF 556 instruction sheets and the ECHF26 specification sheet, streamline mounting, wiring, and testing, improving procurement efficiency and consistency across sites.
Get a Quick Quote for a Eaton ECHF26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ECHF26?
Enquire Now
FAQs
To install ECHF26 in a hazardous-location pendant configuration, verify your area classification (Hazardous/Classified Locations) and confirm Class I/II/III suitability per NEC/CEC. Mount the fixture to a pendant point using a 3/4 inch nipple, align the 6-inch flexible segment, and secure with appropriate clamps. Refer to IF 556 instruction sheet for step-by-step mounting, wiring, and testing procedures to ensure compliant, safe operation.
Key specs for ECHF26 include a 12.5 inch overall length, 2 inch width, 2 inch height, and a 3 lb body weight. It features a 6 inch flexible length, 3/4 inch nipple size, and a 125 lb luminaire weight rating. Constructed from brass, it is designed for pendant mounting and supports hazardous-location applications under NEC/CEC standards.
Yes. ECHF26 is designed for Hazardous/Classified Locations with NEC/CEC compliance, and its hazardous ratings include Class I Division 1 and Division 2, plus Class II Division 1 and 2 and Class III where applicable. This makes it suitable for many demanding industrial sites such as chemical plants, refineries, and offshore facilities requiring explosion-protected fixture supports.
ECHF26 meets NEC/CEC standards and is certified for Hazardous/Classified Locations with area classifications appropriate for Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III environments. This ensures regulatory compliance during audits and supports safer, code-compliant lighting installations in hazardous environments.
You can access installation instructions and datasheets from Eaton’s resources, including the IF 556 instruction sheet and the ECHF26 specification sheet. Catalog pages and UL certification references are also available to support procurement, commissioning, and long-term maintenance planning, enabling faster project delivery and a predictable return on investment.
