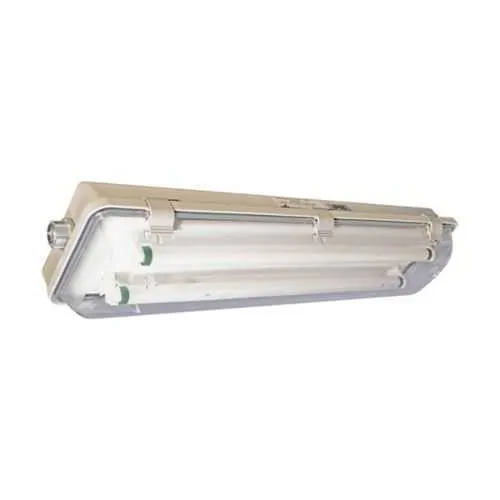

Eaton ED2N42171012L Linear Fluorescent Light Fixture - IP66
Part Number: ED2N42171012L
Quick Summary
ED2N42171012L is a linear fluorescent light fixture built for hazardous and harsh locations in industrial facilities. In demanding environments, unreliable lighting and frequent maintenance drive up downtime and operating costs. This luminaire combines rugged protection with easy serviceability to minimize total cost of ownership. With IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC hazardous location ratings, it meets stringent safety and compliance requirements while delivering dependable illumination. Ceiling-mounted in a 4 ft layout, it operates on 120–277 VAC and ships with lamps installed, supporting quick installation and steady performance across shifts and seasons. For engineers seeking durable, code-compliant lighting that reduces maintenance cycles, this fixture aligns with standard industrial procurement programs and long-term budgeting.
Product Information
Extended Description
ED2N42171012L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture,3/4" Myers conduit hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N42171012L
UPC
662276438712
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
16.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N42171012L
Feature: IP66 ingress protection and NEMA 4X enclosure provide rugged sealing against dust, water jets, and harsh chemicals. Business Impact: Reduces unplanned outages and maintenance in wet, dusty, or offshore environments, improving uptime. Application: Chemical plants, mining facilities, offshore platforms, and other demanding sites. Feature: 4 ft, 2-lamp configuration delivering 32W of power with T8 bi-pin lamps. Business Impact: Higher light output per fixture while maintaining energy efficiency, lowering total operating costs. Application: Warehouse aisles, assembly lines, and general area lighting in industrial settings. Feature: Universal 120–277 VAC, 50/60 Hz operation. Business Impact: Simplifies stocking and reduces wiring complexity across multiple sites, accelerating installation. Application: Global facilities and multi-site plants with varying power infrastructure. Feature: Lamps included as a standard feature. Business Impact: Quick start-up, reduces on-site procurement steps, and minimizes downtime during commissioning. Application: New builds and retrofit projects needing fast deployment. Feature: Polycarbonate lens and fiberglass-reinforced polyester housing with zinc Myers conduit hubs at each end. Business Impact: Enhanced impact resistance, chemical compatibility, and durable wiring access, extending fixture life in tough environments. Application: Enclosures, mezzanines, and ceiling-mounted layouts in industrial plants. Feature: Hazardous/Classified Locations compliance (NEC/CEC) and IP66/NEMA 4X rating. Business Impact: Ensures regulatory compliance and safer operation, reducing risk and potential penalties. Application: Facilities handling hazardous materials, dust, or moisture.
Get a Quick Quote for a Eaton ED2N42171012L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N42171012L?
Enquire Now
FAQs
This fixture is rated IP66 and built in a NEMA 4X enclosure with NEC/CEC hazardous location classifications, including Class I, Division 2, Class II, Division 1, and Class III. Use Myers conduit hubs at each end and ceiling mounting per the installation sheet to maintain integrity and compliance in chemical plants, mines, or offshore environments.
ED2N42171012L operates at 120–277 VAC, 50/60 Hz, with a 32W two-lamp configuration using T8 bi-pin lamps. It is a 4 ft long ceiling-mounted luminaire with lamps included, designed for rapid commissioning and consistent lamp performance across shifts.
Yes. It carries IP66 ingress protection and a NEMA 4X enclosure, making it appropriate for dusty, wet, or wash-down environments. Certifications and compliance include NEC/CEC hazardous location ratings (Class I, Division 2; Class II, Division 1; Class III) and area classifications for hazardous/classified locations.
Lamps are included for quick start-up, and the polycarbonate lens with fiberglass-reinforced polyester housing delivers rugged durability in harsh sites. The robust enclosure and rated protection minimize ingress-related failures, while the 4 ft dual-lamp design provides reliable coverage with fewer fixtures, reducing maintenance visits and downtime.
The ED2N42171012L includes Myers conduit hubs (one entry at each end) for straightforward wiring through 3/4 in entries. For best results, follow Eaton’s LBL1584 installation instructions and use appropriate mounting hardware for ceiling installations in hazardous locations, ensuring wiring pathways remain protected and compliant.
