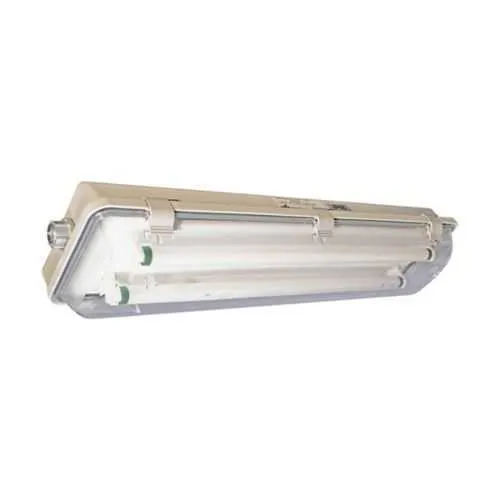

Eaton ED2N42171112L Linear Fluorescent Light Fixture - IP66
Part Number: ED2N42171112L
Quick Summary
Eaton ED2N42171112L linear fluorescent light fixture provides reliable ceiling illumination for hazardous or classified locations. Engineers and maintenance teams often confront fixtures that fail in harsh environments or drift out of compliance, increasing downtime and cost. This luminaire meets essential certifications for hazardous areas and rugged service, including IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC compliance for codes you rely on. Built for wide voltage operation and easy installation, it supports energy-efficient lighting strategies while delivering durability, long service life, and predictable performance across industrial facilities. With included lamps and a standardized 53-inch footprint, it streamlines retrofits and new installs alike, helping facilities reduce maintenance cycles while staying compliant.
Product Information
Extended Description
ED2N42171112L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4",Myers hubs,stainless steel,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N42171112L
UPC
662276704749
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers hubs, stainless steel, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N42171112L
Feature: IP66 ingress protection, NEMA 4X enclosure, and hazardous location area classification provide enhanced safety and reliability in chemical plants, refineries, and offshore environments. Business Impact: Reduces unplanned outages, lowers maintenance costs, and extends service life in harsh settings. Application: Ideal for industrial facilities requiring rugged protection against dust, water jets, and corrosive atmospheres. Feature: 32W, two-lamp, 4 ft length, 120-277 Vac, 50/60 Hz operation offers energy efficiency with robust versatility. Business Impact: Load management simplification and lower operating expenses while maintaining high lumen output. Application: Suitable for general area illumination in warehouses, factories, and maintenance bays. Feature: Lamps included and T8 bi-pin configuration ensure immediate deployment and compatibility with standard ballast-compatible lamps. Business Impact: Accelerates project timelines and reduces inventory costs, especially during retrofits. Application: New installations and speed-to-light upgrades in retrofit programs. Feature: Myer’s hubs at each end (3/4" entry) simplify wiring and enable flexible ceiling layouts. Business Impact: Faster installation, reduced field wiring time, and easier compliance checks. Application: Ceiling-mounted installations in tight or obstructed spaces. Feature: Fiberglass-reinforced polyester housing with a polycarbonate lens delivers long-term durability and impact resistance. Business Impact: Lower replacement risk in forklift traffic and busy plant floors, reducing lifetime ownership costs. Application: Harsh, industrial environments with frequent activity. Feature: NEC/CEC compliance and UL hazardous-area certifications support regulatory adherence and safer operations. Business Impact: Minimizes risk of code violations, simplifies commissioning, and supports enterprise-wide safety programs. Application: Regulated facilities requiring formal certification trails and documented safety standards.
Get a Quick Quote for a Eaton ED2N42171112L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N42171112L?
Enquire Now
FAQs
The ED2N42171112L is designed for ceiling mounting with 3/4 inch Myers hubs at each end, enabling quick wiring in hazardous environments. Its IP66 and NEMA 4X ratings protect against dust, water, and harsh chemicals, while the 53 inch length fits standard industrial ceilings. Ensure power is within 120-277 VAC and follow NEC/CEC guidelines during commissioning.
Yes. The fixture uses a 2-lamp configuration with T8 bi-pin lamps, and lamps are included. It operates on 120-277 VAC with a 50/60 Hz supply, which aligns with common facility electrical systems, simplifying installation and reducing ballast-related compatibility concerns.
The fixture carries NEC hazardous location ratings (Class I, Division 2) and is designed for hazardous/classified locations. Its IP66 protection and UL certification support compliance in demanding environments, helping facilities meet regulatory requirements while maintaining reliable illumination.
The ED2N42171112L conforms to NEC/CEC standards and features UL certification for hazardous, harsh, and marine environments. It also carries IP66 ingress protection and a NEMA 4X enclosure, ensuring reliable operation in challenging industrial, wet, and dusty locations.
Expect reduced maintenance costs due to durable construction and included lamps, faster installations with end-entry wiring, energy savings from a 32W two-lamp design, and improved regulatory compliance through NEC/CEC and UL certifications. These factors translate to lower total cost of ownership and higher facility uptime.
