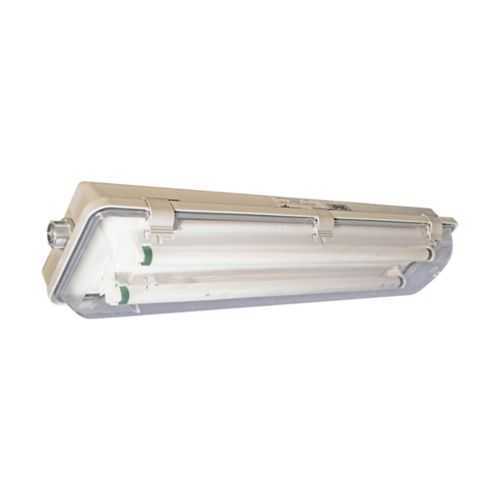

Eaton ED2N42174112 Linear Fluorescent Light Fixture - IP66
Part Number: ED2N42174112
Quick Summary
Eaton ED2N42174112 linear fluorescent light fixture provides reliable illumination for hazardous locations. In demanding industrial environments, moisture, dust, and maintenance downtime threaten uptime. This luminaire meets NEC/CEC requirements, IP66 ingress protection, and NEMA 4X ruggedness, delivering safe operation across classified areas. Its 120–277 VAC input, 32W power, and 4 ft, two-lamp configuration support high-output lighting with minimal energy use. The rugged fiberglass-reinforced polyester housing and stainless steel entry hubs simplify installation and maintenance, while compatibility with cable suspension eye bolts enables flexible mounting in constrained spaces. For procurement teams, the result is improved compliance, reduced maintenance cycles, and predictable illumination for critical workflows.
Product Information
Extended Description
ED2N42174112 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4" Myers hubs,stainless steel,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Cable suspension eye bolts,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N42174112
UPC
662276445949
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
16.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Cable suspension eye bolts
Entry size
3/4"
Entry type
Myers hubs, stainless steel, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Eaton Crouse-Hinds ED2N42174112 3D drawing
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N42174112
Feature: IP66 ingress protection and NEMA 4X rugged housing provide superior dust, water, and corrosion resistance. Business Impact: Reduces unplanned downtime and maintenance costs in harsh environments. Application: Chemical plants, offshore platforms, and mining operations requiring durable hazardous-location lighting. Feature: 53 inch overall length with 4 ft lamp length and dual-end entry with Myers hubs. Business Impact: Facilitates easier installation and service access in tight or restricted ceilings. Application: New builds and retrofits where end-entry routing and robust mounting save installation time. Feature: 120-277 VAC, 50/60 Hz, 32W, two-lamp, T8 bi-pin configuration. Business Impact: Delivers efficient, code-compliant illumination with consistent color and lumen output. Application: General-purpose hazard-area lighting across process lines and work areas. Feature: Fiberglass-reinforced polyester housing and polycarbonate lens. Business Impact: Combines chemical resistance with impact-crack protection, extending service life in demanding locations. Application: Wet, oily, or dusty industrial sites. Feature: Cable suspension eye bolts and stainless steel end entries. Business Impact: Enables flexible mounting and safer maintenance in elevated or constrained spaces. Application: Ceiling or overhead installations with simplified suspension and secure termination.
Get a Quick Quote for a Eaton ED2N42174112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N42174112?
Enquire Now
FAQs
Installers should plan for dual-end entry with stainless steel Myers hubs and cable suspension eye bolts. Secure the fixture to an appropriate support, connect to a 120–277 VAC, 50/60 Hz supply, and verify IP66/NEMA 4X protection before power-up. The ED2N42174112 is designed for safe maintenance in Class I, Division 2, and other hazardous locations, reducing scavenging and rework during commissioning.
The ED2N42174112 operates at 120–277 VAC with a 50/60 Hz frequency rating and consumes 32W while delivering a 2-lamp, T8 bi-pin fluorescent lighting configuration. It supports a 4 ft lamp length and is designed for 53 in overall length, providing reliable illumination across a broad voltage range suitable for industrial facilities.
Yes. The ED2N42174112 carries NEC/CEC compliance and a hazardous-location rating that includes Class I, Division 2, among others. It also features IP66 ingress protection and a NEMA 4X rating, making it suitable for hazardous and classified locations in oil, gas, chemical, and other demanding industrial settings.
Access Eaton’s official resources: specification sheets, installation instruction LBL1584, brochures, and catalogs. Key downloads include the Eaton Specification Sheet for ED2N42174112, the Pauluhn ECOS brochure, and installation sheets. These documents provide wiring diagrams, mounting guidance, and compliance details to support procurement and field installation.
The fixture uses cable suspension eye bolts for mounting and two entry points at each end with Myers hubs (stainless steel). For complete installation, include compatible suspension hardware, secure end entries, and vibration-appropriate fasteners. The rugged housing and lens are designed for repeated maintenance cycles in harsh environments, supporting safer and faster service.
