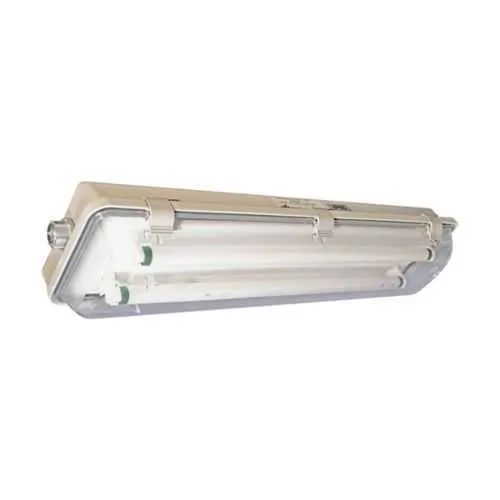

Eaton ED2N42174113SWT Linear Light Fixture - IP66
Part Number: ED2N42174113SWT
Quick Summary
ED2N42174113SWT linear fluorescent light fixture provides safe, durable illumination for hazardous locations across chemical plants and refineries. Maintenance downtime and safety compliance are costly in harsh environments, so robust, code-compliant lighting is essential. This fixture is rated for Hazardous/Classified Locations with NEC/CEC standards, IP66 ingress protection, and a NEMA 4X enclosure, supporting reliable operation in demanding settings. By delivering energy-efficient lighting and flexible installation options, it helps reduce operating costs while ensuring worker safety and regulatory compliance in industrial facilities.
Product Information
Extended Description
ED2N42174113SWT Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4" Myers hubs,316 SS,1 entry each end,4 ft,Polycarb lens,T8 bi-pin,FRP,2-lamp,Internal safety disconnect switch,5-pole term block,Cable suspension eye bolt,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N42174113SWT
UPC
662276375413
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Cable suspension eye bolts
Entry size
3/4"
Entry type
Myers hub, 316 stainless steel, one entry each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Internal safety disconnect switch, 5-pole terminal block
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N42174113SWT
Feature: Hazardous/Classified Location rating and IP66/NEMA 4X enclosure. Business Impact: Ensures regulatory compliance, protects equipment in harsh environments, and reduces risk of unplanned downtime. Application: Oil & gas, chemical processing, and wastewater facilities. The ECOS ED2N series meets stringent safety standards, enabling reliable operation where exposure to dust, water, and corrosive substances is common. Feature: 4 ft lamp length, 2-lamp, 32W configuration. Business Impact: Improves luminance with energy efficiency, lowers total cost of ownership, and simplifies stocking with standard T8 bi-pin lamps. Application: Long-bay lighting across manufacturing floors and outdoor-worthed corridors. Feature: Internal safety disconnect switch and 5-pole terminal block. Business Impact: Eases maintenance while minimizing arc flash exposure and improving service safety. Application: Routine servicing in hazardous zones with fast, safe isolation. Feature: Fiberglass-reinforced polyester housing and polycarbonate lens. Business Impact: Superior chemical resistance and impact durability, reducing replacement cycles. Application: Washdown, outdoor, and corrosive environments. Feature: 316 stainless steel Myers hubs at each end with 3/4" entry and cable suspension eye bolts. Business Impact: Simplifies mounting, enables flexible suspension, and supports up-front installation planning. Application: Remote mounting in rugged plant settings. Feature: 120–277Vac, 50/60Hz operation. Business Impact: Broad electrical compatibility reduces redesign costs and accelerates commissioning. Application: Retrofit projects and new builds across global sites.
Get a Quick Quote for a Eaton ED2N42174113SWT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N42174113SWT?
Enquire Now
FAQs
The ED2N42174113SWT is designed for broad compatibility, operating on 120–277Vac at 50/60Hz and offering end-entry Myers hubs (316 stainless steel) on each end plus 3/4" entry. Mounting is flexible with cable suspension eye bolts, enabling quick integration into new builds or retrofit projects without extensive wiring changes. This reduces installation time and downtime in restricted areas.
This fixture is approved for Hazardous/Classified Locations and carries NEC/CEC standards compliance. It supports Class I, Division 2; Class II, Division 1; and Class III ratings, with a NEMA 4X enclosure and IP66 ingress protection, making it suitable for harsh, washdown, and outdoor environments while meeting stringent industrial codes.
Yes. It includes an internal safety disconnect switch and a 5-pole terminal block, enabling safe isolation during maintenance. The rugged FRP housing and 316 stainless steel hubs withstand repeated service cycles, while the 53 in overall length provides extended coverage with minimal fixture count in large-area installations.
Key installation advantages include Myers hubs at each end for secure entry points, 3/4" entry size for flexible conduit connections, and cable suspension mounting for ceiling or beam integration. The 53" length supports long runs with fewer fixtures, reducing hardware, labor, and potential failure points in industrial spaces with challenging layouts.
With a 32W, 2-lamp configuration and T8 bi-pin lamps, the ED2N42174113SWT delivers efficient illumination with lower energy draw compared with older fixtures. The polycarbonate lens and FRP housing resist corrosion, extending service life in demanding environments and reducing replacement costs. Broad voltage compatibility further lowers lifecycle costs by simplifying procurement and stocking.
