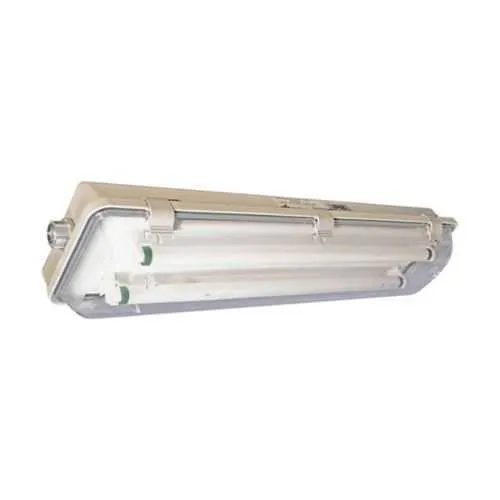

Eaton ED2N4217X012 Linear Fluorescent Light Fixture - IP66 / NEMA 4X
Part Number: ED2N4217X012
Quick Summary
Eaton ED2N4217X012 linear fluorescent light fixture delivers reliable illumination for hazardous and classified locations in industrial facilities. Facilities often face corrosion, dust ingress, and maintenance downtime in harsh environments, making lighting failures costly. This luminaire meets NEC/CEC requirements and hazard-rated classifications including Class I, Division 2; Class II, Division 1; Class III, while offering IP66 ingress protection and a NEMA 4X enclosure for rugged service. With universal 120–277 Vac operation and a 4 ft, 32 W two-lamp design, it reduces inventory variety and supports easier retrofits, enhancing reliability and lifecycle value, and simplifies commissioning across facilities, reducing downtime and total cost.
Product Information
Extended Description
ED2N4217X012 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture,3/4",Myers conduit hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,No mounting style,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N4217X012
UPC
662276503618
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
No mounting style
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Eaton Crouse-Hinds ED2N4217X012 3D drawing
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N4217X012
Feature: Rugged enclosure materials and polycarbonate lens. Business Impact: Superior corrosion resistance and impact durability extend service life in harsh environments, reducing replacement costs. Application: Chemical plants, mining, and offshore facilities benefit from long-lasting illumination that tolerates dust, splash, and chemical exposure. Feature: IP66 and NEMA 4X enclosure with fiberglass-reinforced polyester housing. Business Impact: Protects electrical components from water and dust ingress, ensuring compliant operation in wet or dusty processes and improving uptime. Application: Outdoor sites, wash-down areas, and hazardous-location zones in oil & gas installations. Feature: Hazardous/classified locations rating (NEC/CEC) with Class I, Division 2; Class II, Division 1; Class III. Business Impact: Enables code-compliant installation in risky environments, expanding usable applications and avoiding costly retrofits. Application: Refineries, chemical processing, and mining facilities. Feature: 4 ft, two-lamp, 32 W fluorescent T8 bi-pin configuration. Business Impact: Energy-efficient lighting with a broad luminous footprint reduces energy costs and maintenance frequency. Application: Large warehouses, distribution centers, and manufacturing floors with long runs. Feature: Entry design with 3/4" Myers conduit hubs (one entry at each end). Business Impact: Simplifies wiring and delivers flexible installation in rugged conduit systems, saving installation time. Application: Retrofit projects and new builds with diverse conduit layouts. Feature: Lens material polycarbonate and weight-conscious dimensions (53 in length, 8.5 in width, 5.6 in height, 17 lb). Business Impact: Durable optics with easy handling during mounting and maintenance, minimizing downtime. Application: Any tough industrial environment requiring reliable long-span illumination. Feature: 120–277 Vac, 50/60 Hz operation. Business Impact: Broad mains compatibility reduces inventory of ballast types and simplifies integration with existing electrical systems. Application: Facility-wide retrofits and new installations across varied facility voltages.
Get a Quick Quote for a Eaton ED2N4217X012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N4217X012?
Enquire Now
FAQs
The ED2N4217X012 specifies 'No mounting style' included, so installers typically select a compatible mounting approach using standard supports or other site-specific fixtures. The unit's 3/4" Myers conduit hubs (one entry at each end) provide flexible wiring access for surface or suspended installations with appropriate mounting hardware.
Yes. It is rated for Hazardous/Classified Locations with NEC/CEC compliance, including Class I, Division 2; Class II, Division 1; and Class III, and features IP66 and NEMA 4X enclosure protection, making it appropriate for oil & gas, chemical plants, and other harsh environments.
This fixture operates at 120–277 Vac, 50/60 Hz, and uses a 32 W, 2-lamp, 4 ft fluorescent (T8 bi-pin) configuration, suitable for universal mains in a wide range of industrial facilities and retrofit projects.
Ideal for chemical processing, mining, oil & gas, and outdoor or wash-down areas where robust IP66/NEMA 4X lighting is required. Its long 4 ft form factor and two-lamp setup provide efficient, wide-area illumination for large spaces.
The Polycarbonate lens and fiberglass-reinforced polyester housing resist impact and corrosion, reducing replacement cycles. The durable enclosure design minimizes downtime in hazardous zones, delivering lower total cost of ownership over the fixture’s lifespan.
