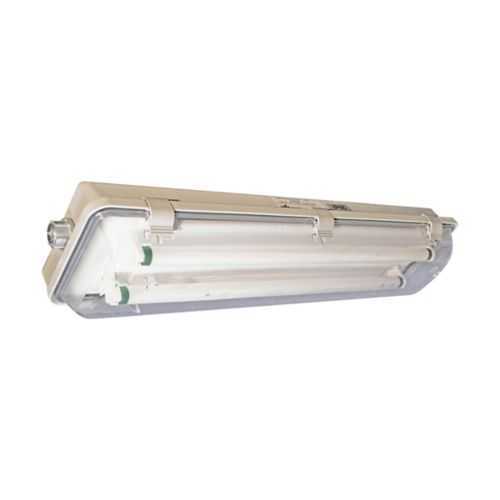

Eaton ED2N42371012L Linear Fluorescent Light IP66 4X
Part Number: ED2N42371012L
Quick Summary
Eaton ED2N42371012L linear fluorescent light fixture provides reliable illumination for hazardous/classified locations in industrial facilities. When harsh environments strain lighting reliability, downtime and maintenance costs rise, impacting production and safety. This fixture meets critical requirements with IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC compliance for hazardous and classified locations, helping you stay code-compliant and keep operations running. With a 4 ft, 53 in long housing, 36 W, and a 2-lamp configuration, it provides ample light while minimizing energy use. The fiberglass-reinforced polyester body and polycarbonate lens resist chemicals and impact, and the ceiling-mount design plus 120–277 VAC operation simplify installation and reduce total cost of ownership.
Product Information
Extended Description
ED2N42371012L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture,3/4",Myers conduit hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,36W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N42371012L
UPC
662276420465
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
36W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N42371012L
Durable fiberglass-reinforced polyester housing with a polycarbonate lens delivers chemical resistance and impact strength, extending fixture life in corrosive environments and reducing replacement cycles. This translates to lower maintenance costs and fewer unplanned outages in demanding applications. IP66 ingress protection and a NEMA 4X enclosure provide reliable sealing against dust and high-pressure washdowns, enabling safe operation in chemical plants, mining, and production lines without compromising cleanliness or safety standards. The 4 ft length with 53 in overall dimension and a 2-lamp 36W configuration offers strong illumination in general area work zones while keeping energy use predictable and within budget. Universal 120–277 VAC input and 50/60 Hz compatibility streamline integration with existing electrical systems and spare-part inventories, reducing installation time and lifecycle labor costs. Lamps included further shorten replacement cycles and ensure consistent lighting performance across shifts, while Myers conduit hubs (zinc) and a 3/4" entry at each end simplify mounting and wiring. This design supports long-term asset reliability and simplifies regulatory compliance in hazardous-location environments.
Get a Quick Quote for a Eaton ED2N42371012L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N42371012L?
Enquire Now
FAQs
This unit is designed for ceiling mounting and uses Myers conduit hubs with zinc housing, one entry at each end, and a 3/4 inch entry size. For hazardous locations, ensure the area is classified per NEC/CEC guidelines. The 53 inch fixture length provides ample light coverage, while the 4 ft form factor fits standard mounting layouts. Follow Eaton installation sheets for wiring and gasket seating to maintain IP66 and 4X ratings.
The ED2N42371012L operates at 120–277 VAC and 50/60 Hz, with a wattage of 36 W and a 2-lamp configuration. It uses T8 bi-pin lamps, and the fixture ships with lamps included. Its universal input simplifies integration with existing electrical systems, helps reduce spare parts inventory, and supports consistent performance across varied supply voltages in industrial facilities.
Yes. This fixture is rated for Hazardous/Classified Locations under NEC/CEC standards, including NEC hazardous ratings that cover Class I Division 2, Class II Division 1, and Class III scenarios. It also features a NEMA 4X enclosure and IP66 protection, making it appropriate for areas requiring robust containment against dust, water ingress, and corrosive environments.
Lamps are included, enabling immediate installation and reducing downtime associated with lamp sourcing. The fiberglass-reinforced polyester housing and polycarbonate lens resist chemicals and impact, extending service life in harsh facilities. With a 4 ft footprint and robust seal, the fixture minimizes replacement frequency and supports predictable maintenance planning and lower total cost of ownership.
Installations can reference the IF LBL1584 instruction sheet, the Eaton specification sheet for ED2N42371012L, and the Pauluhn ECOS catalogs/brochures for testing and compliance context. Download links include the instructional PDF, the product spec sheet, and hazardous-location certification reports, enabling engineers to verify wiring, mounting, and certifications before procurement.
