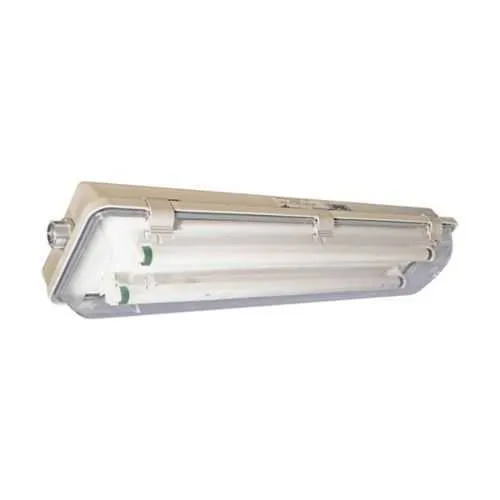

Eaton ED2N4237X012EM1L Linear Fluorescent Light - IP66
Part Number: ED2N4237X012EM1L
Quick Summary
The Eaton ED2N4237X012EM1L linear fluorescent light fixture is a high-efficiency solution for hazardous-location illumination. In challenging environments, downtime and noncompliant lighting layouts can erode safety and productivity, making reliable lighting essential. This fixture leverages NEC/CEC compliance, NEMA 4X enclosure, and IP66 ingress protection to meet rigorous industrial standards in Class I, Division 2 and Class II, Division 1 applications. Designed for 4 ft runs with two lamps and an emergency battery back‑up ballast, it supports code compliance while minimizing maintenance and replacement costs. With zinc Myers hubs and end-entry options, it integrates smoothly into existing conduit systems, delivering dependable operation across harsh sites.
Product Information
Extended Description
ED2N4237X012EM1L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4",Myers hubs,zinc,one entry at each end,4 ft,Polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,battery back-up,one lamp,lamps included,120-277 Vac,36W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N4237X012EM1L
UPC
662276688698
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
No mounting style
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
36W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp, lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N4237X012EM1L
Feature: 4 ft, 2-lamp, 36W operation with T8 bi-pin lamps; Business Impact: delivers high-efficiency illumination with lower energy costs and longer run life; Application: plant floors and service bays where consistent output is essential. Feature: IP66 enclosure and NEMA 4X rating; Business Impact: durable protection against dust, water, and corrosive exposures, reducing maintenance and replacement cycles; Application: chemical plants, outdoors, and marine environments. Feature: Emergency battery back-up ballast, one lamp, lamps included; Business Impact: provides illumination during power outages for safety-critical areas and compliance, lowering risk and downtime; Application: exit routes, emergency zones, and front-line production lines. Feature: Fiberglass-reinforced polyester housing with polycarbonate lens; Business Impact: robust, impact-resistant enclosure that withstands chemical exposure and temperature swings, lowering total cost of ownership; Application: harsh environments requiring long service life. Feature: 120–277 VAC, 50/60 Hz input; Business Impact: flexible power compatibility across facilities without additional external ballast or rewiring; Application: facilities with mixed voltage supplies, simplifying installation and inventory management.
Get a Quick Quote for a Eaton ED2N4237X012EM1L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N4237X012EM1L?
Enquire Now
FAQs
The ED2N4237X012EM1L uses Myers conduit hubs with zinc end entries and supports a 3/4 inch entry size at both ends. It has a 4 ft length, 2-lamp configuration, and no fixed mounting style, making it compatible with standard industrial conduit systems. Ensure wiring follows NEC guidance for Class I, Division 2 and Class II, Division 1 areas and that IP66/NEMA 4X enclosures are preserved during mounting.
This fixture operates at 36W with 2-lamp (T8 bi-pin) configuration and is designed for 120–277 VAC input at 50/60 Hz. Lamps are included with the unit, simplifying installation. The product is rated for 4 ft lamp length and leverages an emergency back-up ballast to maintain illumination during outages.
The ED2N4237X012EM1L is ideal for hazardous and classified locations such as chemical processing plants, refineries, offshore platforms, and maritime facilities. Its IP66 and NEMA 4X protections, along with Class I, Division 2 and Class II, Division 1 ratings, ensure reliability in harsh environments while meeting stringent regulatory requirements.
This Eaton fixture adheres to NEC/CEC standards and is certified for hazardous locations (Class I, Division 2; Class II, Division 1; Class III). It features IP66 ingress protection and a NEMA 4X enclosure, enabling installation in wet, dusty, and corrosive industrial settings while maintaining safe, compliant operation.
With an emergency battery back-up ballast and included lamps, this fixture reduces downtime during power events and simplifies inventory. The rugged fiberglass-reinforced polyester housing and polycarbonate lens extend service life in tough environments, lowering life-cycle costs, improving uptime, and delivering predictable performance in critical facilities.
