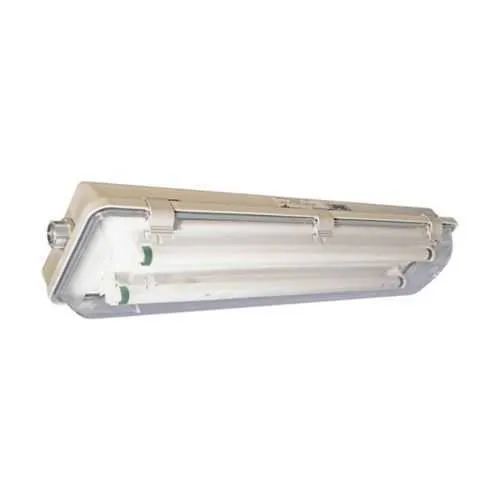

Eaton ED2N43161012 Linear Fluorescent Light Fixture - IP66
Part Number: ED2N43161012
Quick Summary
The ED2N43161012 linear fluorescent light fixture from Eaton delivers high-performance illumination for hazardous, classified locations. In harsh industrial environments, inadequate lighting can hinder safety and productivity, especially in areas requiring rugged enclosure and moisture protection. This fixture earns confidence with IP66 protection, a NEMA 4X enclosure, and NEC/CEC compliance for hazardous locations (Class I, Division 2; Class II, Division 1; Class III). It also supports standard 347 Vac systems and 32 W fluorescent lamps. By combining reliable performance with easy installation and proven field-service life, it helps facilities reduce maintenance downtime while meeting strict code requirements and energy-management objectives. Use cases span chemical plants, refineries, offshore platforms, and other demanding sites.
Product Information
Extended Description
ED2N43161012 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture,3/4" Myers conduit hubs,zinc,one entry at each end,60 Hz,4 ft,Fluorescent,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,3-lamp,Ceiling,347 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N43161012
UPC
662276448926
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
16.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
347 Vac
Frequency rating
60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
3-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Eaton Crouse-Hinds ED2N43161012 3D drawing
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N43161012
Feature: Fiberglass-reinforced polyester housing provides durable, corrosion-resistant protection. Benefit: Extends service life in harsh environments, reducing replacement costs and maintenance downtime. Application: Hazardous/classified locations in chemical plants and refineries. Feature: Polycarbonate lens offers impact resistance and clear illumination. Benefit: Maintains light output and visibility in rugged facilities, improving worker safety and process control. Application: Ceiling-mounted fixtures in industrial spaces with exposure to dust and debris. Feature: IP66 ingress protection and NEMA 4X enclosure. Benefit: Superior moisture, dust, and wash-down resilience, lowering failure rates in wet or harsh environments. Application: Marine, offshore, and chemical processing plants. Feature: 3-lamp, 4 ft configuration with 32W fluorescent lamps (T8 bi-pin). Benefit: Balanced lumen output, energy efficiency, and long lamp life with straightforward maintenance. Application: General-area lighting in large industrial bays and corridors. Feature: 347 Vac, 60 Hz electrical rating with 3/4" Myers conduit hubs (zinc), one entry at each end. Benefit: Ready-to-wire integration for standard plant power and simple field installation, reducing installation time and wiring errors. Application: High-capacity plant floors and controlled environments requiring reliable power. Feature: Ceiling mounting and end-entry design with 53 in length, 8.5 in width, 5.6 in height. Benefit: Flexible installation in constrained ceilings and retrofit projects, minimizing structural modifications. Application: Retrofit projects in aging facilities seeking compliant hazardous-location lighting.
Get a Quick Quote for a Eaton ED2N43161012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N43161012?
Enquire Now
FAQs
ED2N43161012 is designed for ceiling mounting with Myers conduit hubs (zinc) and offers one entry at each end. The entry size is 3/4 inches, simplifying wiring in tight industrial ceilings and enabling a clean, secure installation in hazardous or classified locations.
This fixture runs on 347 Vac at 60 Hz and consumes 32 W. It is a 3-lamp, 4 ft fluorescent assembly using T8 bi-pin lamps, with a total length of 53 in, width of 8.5 in, and height of 5.6 in, suitable for ceiling mounting in demanding environments.
Yes. It is rated for Hazardous/Classified Locations with NEC/CEC standards, including Class I Division 2, Class II Division 1, and Class III. It also carries a NEMA 4X enclosure and IP66 ingress protection, aligning with stringent industrial requirements and Canadian certifications as referenced in available documentation.
The combination of a fiberglass-reinforced polyester housing and polycarbonate lens provides durable protection against corrosion and impact. The 3-lamp configuration offers reliable light output with energy efficiency, reducing lamp changes and downtime, while the rugged enclosure minimizes weathering and wash-down-related failures.
Yes. Designed for 347 Vac systems and ceiling installation, it integrates with common industrial power distribution. Its end-entry conduits and compact 53 in length simplify retrofits in tight or cluttered ceilings, enabling compliant upgrades without extensive structural work.
