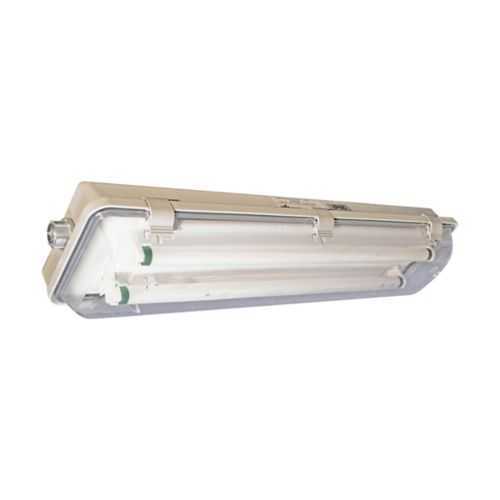

Eaton ED2N43171112 Linear Fluorescent Light - IP66
Part Number: ED2N43171112
Quick Summary
Eaton Crouse-Hinds ECOS ED2N linear fluorescent light fixture provides reliable, long-term illumination for hazardous and classified locations. When industrial spaces demand rugged lighting that minimizes maintenance and downtime, choosing the wrong luminaire can cost productivity and safety. This fixture carries NEC/CEC compliance and high-performance protections, including IP66 ingress protection and a NEMA 4X enclosure, with hazardous-location ratings of Class I, Division 2; Class II, Division 1; and Class III. Engineered for ceiling-mount installation, it runs 32 watts across three lamps at 120–277 VAC and 50/60 Hz, with a 4 ft lamp length and polycarbonate lens. The design leverages fiberglass-reinforced polyester housing, stainless Myers hubs, and end-entry fittings to simplify installation in harsh environments.
Product Information
Extended Description
ED2N43171112 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture,3/4",Myers conduit hubs,stainless steel,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,3-lamp,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N43171112
UPC
662276499010
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers hubs, stainless steel, one entry at each end
Wattage
32W
Number of lamps
3-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Eaton Crouse-Hinds ED2N43171112 3D drawing
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N43171112
Rugged enclosure and IP66/NEMA 4X protection → dramatically improves uptime and compliance in harsh environments; ideal for chemical plants and offshore facilities where ingress protection matters. The unit’s 3-lamp, 32W configuration delivers efficient illumination and reliable performance, reducing energy costs while maintaining brightness over the life of the fixture in demanding locations. Universal voltage 120-277 VAC and 50/60 Hz support multiple facility grids, simplifying procurement and stocking for mixed sites. Ceiling mounting with 3/4" entry and stainless steel Myers hubs streamlines installation, minimizes field adjustments, and lowers maintenance labor. Fiberglass-reinforced polyester housing and polycarbonate lens resist corrosion and impact, extending service life in tough environments while protecting optics. The ED2N aligns with NEC/CEC and hazardous-location ratings, delivering safe operation in Class I, Division 2 and other classified zones.
Get a Quick Quote for a Eaton ED2N43171112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N43171112?
Enquire Now
FAQs
The ED2N43171112 is a ceiling-mounted luminaire with 3/4" entry points and Myers hubs (stainless steel) at each end, simplifying surface or suspended installations in harsh environments. Its 53" length and end-entry design minimize field cabling and reduce installation time, while meeting hazardous-location requirements.
It carries IP66 ingress protection and a NEMA 4X enclosure, suitable for hazardous/classified locations. The unit aligns with NEC/CEC standards and provides hazardous-location ratings of Class I, Division 2; Class II, Division 1; Class III, making it compliant for a wide range of industrial chemistries and processes.
Yes. The fixture is rated for 120–277 VAC with 50/60 Hz, which supports diverse electrical infrastructure across facilities, reducing the need for multiple configurations or transformers on site.
It uses a polycarbonate lens for impact resistance and a fiberglass-reinforced polyester housing for chemical and environmental durability. The system runs 3 lamps at 32W total, with a 4 ft lamp length and T8 bi-pin lamps, providing efficient, reliable illumination in challenging zones.
End-entry design and stainless steel Myers hubs simplify wiring and maintenance, while the 53 in length and 17 lb weight balance ease of handling. The combination of rugged housing, high protection ratings, and energy-efficient 32W operation reduces replacement frequency and energy costs, delivering a favorable total cost of ownership in hazardous environments.
