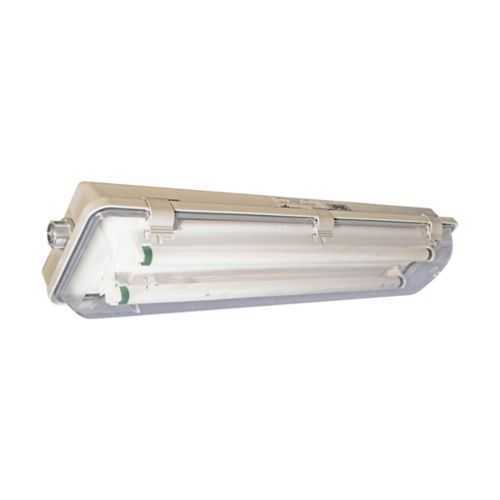

Eaton ED2N43172012EM1 Linear Fluorescent Light Fixture - IP66

Part Number: ED2N43172012EM1
ED2N43172012EM1
Manufacturer
Eaton
Part number
ED2N43172012EM1
Category

Quick Summary

Eaton ED2N43172012EM1 linear fluorescent light fixture delivers robust wall-mount illumination for hazardous locations. Facility managers struggle with reliable performance, safety compliance, and maintenance in harsh environments. This model meets NEC/CEC standards and hazardous-location classifications, plus IP66 and NEMA 4X protection, delivering uptime in demanding settings. Its emergency back-up option and 120–277V compatibility support simple installation and ongoing resilience for industrial facilities.

Product Information

Extended Description

ED2N43172012EM1 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4",Myers hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,3-lamp,Emergency battery back-up,one lamp,Wall,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N43172012EM1
UPC
662276627918
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
3-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent Eaton Specification Sheet - ED2N43172012EM1
Feature: 4 ft length, 3-lamp configuration, 32W wattage with 120-277 Vac supply, 50/60 Hz operation. Business Impact: Provides high lumen coverage with efficient energy use, reducing operating costs while maintaining consistent illumination across long work areas. Application: Ideal for large-scale industrial corridors, plants, and washdown zones where reliable light is essential. Feature: Fiberglass-reinforced polyester housing. Business Impact: Delivers rugged durability and chemical resistance, lowering replacement frequency and maintenance downtime. Application: Suitable for chemical plants, offshore facilities, and harsh environments where equipment longevity matters. Feature: Polycarbonate lens and T8 bi-pin lamps. Business Impact: Enhances impact resistance and easy lamp replacement, improving uptime and safety. Application: Environments with dust, moisture, or potential impact exposures. Feature: Myers conduit hubs, zinc, one entry at each end (3/4" entry). Business Impact: Simplifies wiring and retrofit installations, reducing installation time and labor costs. Application: New installs and retrofits in load-heavy industrial spaces. Feature: Emergency battery back-up ballast (one lamp). Business Impact: Provides critical illumination during power outages, supporting egress and safety compliance. Application: Facilities requiring standby lighting for safety or regulatory reasons. Feature: IP66 and NEMA 4X protection; hazardous/classified area ratings (NEC). Business Impact: Ensures reliable operation in harsh, dusty, and wet environments while meeting strict safety standards. Application: Chemical processing, mining, and other hazardous-location applications. Feature: 53 in length, 5.6 in height, 8.5 in width; weight 17 lb. Business Impact: Manageable size and weight simplify handling, mounting, and service, improving installation efficiency. Application: Wall-mounted light runs and limited-access installations in industrial facilities.

Get a Quick Quote for a Eaton ED2N43172012EM1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton ED2N43172012EM1? Enquire Now

FAQs

This fixture is designed for wall mounting with 3/4" Myers conduit hubs, zinc end entries, and a 53" length. Ensure compliant enclosure and wiring per NEC/CEC guidelines, confirm Class I, II, III suitability, and maintain IP66/NEMA 4X protection during installation to preserve hazardous-location integrity.
Yes. The ED2N43172012EM1 is rated IP66 and NEMA 4X, with NEC hazardous-location classifications (Class I, Division 2; Class II, Division 1; Class III). This makes it appropriate for dusty, damp, and washdown environments common in chemical plants, mining, and other hazardous facilities.
The unit includes an emergency battery back-up ballast, powering one lamp during an outage. This supports egress lighting and regulatory safety requirements in facilities that must maintain illumination during power loss, improving safety and reducing downtime during outages.
The fixture accepts 120–277 Vac operation at 50/60 Hz, enabling versatility across distribution systems. It uses 3/4" Myers hubs for end-entry, simplifying wiring runs and reducing installation time in retrofit and new construction projects alike.
The light measures 53 inches in length, 5.6 inches in height, and 8.5 inches in width, with a weight of 17 pounds. This manageable size and weight facilitate handling, mounting, and service in crowded or restricted industrial spaces.
