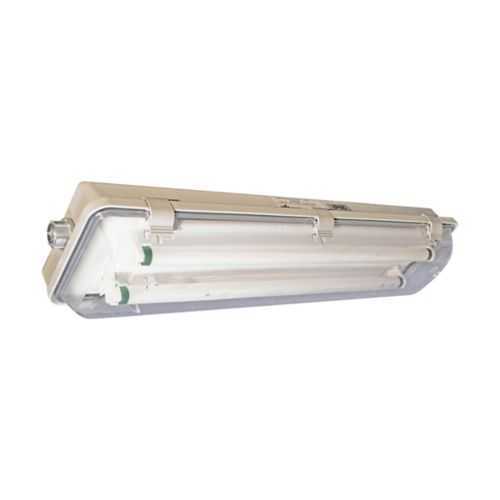

Eaton ED2N43173012EM1 Linear Fluorescent Fixture - IP66
Part Number: ED2N43173012EM1
Quick Summary
The Eaton ED2N43173012EM1 linear fluorescent light fixture provides robust illumination for hazardous-classified areas in industrial plants. Facility engineers often face harsh environments where luminaires must resist moisture, dust, vibrations, and tight maintenance windows. This model carries key certifications for demanding sites, including IP66 ingress protection, NEMA 4X enclosure rating, and NEC/CEC hazardous locations approvals (Class I, Division 2; Class II, Division 1; Class III). With a 4 ft, 3-lamp configuration and emergency battery-backup option, it supports uptime and reduces service costs when power is interrupted. Its fiberglass-reinforced polyester housing and polycarbonate lens meet rugged industrial needs while delivering reliable performance in industrial lighting applications. From a procurement perspective, the fixture aligns with safety standards and provides lifecycle value through corrosion resistance and long service life.
Product Information
Extended Description
ED2N43173012EM1 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4",Myers hubs,zinc,one entry at each end,4 ft,Polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,3-lamp,battery back-up,one lamp,Pipe clamp bracket,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N43173012EM1
UPC
662276627901
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Pipe clamp bracket
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
3-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, one lamp
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N43173012EM1
Fiberglass-reinforced polyester housing paired with a polycarbonate lens delivers rugged durability in corrosive or dusty environments, extending service life. This reduces replacement cycles and maintenance downtime, helping facilities maintain continuous operations in chemical plants and mining sites. IP66 ingress protection and a NEMA 4X enclosure protect internal components from dust and water jets, lowering maintenance frequency and enhancing safety in washdown zones and outdoor installations. NEC/CEC hazardous locations approvals (Class I, Division 2; Class II, Division 1; Class III) ensure code-compliant deployment in oil refineries, chemical processing facilities, and similar environments. The 4 ft length with 32W across three T8 lamps delivers energy-efficient illumination for long runs, supporting lower operating costs and consistent lumen output. Emergency battery-backup ballast enhances uptime during outages, while end-entry Myer conduits and pipe clamp mounting simplify installation, reducing labor time and potential wiring errors. The unit’s 120–277 VAC operation and 50/60 Hz compatibility enable seamless integration with existing power systems, minimizing site adaptations and accelerating commissioning.
Get a Quick Quote for a Eaton ED2N43173012EM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N43173012EM1?
Enquire Now
FAQs
ED2N43173012EM1 operates on 120–277 VAC at 50/60 Hz and is designed for 4 ft runs with 3-lamp T8 bi-pin configuration. It supports end-entry connections via Myers conduits and a pipe-clamp mounting bracket, enabling straightforward wiring and secure mounting in industrial applications without requiring special transformers or adapters.
The ED2N43173012EM1 carries IP66 ingress protection and a NEMA 4X enclosure, along with NEC/CEC hazardous-location approvals for Class I, Division 2; Class II, Division 1; and Class III. These certifications confirm suitability for chemical processing, oil-and-gas facilities, and other harsh environments requiring compliant, safe lighting.
Durability comes from a fiberglass-reinforced polyester housing and a polycarbonate lens, delivering corrosion resistance and impact tolerance. The emergency back-up ballast adds reliability during outages, reducing downtime. The 53 inch length with 32W across three lamps provides long-life performance with lower replacement frequency, supporting maintenance teams in demanding facilities.
Commonly deployed in chemical plants, refineries, mining sites, and other hazardous-location environments, ED2N43173012EM1 is ideal for washdown zones, walkways, and large interiors requiring durable, compliant lighting. Its IP66/NEMA 4X protection and 120–277 VAC range make it suitable for indoor and outdoor installations with challenging exposure to dust, moisture, and vibrations.
By meeting NEC/CEC hazardous-location standards, providing IP66/NEMA 4X protection, and incorporating emergency back-up ballast, the ED2N43173012EM1 minimizes downtime and maintenance costs. Its long service life, durable housing, and energy-efficient 32W consumption across three lamps offer predictable operating expenses, reducing lifecycle costs in demanding industrial environments.
