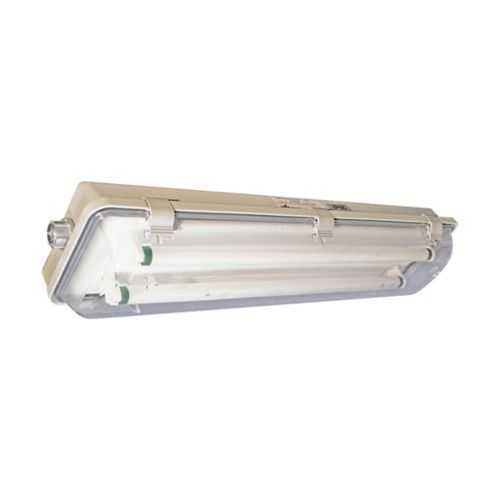

Eaton ED2N4317X113SWT Linear Fluorescent Light Fixture - IP66
Part Number: ED2N4317X113SWT
Quick Summary
Eaton ED2N4317X113SWT linear fluorescent light fixture provides reliable illumination for hazardous and classified locations. In harsh industrial environments, reliability and protection against dust, water, and mechanical impact are constant concerns. This model delivers NEC/CEC compliance, IP66 protection, and NEMA 4X ruggedness, with hazardous-location approvals for Class I, Division 2 and related classifications. By combining long-lifespan fluorescent lamps, a fiberglass-reinforced polyester housing, and a polycarbonate lens, it reduces maintenance costs while ensuring consistent, high-quality light for manufacturing floors, chemical plants, and offshore facilities.
Product Information
Extended Description
ED2N4317X113SWT Eaton: Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent,3/4" Myers hubs,316 SS,1 entry each end,4 ft,Polycarb lens,T8 bi-pin,Fiberglass-reinforced polyester,3-lamp,Internal safety disconnect switch,5-pole term block,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS ED2N linear fluorescent light fixture
Catalog Number
ED2N4317X113SWT
UPC
662276375239
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
No mounting style
Entry size
3/4"
Entry type
Myers hub, 316 stainless steel, one entry each end
Wattage
32W
Number of lamps
3-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Internal safety disconnect switch, 5-pole terminal block
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1584 - Pauluhn ECOS ED2N Series Linear Fluorescent
Eaton Specification Sheet - ED2N4317X113SWT
53 in overall length with a 4 ft lamp length and a 3-lamp configuration delivers ample illumination while minimizing fixture count and energy use. This translates to lower installed costs and reduced energy consumption in long-running production lines. The fixture runs on 120-277 VAC, 50/60 Hz, at 32W, enabling flexible power procurement and simplified stock management for mixed facility fleets. Fiberglass-reinforced polyester housing with IP66 and NEMA 4X protection provides robust corrosion resistance in chemical, oil, and heavy industrial atmospheres, while 316 stainless steel Myers hubs protect end-entry connections for reliable wiring in demanding environments. A polycarbonate lens shields the lamps from particulate ingress and impact, and an internal safety disconnect switch plus a 5-pole terminal block enhance operator safety and serviceability. Installation benefits include end-entry 3/4 in Myers hubs, enabling straightforward wiring and retrofit compatibility with Pauluhn ECOS systems for upgraded hazardous-location lighting. These features collectively support compliance with NEC/CEC, reduce downtime, and improve overall facility uptime.
Get a Quick Quote for a Eaton ED2N4317X113SWT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ED2N4317X113SWT?
Enquire Now
FAQs
The ED2N4317X113SWT uses Myers hub end entries (3/4 in) and is supplied without a dedicated mounting bracket. For installation, attach via the end-entry hubs and use compatible mounting accessories or ceiling/wall supports that suit the site, ensuring proper clearance for the 53 in fixture length and service access.
Yes. The ED2N4317X113SWT is rated for Hazardous/Classified Locations with NEC/CEC compliance and supports Class I, Division 2, Class II, Division 1, and Class III classifications, along with an IP66 and NEMA 4X enclosure protection.
This fixture operates at 120–277 VAC, 50/60 Hz, consumes 32W, and uses a 3-lamp, 4 ft fluorescent T8 bi-pin configuration. It measures 53 inches in overall length with a 5.6 inch height and 8.5 inch width.
Ideal for harsh industrial settings such as chemical plants, refineries, offshore platforms, and mining operations. Its fiberglass-reinforced polyester housing, IP66 enclosure, and 316 stainless steel Myers hubs provide corrosion resistance and reliable performance in wet, dusty, and chemically aggressive environments.
Key benefits include a long service life from robust materials, an internal safety disconnect switch for safer servicing, and a 5-pole terminal block that simplifies field wiring. These features reduce maintenance downtime, improve system availability, and support NEC/CEC compliance for safer, more predictable operations.
