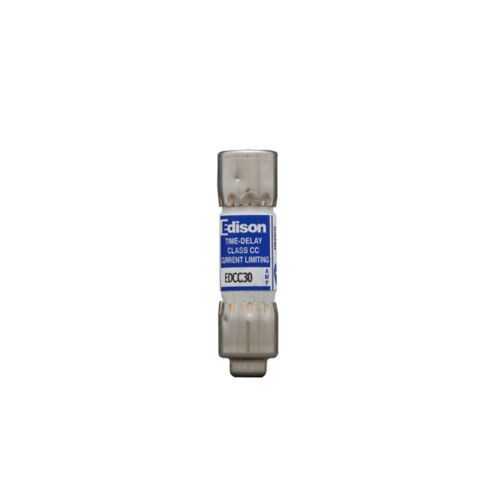

Eaton EDCC30 fuse - UL Listed 20 kAIC
Part Number: EDCC30
Quick Summary
Eaton EDCC30 fuse provides reliable overcurrent protection for electrical panels and motor control centers. This non-indicating Class CC fuse helps prevent nuisance trips while keeping replacement downtime minimal. In practice, engineers often wrestle with choosing devices that meet both protection and regulatory needs across diverse installations. The EDCC30 carries UL Listed, CSA Certified, and CE Marked compliance, with RoHS conformity, ensuring consistent qualification for global projects. By combining a compact 1.5-inch depth with robust 30 A rating at 600 Vac (300 Vdc), it supports modern control architectures without crowding panels. The device aligns with standardized form factors, offering straightforward stock management and predictable maintenance intervals for procurement teams and field technicians.
Product Information
Extended Description
EDCC30 Eaton: Eaton Edison EDCC fuse, Non-indicating, 30 A, Class CC, 20 kAIC, Standard, 600 V, 300 Vdc
Product Name
Eaton Edison EDCC fuse
Catalog Number
EDCC30
UPC
782634808305
Product Length/Depth
1.5 in
Product Height
0.41 in
Product Width
0.41 in
Product Weight
0.19 lb
Warranty
No warranty
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
30 A
Interrupt rating
20 kAIC
Voltage rating
600 Vac, 300 Vdc
Packaging type
Standard
Class
Class CC
Fuse indicator
Non-indicating
Special features
Non-indicating
Feature: 30 A current rating with 600 Vac and 300 Vdc voltage ratings. Business Impact: Enables protection for a wide range of loads in automated machinery while maintaining safety margins and equipment longevity. Application: Suitable for control panels and machine feeders in industrial environments, reducing downtime and improving reliability. Feature: Class CC, compact 1.5 inch depth and 0.41 inch width/height. Business Impact: Saves panel space and simplifies enclosure design, enabling denser wiring and easier future upgrades. Application: Modern control cabinets and compact switchgear assemblies where space is at a premium. Feature: Non-indicating fuse. Business Impact: Reduces the risk of indicator misreads in crowded panels and lowers wiring complexity, while external status indicators can be added if needed. Application: High-density control panels in automotive, packaging, and process automation. Feature: RoHS compliant, CE Marked, UL Listed, CSA Certified. Business Impact: Ensures global regulatory readiness and supplier qualification across multinational sites. Application: Projects with strict compliance requirements and cross-border deployment. Feature: 20 kAIC interrupt rating. Business Impact: Provides robust short-circuit protection for demanding loads, limiting arc energy and component damage. Application: Drives, motors, and power distribution circuits in harsh industrial settings.
Get a Quick Quote for a Eaton EDCC30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EDCC30?
Enquire Now
FAQs
The EDCC30 is a standard packaging, 1.5 inch deep device designed for Class CC fuse holders. Ensure the fuse holder matches the EDCC30’s class CC format, observe the 30 A rating and 600 Vac/300 Vdc voltage limits, and verify compatible panel blanking and labeling. Use proper PPE and follow preventative maintenance practices to avoid arcing during replacement.
The EDCC30 is rated at 30 A with an interrupt rating of 20 kAIC, and supports 600 Vac or 300 Vdc. This combination provides robust protection for control circuits and motor feeders, while keeping conduction losses and heat generation within safe limits for typical industrial environments.
Yes. The EDCC30 carries UL Listed and CSA Certified marks, and it is CE Marked with RoHS compliance. These certifications ensure regulatory acceptance in North America and many international installations, simplifying procurement and reducing compliance risk on global projects.
EDCC30 is ideal for electrical protection in control panels, machine control centers, and power distribution cabinets. Its Class CC construction and compact form factor support dense panel layouts, while the 30 A/600 Vac rating meets the protection needs of many automation services, drives, and relays in manufacturing and packaging lines.
Consider compatibility with Class CC fuse holders and ensure the wiring diagram reflects non-indicating status. Plan for periodic visual checks and stock replacement to minimize downtime since the device does not provide built-in indication. Leverage the RoHS, CE, UL, and CSA certifications to ensure broad compatibility across sites and equipment fleets.
