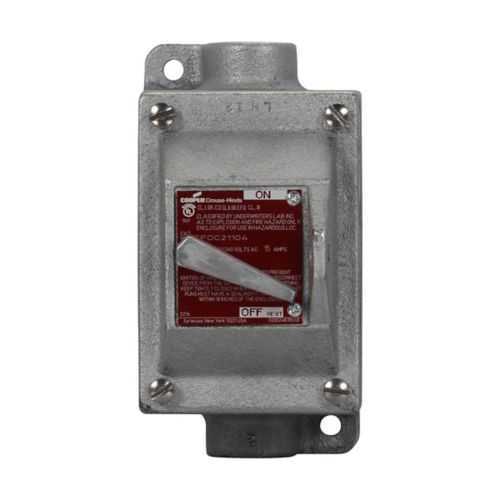

Eaton EFDC31106 EFD Circuit Breaker - Hazardous Locations
Part Number: EFDC31106
Quick Summary
The Eaton EFDC31106 EFD circuit breaker protects critical circuits in hazardous locations while delivering reliable overcurrent protection. For engineers facing explosive atmospheres, a compact, bolted/ground joint enclosure and through-feed wiring simplify installation and minimize downtime. It carries NEC/CEC compliance and hazardous-location ratings (Class I, Division 1; Class II, Division 2; Class III) and NEMA configurations, supporting safe operation in strict regulatory environments. With a 30 A rating, 1" trade size and 120/240 VAC capability, it integrates seamlessly into single-pole, single-gang installations. Designed for operational efficiency, it helps reduce lifecycle costs while maintaining safety in harsh environments. Rugged construction with Feraloy iron alloy resists wear and permits long service life.
Product Information
Extended Description
EFDC31106 Eaton: Eaton Crouse-Hinds series EFD circuit breaker, 30A, Bolted/ground joint cover construction, Feraloy iron alloy, Square D breaker, Single-gang, Single-pole, Through feed, 1", 120/240 Vac
Product Name
Eaton Crouse-Hinds series EFD circuit breaker
Catalog Number
EFDC31106
UPC
782274034195
Product Length/Depth
3.5 in
Product Height
7.13 in
Product Width
5 in
Product Weight
7.47 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 2 Class III Class II, Division 1
NEMA Rating
3 7 9 12
Enclosure
With circuit breaker
Number of gangs
Single-gang
Style
Through feed
Amperage Rating
30 A
Trade size
1"
Manufacturer
Square D
Number of poles
Single-pole
Voltage rating
120/240 Vac
Enclosure cover construction
Bolted/ground joint
Enclosure material
Feraloy iron alloy
EFD and EFDC Series Explosionproof Circuit Breakers catalog page
Eaton Specification Sheet - EFDC31106
Explosion-proof enclosure construction provides robust protection in hazardous locations, reducing ignition risks in Class I and II environments. Business impact: enhanced safety, stronger regulatory compliance, and lower incident-driven downtime. Application: ideal for chemical processing, mining, and other high-risk industrial settings where reliable protection is essential. The 30 A amperage rating and 1" trade size align with standard control panels, enabling faster wiring and streamlined panel layouts for single-pole, through-feed configurations. This simplifies installation and reduces field labor costs during commissioning and future expansions. Feraloy iron alloy enclosure material delivers superior hardness and corrosion resistance, extending service life and lowering maintenance costs in harsh environments. The bolted/ground joint enclosure further minimizes leak paths and ensures a consistent, sealed installation in challenging conditions. Certifications and standards, including NEC/CEC compliance and NEMA ratings 3, 7, 9, 12, support ease of audits and long-term regulatory alignment. Square D compatibility and through-feed design enable smooth integration with existing panels and drop-in replacement in compatible EFDC assemblies. Industry-standard dimensions and mounting patterns reduce design-time and accelerate project delivery. By addressing common objections—such as cost and install complexity—the EFDC31106 delivers a compelling return on investment through lower replacement frequency, reduced downtime, and predictable performance in hazardous locations.
Get a Quick Quote for a Eaton EFDC31106
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EFDC31106?
Enquire Now
FAQs
EFDC31106 installs in single-gang panels with a 1 inch trade size and through-feed wiring. It is designed for Class I, Division 1 and Class II, Division 2 environments and is compatible with Eaton’s Crouse-Hinds EFDC series and Square D enclosures. Operators should follow local codes, use proper explosion-proof fittings, ensure proper grounding, and verify panel integrity before energizing the circuit.
Key specs include a 30 A amperage rating, 120/240 VAC voltage, single-pole configuration, through-feed enclosure style, and a 1" trade size. The unit uses a bolted/ground joint enclosure and features Feraloy iron alloy construction. It complies with NEC/CEC standards and supports hazardous-location classifications, with corresponding NEMA ratings to match installation requirements.
Yes. EFDC31106 is rated for Hazardous/Classified Locations, including Class I, Division 1, and related Class II/III scenarios. Its explosion-protected design, robust enclosure, and compliance with NEC/CEC reduce risk in chemical plants and other industries handling flammable or combustible atmospheres, while offering reliable overcurrent protection for critical circuits.
EFDC31106 adheres to NEC/CEC standards and is rated for Hazardous/Classified Locations. It carries NEC hazardous ratings across Class I Division 1 and Division 2, Class II Division 2, and Class III. NEMA ratings include 3, 7, 9, and 12, ensuring broad regulatory alignment and dependable performance in demanding industrial applications.
The rugged EFDC31106 design minimizes maintenance needs due to its durable Feraloy iron alloy enclosure and sealed bolted connections, reducing corrosion-related downtime. ROI benefits arise from longer service life, fewer replacement cycles, and quicker, safer panel swaps in hazardous environments, translating to lower lifecycle costs and improved plant uptime.
