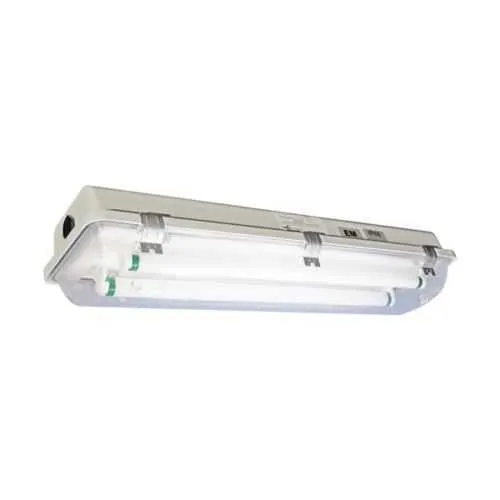

Eaton EHAR42171012 Linear Fluorescent Light Fixture - IP66

Part Number: EHAR42171012
Manufacturer
Eaton
Part number
EHAR42171012

Quick Summary

The Eaton EHAR42171012 Linear Fluorescent Light Fixture is a reliable ceiling-mounted lighting solution for industrial facilities. When environments demand durability and minimal downtime, this fixture minimizes maintenance with rugged construction and long service life. It carries NEMA 4X and IP66 ratings, plus NEC/CEC compliance, to perform in harsh surroundings while meeting electrical codes. Designed to deliver energy-efficient illumination, it fits 120–277 VAC systems and supports 2-lamp 32W operation, making it a practical choice for cost-conscious facilities seeking consistent performance and safer, compliant lighting solutions.

Product Information

Extended Description

EHAR42171012 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture,3/4" Myers conduit hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42171012
UPC
662276546707
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Feature: Rugged enclosure with IP66 and NEMA 4X ratings → Business Impact: Superior dust, water, and corrosion resistance reduces unplanned outages and maintenance costs in challenging environments → Application: Manufacturing floors, washdown areas, and outdoor-adjacent spaces. Feature: 4 ft, 2-lamp, 32W lamping on a 120–277 VAC supply → Business Impact: High lumen output with efficient energy use lowers operating costs and extends intervals between replacements → Application: Long aisles, assembly lines, and workbenches requiring consistent visibility. Feature: Fiberglass-reinforced polyester housing with polycarbonate lens → Business Impact: Enhanced impact resistance and long-term durability lowers lifecycle cost and downtime → Application: Harsh industrial spaces where equipment and personnel are at risk of impact. Feature: Entry versatility with 3/4" Myers conduit hubs, zinc, one entry at each end → Business Impact: Flexible installation and easier integration with existing conduit layouts → Application: Retrofit projects and new builds with varied routing. Feature: NEC/CEC compliance and ordinary/non-hazardous area classification → Business Impact: Code-compliant installation reduces compliance risk and accelerates project approvals → Application: General industry facilities in non-hazardous locations needing reliable fluorescent illumination.

Get a Quick Quote for a Eaton EHAR42171012

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton EHAR42171012? Enquire Now

FAQs

EHAR42171012 supports 3/4" Myers conduit hubs with one entry at each end, enabling flexible ceiling-mount installation. Prepare the ceiling junction box, route wiring within the 120–277 VAC range, mount the fixture securely, and connect supply conductors per NEC requirements. Use the end-entry hubs to align with existing conduits and ensure a weatherproof seal for IP66 protection.
This fixture operates on 120–277 VAC, 50/60 Hz, with a 32W wattage drawn across two 4 ft lamps (T8 bi-pin). It is designed for 2-lamp operation and uses a fiberglass-reinforced polyester housing with a polycarbonate lens, delivering robust light output while maintaining energy efficiency.
EHAR42171012 is rated for Ordinary/Non-Hazardous Locations and features IP66 and NEMA 4X enclosures. It is not intended for hazardous location environments. For code compliance in non-hazardous spaces, it provides durable illumination with NEC/CEC alignment.
The fixture aligns with NEC/CEC standards and carries NEMA 4X and IP66 ratings, ensuring suitability for harsh environments. Additional UL certification references exist for the Pauluhn ECOS line, and Eaton provides related datasheets and installation instructions for compliance and performance verification.
The fiberglass-reinforced polyester housing and polycarbonate lens provide impact resistance and long service life, reducing replacement frequency. The fixture’s 4 ft length and 2-lamp design optimize lighting continuity along aisles and work areas, lowering energy waste and maintenance visits while meeting code requirements.
