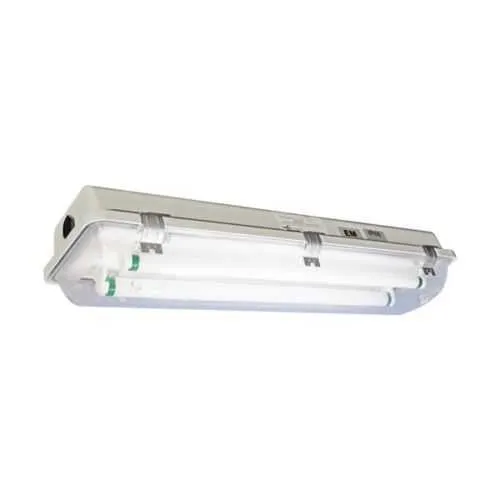

Eaton EHAR42171012S Linear Fluorescent - IP66/4X
Part Number: EHAR42171012S
Quick Summary
Eaton EHAR42171012S is a rugged linear fluorescent light fixture designed for industrial ceilings and general-purpose illumination in demanding facilities. When older fixtures fail in dusty, damp, or high-traffic zones, uptime dips and maintenance costs rise. This Pauluhn ECOS EHAR solution carries NEC/CEC compliance, a NEMA 4X enclosure rating, and IP66 ingress protection to endure washdowns and harsh environments. The 4 ft, two-lamp design uses 32W T8 lamps and a durable fiberglass-reinforced polyester housing, delivering consistent brightness with fewer service calls. By combining a stainless steel latch and zinc conduit hubs with easy end-entry access, it offers reliable performance, straightforward installation, and reduced downtime, helping facilities meet safety standards while controlling operating costs.
Product Information
Extended Description
EHAR42171012S Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent,3/4" Myers hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Stainless steel latch,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42171012S
UPC
662276375659
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Stainless steel latch
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent
Eaton Specification Sheet - EHAR42171012S
Feature: Fiberglass-reinforced polyester housing with a polycarbonate lens and stainless steel latch. Business Impact: Enhanced corrosion resistance and long-term durability reduce maintenance cycles and downtime. Application: Ideal for ceiling-mounted EHAR fixtures in manufacturing floors and warehouses where exposure to dust and moisture is common. Feature: 4 ft, 2-lamp design with 32W T8 bi-pin lamps. Business Impact: Efficient lighting with predictable lumen output lowers energy use and operating costs while maintaining required brightness in large spaces. Application: General area lighting in non-hazardous industrial settings. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Superior water and dust resistance provides reliable operation in washdown zones and tough environments, boosting uptime. Application: Washdown-ready environments and areas requiring robust enclosure protection. Feature: 3/4" Myers conduit hubs, one entry at each end. Business Impact: Quick, flexible wiring and simplified installation reduce project labor and commissioning time. Application: New installs and retrofits in ceilings where space for conduit runs is limited. Feature: Lens material and mounting design (polycarbonate lens, ceiling mounting). Business Impact: Impact-resistant optics and secure mounting improve safety, brightness consistency, and ease of maintenance. Application: Industrial facilities prioritizing dependable illumination and serviceability.
Get a Quick Quote for a Eaton EHAR42171012S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHAR42171012S?
Enquire Now
FAQs
Yes. EHAR42171012S is designed for ceiling mounting with a 53 in length, 4 ft lamp span, and 3/4" Myers conduit hubs at each end. It operates on 120-277 VAC across 50/60 Hz and uses a two-lamp, 32W T8 configuration, facilitating straightforward retrofits into existing industrial ceilings without special adapters.
The fixture uses a 4 ft, two-lamp, 32W T8 bi-pin fluorescent setup and runs on 120-277 VAC at 50/60 Hz. Its polycarbonate lens, fiberglass-reinforced polyester housing, and stainless steel latch contribute to durable operation, while the 53 in length provides ample illumination across large workspaces.
Yes. It features IP66 ingress protection and a NEMA 4X enclosure, designed for washdown areas and demanding environments in ordinary/non-hazardous locations. This ensures protection against water and dust ingress, enabling reliable performance in manufacturing and warehousing settings.
EHAR42171012S adheres to NEC/CEC standards for compliant electrical performance and safety. It carries a NEMA 4X enclosure rating and IP66 protection, with additional UL certification documentation available. This aligns with industry best practices for reliability and regulatory compliance in industrial facilities.
The rugged housing, stainless latch, and end-entry hubs enable quick lamp access and easy service, reducing maintenance downtime. Its energy-efficient 32W, two-lamp design provides reliable illumination with lower energy costs, contributing to a favorable total cost of ownership for facilities prioritizing uptime and safety.
