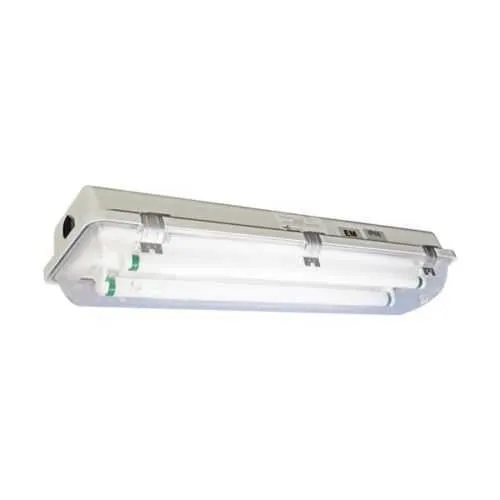

Eaton EHAR42171112 Linear Light Fixture - IP66
Part Number: EHAR42171112
Quick Summary
The Eaton EHAR42171112 linear fluorescent light fixture delivers reliable illumination for industrial facilities and harsh locations. Engineers often face maintenance downtime, corrosion risk, and uneven lighting in challenging environments. With NEMA 4X enclosure, IP66 sealing, and NEC/CEC compliance, this fixture reduces risk and downtime. Ceiling mounting, 4 ft length, and 2-lamp capacity support scalable upgrades while keeping energy use predictable.
Product Information
Extended Description
EHAR42171112 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture,3/4",Myers conduit hubs,stainless steel,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42171112
UPC
662276671928
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers hubs, stainless steel, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent
Eaton Specification Sheet - EHAR42171112
Feature → Business Impact → Application: The 4 ft, 2-lamp, 32W fluorescent configuration provides ample light with efficient energy use, reducing operating costs while maintaining site visibility on production floors. This translates to measurable productivity gains and lower maintenance cycles when compared with less efficient fixtures in high-traffic areas. Application: manufacturing lines and warehouses needing reliable, energy-conscious illumination. Feature → Business Impact → Application: IP66 protection and a NEMA 4X enclosure shield the unit from dust, moisture, and harsh washdown environments, extending service life and reducing replacement intervals. This improves uptime and safety compliance in challenging spaces. Application: cleaning zones, dye rooms, and outdoor-adjacent facilities within industrial plants. Feature → Business Impact → Application: Myer’s stainless steel hubs with one entry at each end simplify wiring and permit flexible ceiling installations, cutting installation time by hours and reducing labor costs. Application: new-builds or retrofits in ceilings with limited access or complex conduit layouts. Feature → Business Impact → Application: Fiberglass-reinforced polyester housing and a polycarbonate lens deliver impact resistance and lens safety, lowering risk of damage from incidental contact and debris. Application: high-traffic manufacturing floors and loading docks where rugged construction is essential. Feature → Business Impact → Application: Wide voltage support (120-277 VAC) and 50/60 Hz compatibility enable single-supply operation across multiple facilities, simplifying procurement and inventory. Application: multi-site deployments in facilities with varied electrical systems. Feature → Business Impact → Application: 32W power with 4 ft length provides balanced lighting coverage and energy efficiency, avoiding over-illumination while meeting code requirements. Application: general lighting upgrades in ordinary/non-hazardous locations.
Get a Quick Quote for a Eaton EHAR42171112
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHAR42171112?
Enquire Now
FAQs
EHAR42171112 supports Myers stainless steel hubs with one entry at each end, enabling flexible wiring configurations for ceiling installations. Ensure proper clearance for conduit entries and follow Myer hub mounting guidelines to maintain IP66 integrity and NEMA 4X protection. This reduces field modification time and ensures consistent sealing around entries.
The fixture is a 2-lamp, 32W unit designed for 120-277 VAC operation at 50/60 Hz. It uses T8 bi-pin lamps and provides reliable illumination across this voltage range, simplifying inventory with a single spec for multiple sites. This compatibility reduces wiring concerns and supports cross-site maintenance planning.
Yes, EHAR42171112 is designed for Ordinary/Non-Hazardous locations. It features a NEMA 4X enclosure and IP66 ingress protection, delivering robust protection against dust and moisture. These ratings support compliant operation in clean-room adjacencies, washdown zones, and general factory environments without special hazardous-area modifications.
The fixture carries NEC/CEC standards, NEMA 4X enclosure rating, and IP66 ingress protection. These certifications ensure electrical safety, reliability in wet or dusty environments, and code-compliant installation across North American facilities, reducing risk during audits and accelerating project sign-off.
Expect longer service intervals due to rugged housing and sealed lens protection, reducing maintenance labor and downtime. The energy-efficient 32W, 4 ft design yields improved lighting uniformity and lower power consumption, contributing to faster ROI through energy savings and reduced replacement costs in high-usage areas.
