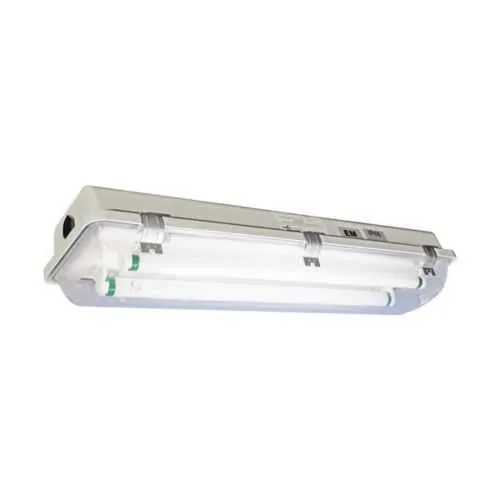

Eaton EHAR42171712T Linear Fluorescent Light Fixture - IP66

Part Number: EHAR42171712T
EHAR42171712T
Manufacturer
Eaton
Part number
EHAR42171712T
Category

Quick Summary

The Eaton EHAR42171712T Linear Fluorescent Light Fixture delivers reliable ceiling illumination for industrial facilities. In harsh environments, long downtime and safety concerns hinder productivity and maintenance costs. This ECOS Pauluhn fixture carries IP66 and NEMA 4X ratings, plus NEC/CEC compliance for ordinary/non-hazardous locations. With a 32-watt, two-lamp design in a fiberglass-reinforced polyester housing and a polycarbonate lens, it combines durability with efficient operation. Maintenance teams benefit from straightforward end-entry access and a 4 ft lamp length, reducing retrofit time. When compliance, durability, and energy efficiency are critical, this fixture enables safer operation across warehouses, factories, and harsh manufacturing environments.

Product Information

Extended Description

EHAR42171712T Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture,3/4",One entry at each end,50/60 Hz,4 ft lamp,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,5-pole terminal block,Ceiling,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42171712T
UPC
662276569317
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
One entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
5-pole terminal block
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent Eaton Specification Sheet - EHAR42171712T
Feature → Business Impact → ApplicationFeature: Dual-lamp 32W, 4 ft T8 bi-pin configuration with a polycarbonate lens. Impact: Delivers bright, energy-efficient illumination with minimal lumen depreciation and uniform coverage. Application: Best suited for warehouses and manufacturing floors where consistent lighting supports safety and productivity.Feature: IP66 ingress protection and NEMA 4X enclosure. Impact: Withstands dust, water, and chemical exposure, reducing failures and maintenance downtime. Application: Washdown areas, coastal facilities, and harsh environments requiring rugged luminaires.Feature: Universal voltage 120-277 Vac with 50/60 Hz. Impact: Simplifies installation across multi-site plants and reduces inventory complexity. Application: Retrofit projects and multi-site deployments in mixed electrical environments.Feature: Fiberglass-reinforced polyester housing with polycarbonate lens. Impact: Improved impact resistance and chemical durability extend service life. Application: Industrial spaces with abrasive or exposure risk.Feature: End-entry at both ends and 5-pole terminal block. Impact: Streamlines wiring and maintenance, cutting install time and improving connection reliability. Application: Tight spaces and high-volume install projects.Feature: Ceiling mounting and 53 in length, 8.5 in width, 5.6 in height; 17 lb weight; two-lamp configuration. Impact: Balanced dimensions and weight for secure installation and flexible mounting options. Application: Varied ceiling heights in warehouses and manufacturing facilities.

Get a Quick Quote for a Eaton EHAR42171712T

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton EHAR42171712T? Enquire Now

FAQs

EHAR42171712T is designed for ceiling mounting with end-entry access at both ends and a 3/4 inch entry size. The 53 inch long fixture houses two 4 ft lamps and a 5-pole terminal block, simplifying wiring and enabling quick, secure installations in standard ceiling grids while minimizing downtime during retrofits.
The fixture carries IP66 ingress protection and a NEMA 4X enclosure, making it resistant to dust, water spray, and harsh chemicals. It is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, ensuring regulatory alignment for most industrial facilities and minimizing project risk.
EHAR42171712T operates on 120–277 Vac and 50/60 Hz, suitable for diverse plant electrical systems. It uses a 32W, two-lamp configuration with T8 bi-pin lamps, and a 4 ft lamp length, enabling simple, scalable deployments across sites with mixed voltage environments.
Yes. IP66 protection combined with a NEMA 4X enclosure and a fiberglass-reinforced polyester housing offers robust resistance to dust, moisture, and chemical exposure, making it well-suited for washdown zones and harsh environments found in manufacturing and processing facilities.
The two-lamp, 32W design reduces energy use while maintaining light output, contributing to lower operating costs. End-entry access and a 5-pole terminal block simplify service and wiring, reducing install time and maintenance downtime, which translates to improved uptime and a faster return on investment.
