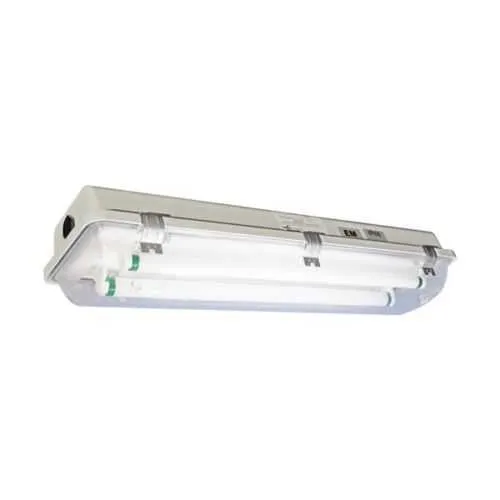

Eaton EHAR42172012 Linear Fluorescent Light Fixture - IP66
Part Number: EHAR42172012
Quick Summary
Eaton EHAR42172012 Linear Fluorescent Light Fixture provides reliable wall-mounted illumination for harsh industrial spaces. Maintenance downtime and moisture ingress commonly derail projects, but this fixture’s rugged housing and sealed entry points help keep installations up and running. It carries NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X rating, giving you proven protection in ordinary locations. With a 4 ft, 2-lamp design consuming 32W at 120–277 Vac and a polycarbonate lens, it integrates with standard electrical distributions and control schemes, simplifying procurement and installation. This makes it a cost-effective choice for OEMs and facility teams seeking durable, scalable lighting in harsh environments.
Product Information
Extended Description
EHAR42172012 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture,3/4" Myers conduit hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Wall,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42172012
UPC
662276586192
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
32W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent
Eaton Specification Sheet - EHAR42172012
IP66 ingress protection and a NEMA 4X enclosure deliver weather- and wash-down resistance, minimizing corrosion risk and reducing unscheduled maintenance in dusty or wet areas. This rugged housing translates into longer service intervals and lower lifecycle costs, making it ideal for manufacturing floors and loading docks. The 4 ft, 2-lamp, T8 bi-pin configuration provides steady illumination with familiar stock lamps, supporting quick lamp replacement and easier inventory management in facilities with mixed lamp bases. Wide voltage compatibility of 120–277 Vac at 50/60 Hz reduces wiring variants and speeds installation, while the Myers conduit hubs and 3/4" entry simplify field routing. Fiberglass-reinforced polyester housing and polycarbonate lens resist impact and chemical exposure, enhancing longevity in harsh environments. Additionally, the fixture aligns with NEC/CEC standards for ordinary/non-hazardous locations, ensuring compliance without special permits. The wall-mount design supports retrofit and new-build projects with flexible placement in corridors and work cells.
Get a Quick Quote for a Eaton EHAR42172012
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHAR42172012?
Enquire Now
FAQs
EHAR42172012 is a 53 inch long, wall-mounted, two-lamp fixture designed for industrial environments. It features 3/4 inch Myers conduit hubs at each end and a 120–277 V, 50/60 Hz electrical range, simplifying field wiring. Use in ordinary/non-hazardous locations with IP66 protection reduces corrosion risk and minimizes downtime during retrofit or new builds.
This fixture uses T8 bi-pin lamps with a total wattage of 32W across two lamps. It operates on 120–277 Vac and supports 50/60 Hz input. The wide voltage range enables compatibility with varied facility power distributions, while the 4 ft length and 53 in overall assembly fit standard mounting footprints and simplify inventory for common fluorescent replacements.
EHAR42172012 is rated for Ordinary/Non-Hazardous Locations and features IP66 ingress protection with a NEMA 4X enclosure. While it offers strong protection against dust and water jets, it is not certified for hazardous locations. Use within non-hazardous areas such as general plant spaces, corridors, and dry-to-wet transition zones per NEC/CEC guidelines.
NEC/CEC compliance ensures the luminaire meets established electrical safety and performance standards for North American facilities. This reduces commissioning risk, supports code-compliant installation in industrial spaces, and streamlines procurement for facilities teams who must maintain regulatory alignment across projects and audits.
The rugged FG-reinforced polyester housing and polycarbonate lens resist impact and chemical exposure, lowering replacement frequency. IP66/NEMA 4X protection reduces maintenance for wash-down zones, while the 2-lamp, 32W design provides efficient lighting with standard T8 inventory. Overall, this translates to lower lifecycle costs and faster return on investment in heavy-use environments.
