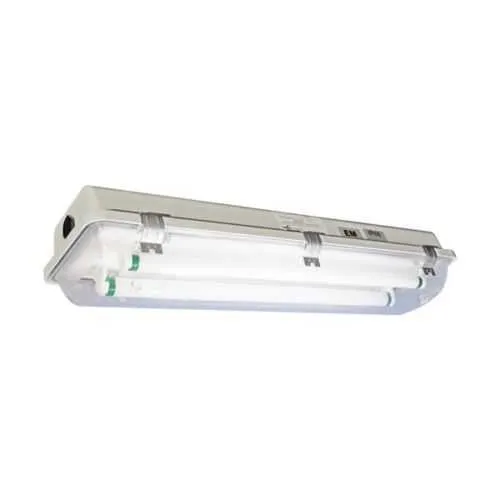

Eaton EHAR42371012L Lighting Fixture - IP66 NEMA 4X
Part Number: EHAR42371012L
Quick Summary
Eaton EHAR42371012L linear fluorescent light fixture provides reliable ceiling illumination for industrial spaces. Facilities wrestle with rugged environments, moisture, and frequent maintenance downtime that disrupt operations. It delivers IP66 ingress protection and a NEMA 4X enclosure, aligned with NEC/CEC compliance for demanding sites. The 4 ft, two-lamp Pauluhn ECOS EHAR configuration with a polycarbonate lens and lamps included reduces installation time and lifecycle cost. Designed for ceiling mounting in ordinary locations yet rugged enough for industrial environments, it supports quick retrofits and scalable lighting strategies. Operating at 120–277 VAC with 50/60 Hz and a 36W rating across two lamps, it aligns with common industrial electrical designs.
Product Information
Extended Description
EHAR42371012L Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture,3/4" Myers conduit hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T8 bi-pin,Fiberglass-reinforced polyester,2-lamp,Lamps included,Ceiling,120-277 Vac,36W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42371012L
UPC
662276455887
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
16.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T8 bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Ceiling
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
36W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent
Eaton Specification Sheet - EHAR42371012L
Feature: Rugged enclosure and seal. Business Impact: Superior protection against dust, water, and corrosion reduces replacement cycles and maintenance costs in harsh environments. Application: Factory floors, loading docks, and outdoor canopies where washdown or exposure is common. Feature: 53 inch, 4 ft form factor with two lamps. Business Impact: Broad coverage with fewer fixtures lowers installed costs and simplifies layout planning. Application: Large open spaces like warehouses and manufacturing cells that require consistent illumination. Feature: Lamp included with T8 bi-pin fluorescent lamps. Business Impact: Quick commissioning and predictable lumen output without extra procurement steps, minimizing downtime. Application: New builds and retrofit projects where fast turnover is essential. Feature: Universal voltage 120–277 VAC, 50/60 Hz. Business Impact: One inventory SKU supports multiple regional electrical codes, reducing stocking complexity and project costs. Application: Global facilities and multi-site deployments. Feature: End-entry Myers conduit hubs (3/4 inch) and two-end entry design. Business Impact: Streamlined wiring and improved enclosure integrity, lowering installation time and field errors. Application: Ceiling-mounted installations in mechanical rooms and service corridors. Feature: Polycarbonate lens and fiberglass-reinforced polyester housing. Business Impact: Impact resistance and long-term durability reduce maintenance cycles and replacement risk. Application: Environments with vibration, heat, or potential impact; ideal in plant and warehouse settings. Feature: Lamps included. Business Impact: Immediate readiness at startup, eliminating separate lamp sourcing and delays. Application: Retrofit projects or new installations seeking fast deployment.
Get a Quick Quote for a Eaton EHAR42371012L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHAR42371012L?
Enquire Now
FAQs
EHAR42371012L is rated for Ordinary/Non-Hazardous Locations and features IP66 ingress protection with a NEMA 4X enclosure. It is not approved for Hazardous Locations. For hazardous-area applications, Eaton’s ECOS line offers configurations specifically certified for those environments. Always verify local codes and classification in your facility before selection.
The fixture is ceiling-mounted with 3/4 inch Myers conduit hubs and one entry at each end, simplifying wiring and reducing field assembly time. Its 53 inch length and two-lamp configuration provide broad coverage, while lamps are included to avoid separate procurement steps. These features collectively shorten installation schedules and minimize commissioning delays.
EHAR42371012L operates on 120–277 VAC with a 50/60 Hz frequency, drawing 36W across two lamps. It uses T8 bi-pin fluorescent lamps and has a 4 ft length with a polycarbonate lens and fiberglass-reinforced polyester housing. This universal voltage range supports multi-region installations without rewiring.
The fixture complies with NEC/CEC standards and is rated IP66 with a NEMA 4X enclosure, suitable for ordinary-location environments. UL certification references are available via Eaton and UL pages. These certifications provide regulatory assurance, practical installation guidance, and alignment with industry best practices for non-hazardous industrial spaces.
With lamps included, a durable fiberglass-reinforced polyester housing, and a polycarbonate lens, maintenance intervals are extended and downtime is minimized. The robust IP66/NEMA 4X protection reduces corrosion and ingress-related failures, delivering lower replacement costs and improved lifecycle ROI in warehouses and assembly plants.
