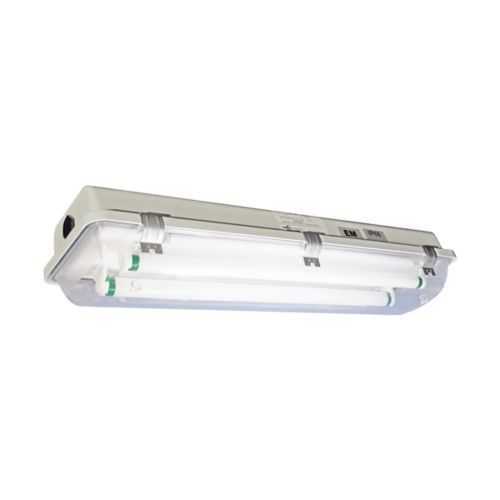

Eaton EHAR42572012EMT3 Linear Light Fixture - IP66
Part Number: EHAR42572012EMT3
Quick Summary
Eaton EHAR42572012EMT3 linear fluorescent light fixture provides reliable wall-mounted illumination for industrial interiors. When downtime and hazardous environments threaten uptime, you need a rugged, easy-to-service luminaire. This model carries IP66 and NEMA 4X protection along with NEC/CEC compliance, making it suitable for ordinary locations and harsh washdown zones. Its 54W, 4 ft, 2-lamp design, emergency battery back-up, and 277V maximum capability help reduce energy use while enhancing safety during outages. Supported by 120–277 VAC, 50/60 Hz operation, it also offers straightforward retrofit potential for existing Pauluhn ECOS installations, delivering business value through durability and reliable performance.
Product Information
Extended Description
EHAR42572012EMT3 Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluor,3/4" Myers hubs,zinc,1 entry each end,4 ft,Polycarb lens,T5HO bi-pin,Fiberglass-reinforced polyester,2-lamp,battery back-up,high lumen,1 lamp,277V max,test switch,Wall,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42572012EMT3
UPC
662276496354
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T5HO bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
54W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Emergency battery back-up ballast, high lumen, one lamp, 277V maximum, test switch
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures UL certification
IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent
Eaton Specification Sheet - EHAR42572012EMT3
Feature is 54W power consumption on a 4 ft, 2-lamp layout → Business impact is reduced energy use and lower operating costs per meter of lighting in large spaces → Application is warehouses and manufacturing floors that demand consistent, efficient illumination. Feature is IP66 and NEMA 4X enclosure → Business impact is heightened protection against dust, water ingress, and harsh washdown cycles → Application is washdown areas and outdoor-adjacent facilities where reliability matters. Feature is emergency battery back-up ballast → Business impact is maintained egress and safety during power outages, reducing risk and downtime → Application is exit routes and emergency lighting protocols in production facilities. Feature is T5HO bi-pin lamps with polycarbonate lens and fiberglass-reinforced polyester housing → Business impact is durable, chemical-resistant performance with high luminous efficacy and long service life → Application is corrosive or engagement spaces where lens and housing integrity are critical. Feature is 3/4" Myers conduit hubs, zinc, one entry at each end → Business impact is flexible, code-compliant wiring and faster installation → Application is retrofit projects and new builds requiring simple wiring topology. Feature is 120–277 VAC, 50/60 Hz compatibility → Business impact is broad electrical compatibility enabling quick, global deployments → Application is multinational sites and updated facilities seeking standardization.
Get a Quick Quote for a Eaton EHAR42572012EMT3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHAR42572012EMT3?
Enquire Now
FAQs
The EHAR42572012EMT3 is designed for universal 120–277 VAC operation with 50/60 Hz. This broad voltage range enables simple integration across global facilities, reduces the need for separate drivers, and supports straightforward retrofits in existing Pauluhn ECOS installations without extensive rewiring.
This fixture uses zinc Myers conduit hubs with one entry at each end and 3/4" entry size, aiding flexible wiring routes. Wall mounting suits a variety of layouts, and the end-entry configuration simplifies wiring in constrained spaces while meeting NEC/CEC requirements for safe, code-compliant installation.
EHAR42572012EMT3 features an IP66 rating and a NEMA 4X enclosure, plus an Ordinary/Non-Hazardous area classification. This combination makes it suitable for non-hazardous environments and washdown zones, while still delivering robust protection against moisture, dust, and corrosion in harsh industrial spaces.
The unit includes an emergency battery back-up ballast for safe operation during outages, a polycarbonate lens for impact resistance, and a fiberglass-reinforced polyester housing for chemical and environmental durability. With a 54W, 2-lamp design, service intervals are extended and replacement parts are readily available through Eaton's Pauluhn ECOS line.
At 54W for a 4 ft, 2-lamp luminaire, the EHAR42572012EMT3 delivers meaningful energy savings over traditional ballast configurations. When paired with emergency back-up and durable construction, facilities benefit from lower maintenance costs, reduced downtime, and improved safety compliance, contributing to a favorable total cost of ownership in high-use industrial spaces.
