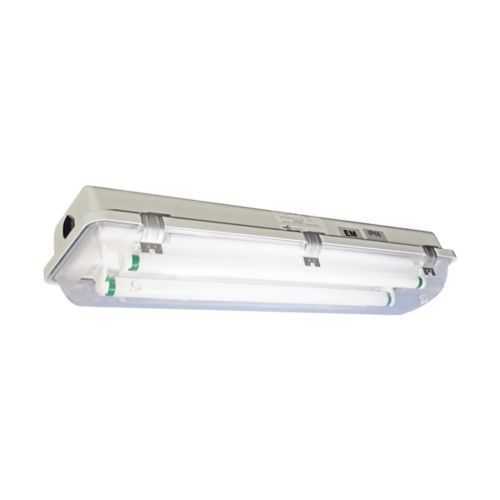

Eaton EHAR42572012S Linear Fluorescent Light Fixture - IP66
Part Number: EHAR42572012S
Quick Summary
The Eaton EHAR42572012S linear fluorescent light fixture delivers reliable illumination for industrial facilities. It is designed to minimize maintenance downtime in demanding environments where washdowns and dust are common. Certified for NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X enclosure, it excels in Ordinary/Non-Hazardous locations while delivering rugged performance. With 120–277 Vac operation and a 4 ft, two-lamp configuration, it fits a wide range of plant lighting needs and supports cost-effective, long-life industrial lighting.
Product Information
Extended Description
EHAR42572012S Eaton: Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent,3/4",Myers hubs,zinc,one entry at each end,4 ft,Polycarbonate lens,T5HO bi-pin,Fiberglass-reinforced polyester,2-lamp,Stainless steel latch,Wall,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn ECOS EHAR linear fluorescent light fixture
Catalog Number
EHAR42572012S
UPC
662276646964
Product Length/Depth
53 in
Product Height
5.6 in
Product Width
8.5 in
Product Weight
17 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Lamp length
4 ft
Light type
T5HO bi-pin
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Entry type
Myers conduit hubs, zinc, one entry at each end
Wattage
54W
Number of lamps
2-lamp
Material
Fiberglass-reinforced polyester
Lens material
Polycarbonate
Special features
Stainless steel latch
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent brochure
Crouse-Hinds series Pauluhn ECOS Linear Fluorescent catalog page
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
Pauluhn ECOS Hazardous, Harsh and Marine Linear Fluorescent Light Fixtures Canadian certification
IF LBL1580 - Pauluhn ECOS EHAR Series Linear Fluorescent
Eaton Specification Sheet - EHAR42572012S
Feature → Business Impact → Application: Fiberglass-reinforced polyester housing with a polycarbonate lens and a stainless steel latch provides a durable enclosure that resists corrosion and impact, reducing unscheduled maintenance and warranty costs in harsh environments. Application: wall-mounted, 4 ft fixtures in manufacturing or distribution centers demanding robust enclosure integrity. Feature → Business Impact → Application: IP66 ingress protection and a NEMA 4X rated enclosure protect internal components from water, dust, and washdowns, lowering downtime and extending service life in washdown zones and dusty facilities. Application: factories, warehouses, and maintenance corridors requiring reliable operation under cleaning cycles. Feature → Business Impact → Application: 54W, 2-lamp fluorescent configuration with T5HO bi-pin lamps delivers bright, energy-efficient illumination with predictable lumen output, contributing to lower energy costs and reduced heat load. Application: general area lighting along production lines and workstations. Feature → Business Impact → Application: End-entry wiring via 3/4" Myers conduit hubs (zinc), one entry at each end allows flexible installation and simplified field wiring. Application: retrofit projects or new builds where wiring access from multiple sides is needed. Feature → Business Impact → Application: 120-277 Vac, 50/60 Hz compatibility ensures broad electrical compatibility and reduces inventory complexity. Application: global facilities with diverse power profiles.
Get a Quick Quote for a Eaton EHAR42572012S
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHAR42572012S?
Enquire Now
FAQs
EHAR42572012S supports end-entry wiring via 3/4" Myers conduit hubs, zinc, with one entry at each end. This arrangement simplifies routing of power and allows left- or right-side connections depending on your ceiling or wall layout. The fixture is designed for wall mounting in 4 ft configurations, minimizing space while maintaining accessibility for ballast maintenance and lamp replacement.
This Eaton Pauluhn ECOS EHAR model runs on 120-277 Vac at 50/60 Hz and uses a 54W, 2-lamp fluorescent configuration with T5HO bi-pin lamps. The 4 ft length fits standard housings, offering bright, even illumination with low energy draw. Compatible with regular power distribution and common luminaires, it minimizes retrofit costs in new installs or upgrades.
Yes, EHAR42572012S features a fiberglass-reinforced polyester housing, polycarbonate lens, and stainless steel latch, delivering IP66 ingress protection and a NEMA 4X enclosure. While rated for Ordinary/Non-Hazardous locations, it withstands dust, water exposure, and cleaning cycles typical in factories, warehouses, and maintenance areas, providing long service life with minimal maintenance.
EHAR42572012S adheres to NEC/CEC standards and carries IP66 ingress protection and a NEMA 4X enclosure rating, ensuring robust environmental resistance. The area classification confirms suitability for Ordinary/Non-Hazardous Locations, supporting regulatory compliance across plant floors, mezzanines, and service corridors.
Selecting EHAR42572012S reduces maintenance downtime with durable components, lowers energy use through 54W operation, and simplifies installation with a standard 4 ft, wall-mountable design and end-entry wiring. The rugged housing and latch minimize service calls in harsh environments, while NEC/CEC compliance and IP66/NEMA 4X ratings help close compliance gaps across multiple facilities.
