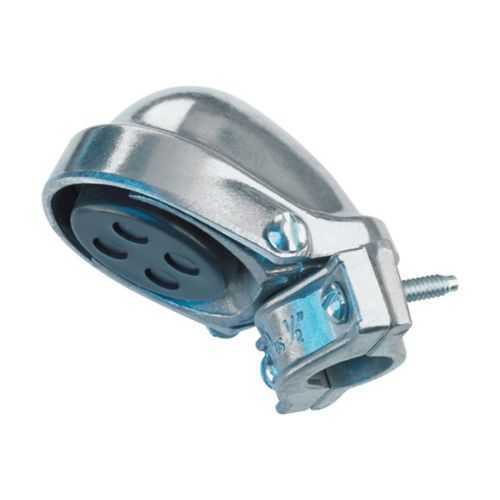

Eaton EHC5 service entrance cap - NEC/CEC
Part Number: EHC5
Quick Summary
The Eaton EHC5 service entrance cap is a robust clamp-type cap designed to seal 1-1/2" service entrances on electrical enclosures. This reduces installation retries and helps keep critical connections clean from dust, moisture, and accidental contact during retrofit or new-build projects. The design complies with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with additional Canadian certification options for cross-border projects. By leveraging aluminum die-cast construction and a precise 1-1/2" trade size, it delivers durable service-entry protection with straightforward installation and predictable performance for field crews.
Product Information
Extended Description
EHC5 Eaton: Eaton Crouse-Hinds series EHC service entrance cap, Aluminum die cast, 1-1/2", Clamp type
Product Name
Eaton Crouse-Hinds series EHC service entrance cap
Catalog Number
EHC5
UPC
662277002059
Product Length/Depth
4.76 in
Product Height
2.31 in
Product Width
3.34 in
Product Weight
0.53 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Clamp
Material
Aluminum die cast
Trade size
1-1/2"
Crouse-Hinds series Service Entrance Heads and Caps catalog page
Service Entrance Heads/Caps Canadian certification
Service Entrance Heads/Caps Canadian certification
Eaton Specification Sheet - EHC5
Feature: Aluminum die cast construction provides corrosion resistance and lightweight durability. Business Impact: Extends service life in harsh environments while reducing handling strain on technicians. Application: Ideal for service entrance caps in outdoor or damp indoor locations where reliability matters. Feature: 1-1/2" trade size ensures standard compatibility with common service conduits. Business Impact: Minimizes rework and stocking complexity, streamlines commissioning. Application: Suitable for typical residential or commercial feeders requiring a standard cap. Feature: Clamp type mounting simplifies installation and secure seating. Business Impact: Faster fit-up reduces labor time and rework, improving project timelines. Application: Fits Eaton Crouse-Hinds service entrance systems across panel enclosures. Feature: Precise dimensions 4.76 in length, 2.31 in height, 3.34 in width. Business Impact: Predictable form factor supports cavity planning and enclosure routing. Application: Aligns with common panel footprints for easier retrofits. Feature: Weight of 0.53 lb supports easy handling and safer field installation. Business Impact: Reduces worker fatigue and accident risk during mounting. Application: Beneficial for single-person installation crews. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Ensures regulatory alignment and reduces risk of noncompliant work. Application: Meets building codes for standard commercial/industrial environments. Feature: Compatibility with the Eaton/Crouse-Hinds line ensures seamless system integration. Business Impact: Simplifies procurement and life-cycle maintenance. Application: Used with broader service entrance caps and heads in existing installations.
Get a Quick Quote for a Eaton EHC5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHC5?
Enquire Now
FAQs
Power must be off and the enclosure inspected. Align the EHC5 with the service entrance opening, engage the clamp securely, then tighten the provided mounting mechanism until there is no movement. Verify the cap seats fully against the enclosure to prevent ingress and perform a final torque check as required by local codes.
Yes. The EHC5 meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, ensuring regulatory compliance for standard commercial and light-industrial installations. Cross-border certifications are also documented through Canadian certification listings.
The EHC5 measures 4.76 inches in length, 2.31 inches in height, and 3.34 inches in width, with a product weight of 0.53 pounds. These dimensions support compatibility with typical enclosure footprints and ease of handling during installation.
The EHC5 is designed for service entrance heads and caps in conduit systems, particularly where a 1-1/2 inch trade size cap is required. It is well-suited for panel and service entrance terminations in ordinary-location environments and can be integrated within Eaton Crouse-Hinds lineups.
The Eaton specification sheet for EHC5 is available on Eaton's site (EHC5.pdf), and Canadian certification details are provided via UL/Canada listings in the downloads. The product page also links to a Crouse-Hinds service entrance catalog page for broader context.
