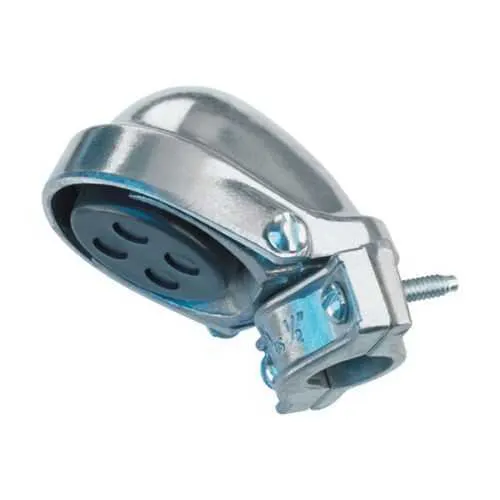

Eaton EHC7 Service Entrance Cap - Aluminum Die Cast Clamp
Part Number: EHC7
Quick Summary
The Eaton Crouse-Hinds EHC7 service entrance cap protects feeder terminations in electrical enclosures and service heads. This aluminum die-cast clamp-type cap is designed for a 2-1/2 inch trade size, delivering robust mechanical protection in industrial environments. In many installations, mismatched caps or brittle materials lead to moisture intrusion and downtime, but the EHC7 mitigates these risks with durable construction and precise fit. It complies with NEC/CEC standards for ordinary/non-hazardous locations, and UL certification is documented for reliability. The combination of a lightweight aluminum body and Eaton engineering supports faster installation, reduced maintenance, and consistent performance in harsh plant settings, while remaining compatible with other Crouse-Hinds service entrance components.
Product Information
Extended Description
EHC7 Eaton: Eaton Crouse-Hinds series EHC service entrance cap, Aluminum die cast, 2-1/2", Clamp type
Product Name
Eaton Crouse-Hinds series EHC service entrance cap
Catalog Number
EHC7
UPC
662277002073
Product Length/Depth
7.2 in
Product Height
3.3 in
Product Width
4.95 in
Product Weight
3 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Type
Clamp
Material
Aluminum die cast
Trade size
2-1/2"
Crouse-Hinds series Service Entrance Heads and Caps catalog page
Service Entrance Heads/Caps UL certification
Service Entrance Heads/Caps UL certification
Eaton Specification Sheet - EHC7
Feature Aluminum die cast body → Business Impact Durable, corrosion resistant enclosure protection → Application Fits service entrance heads with long service life in harsh environments. Feature Clamp type design → Business Impact Quick, secure installation reduces现场 labor and commissioning time → Application Ideal for fast field assembly in panel and enclosure assemblies. Feature 2-1/2 inch trade size → Business Impact Standardized compatibility with common conduit fittings → Application Streamlined procurement and interchangeability within Eaton Crouse-Hinds family. Feature Weight 3 lb → Business Impact Easier handling and safer on-site installation → Application Beneficial for teams performing overhead and confined-space work. Feature Dimensions 7.2 in L × 3.3 in H × 4.95 in W → Business Impact Clear enclosure sealing and space planning → Application Works with a range of service entrance configurations. Feature Area Classification Ordinary/Non-Hazardous Locations → Business Impact Regulatory alignment and safer operation → Application Suitable for general industrial and commercial environments under NEC/CEC. Feature Standards NEC/CEC → Business Impact Compliance confidence and standard-driven performance → Application Ensures code-conforming protection across project scopes.
Get a Quick Quote for a Eaton EHC7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EHC7?
Enquire Now
FAQs
Power must be off before installation. Verify compatibility with the enclosure and service entrance heads, align the clamp with the mounting points, and secure using the appropriate screws or fasteners. Check seal integrity and perform a field test to confirm a proper enclosure fit. This clamp-type cap is designed for straightforward installation within the Eaton Crouse-Hinds family.
Key specs include catalog number EHC7, trade size 2-1/2 inches, aluminum die cast body, length 7.2 inches, height 3.3 inches, width 4.95 inches, and weight 3 pounds. It is a clamp type cap designed for ordinary location use under NEC/CEC standards. Material and dimensions support reliable sealing and robust mechanical protection for service entrances.
Yes. The EHC7 is rated for ordinary/non-hazardous locations and follows NEC/CEC standards. This makes it appropriate for typical industrial and commercial service entrance installations where standard enclosure protection and reliable termination coverage are required.
The EHC7 aligns with NEC/CEC standards and is listed for service entrance heads and caps. UL certification information is available through Eaton and UL reference pages, and the datasheet validates material, dimensions, and compliance for installation in compliant electrical systems.
The aluminum die-cast construction provides durable performance with low corrosion risk, reducing replacement frequency. The clamp design speeds installation, cutting field labor and downtime. Compatibility with other Eaton/Crouse-Hinds components minimizes spare parts and simplifies maintenance, delivering measurable savings over the cap’s lifecycle.
