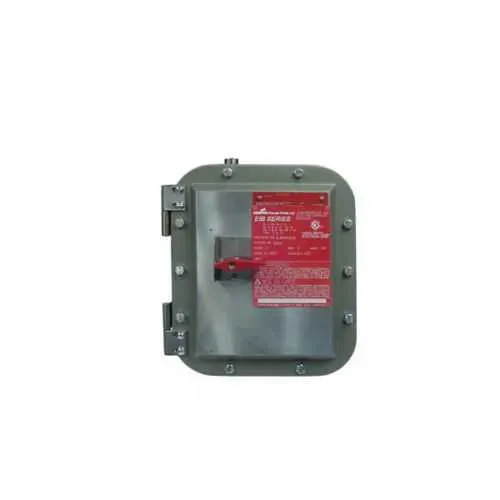

Eaton EIBB3060 S146 Explosionproof Circuit Breaker 600 Vac
Part Number: EIBB3060 S146
Quick Summary
The Eaton EIBB3060 S146 Explosionproof circuit breaker protects electrical systems in hazardous-location environments. Engineers seeking reliable protection face downtime and safety risks when equipment is not properly certified or mounted in corrosive or flammable settings. This model aligns with NEC/CEC standards and UL listings for hazardous locations, and it carries NEMA ratings 3, 3R, 4, 7, and 9 for rugged enclosures. Built for industrial service, its copper-free aluminum enclosure, bolted/ground joint cover, and insulated neutral lug deliver durable performance in demanding conditions. The 60 A, three-pole EG frame design supports broad applicability, while the 600 Vac rating enables robust protection across high-energy systems. This supports compliance and quick maintenance, reducing total cost of ownership.
Product Information
Extended Description
EIBB3060 S146 Eaton: Eaton Crouse-Hinds series EIB circuit breaker, 60A, EG frame type, Bolted/ground joint cover construction, Copper-free aluminum, Cutler-Hammer breaker, Three-pole, Insulated neutral lug, 600 Vac
Product Name
Eaton Crouse-Hinds series EIB circuit breaker
Catalog Number
EIBB3060 S146
UPC
662276332225
Product Length/Depth
12.53 in
Product Height
16.53 in
Product Width
9.75 in
Product Weight
58 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class I, Zone 2 Class I, Division 2 Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R 4 7 9
Enclosure
With circuit breaker
Amperage Rating
60 A
Voltage rating
600 Vac
Number of poles
Three-pole
Circuit breaker frame type
EG
Enclosure cover construction
Bolted/ground joint
Enclosure material
Copper-free aluminum
Manufacturer
Cutler-Hammer
Special features
Insulated neutral lug
SP3D Design Package - EIB Explosionproof Compact Circuit Breakers
EIB Series Explosionproof Compact Circuit Breakers flyer
EIB Series Explosionproof Compact Circuit Breakers catalog page
EIB Explosionproof Compact Circuit Breakers UL certification
EIB Explosionproof Compact Circuit Breakers UL certification
IF 1501 - EIB Series Circuit Breakers and Enclosures
Eaton Specification Sheet - EIBB3060 S146
Explosionproof enclosure and copper-free aluminum construction deliver corrosion resistance and ignition-source control, reducing maintenance cycles and extending service life in chemical plants, refineries, and offshore facilities. This translates to lower total cost of ownership and safer operations in hazardous environments. The 60 A, three-pole design paired with a 600 Vac rating enables precise current protection and reliable interruption for feeders and downstream devices, improving system reliability and reducing nuisance tripping in demanding environments. Bolted/ground joint enclosure construction plus an insulated neutral lug simplify field installation, minimize grounding issues, and support cleaner wiring runs during retrofits or new builds. NEC/CEC compliance, UL hazardous-location listings, and NEMA ratings 3, 3R, 4, 7, 9 provide a proven safety envelope, helping procurement meet regulatory requirements with confidence. In practice, this means faster approvals, easier maintenance planning, and safer daily operations across oil & gas, chemical processing, and mining sites. The EG frame compatibility with the EIB series ecosystem adds installation flexibility and stock flexibility for distributors and contractors alike, while the 12.53 in length, 16.53 in height, and 9.75 in width dimensions help with panel layout and enclosure planning.
Get a Quick Quote for a Eaton EIBB3060 S146
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EIBB3060 S146?
Enquire Now
FAQs
The EIBB3060 S146 is designed for areas classified as Hazardous/Classified Locations and supports NEC/CEC compliance with UL listings for hazardous environments. It uses a copper-free aluminum enclosure, insulated neutral lug, and a bolted/ground joint cover to maintain integrity in volatile conditions. Ideal for oil and gas facilities, chemical plants, and other risk-prone sites where rigorous protection and safe maintenance are essential.
The 60 A current rating ensures appropriate protection for feeders and downstream devices, while the 600 Vac voltage rating supports high-energy systems typical in industrial power distribution. This pairing helps achieve proper protective coordination, minimizes voltage-related nuisance trips, and simplifies breaker coordination with upstream protection in hazardous locations.
Yes. The EIBB3060 S146 uses the EG frame type and is intended for use with compatible EN/IEC enclosure assemblies that accept bolted/ground joint covers. The three-pole configuration and insulated neutral lug further align with common EIB series installations, enabling straightforward retrofits and consistent field installation practices.
This breaker aligns with NEC/CEC standards and UL hazardous-location listings, with NEMA ratings including 3, 3R, 4, 7, and 9. Its area classification is Hazardous/Classified Locations, and the combination of UL certification and these ratings supports regulatory compliance, workplace safety, and reliable performance in challenging environments.
Official resources include the IF 1501 installation sheet, the SP3D design package for EIB explosionproof breakers, and the Eaton specification sheet for EIBB3060 S146. Additional references include catalog pages and 3D models to aid layout planning and procurement, ensuring technicians have access to up-to-date guidance and documentation during install and servicing.
