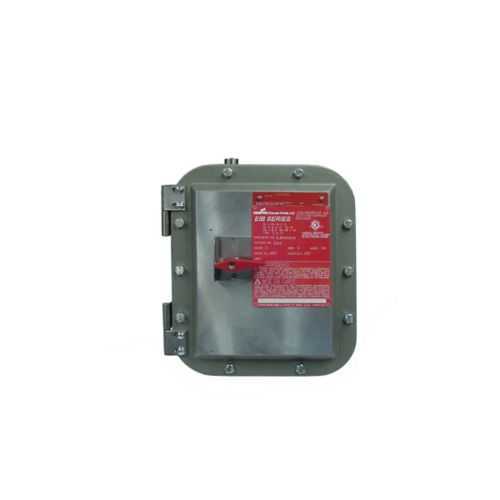

Eaton EIBB3100 Explosionproof Circuit Breaker - Hazardous
Part Number: EIBB3100
Quick Summary
The Eaton Crouse-Hinds series EIB circuit breaker protects electrical circuits in hazardous locations while delivering reliable control. Installers often face downtime and noncompliance in explosion-risk zones; this unit mitigates those challenges with rugged construction and proven ratings. Key certifications include NEC/CEC compliance and hazardous-location classifications (Class I, Division 1/2; Zone 1/2), along with compatible NEMA ratings 3, 3R, 4, 7, 9. With a 100 A rating and 600 Vac capability, the EG frame unit supports safer, code-compliant installations that reduce maintenance efforts and boost overall plant reliability. Copper-free aluminum enclosure and bolted/ground joint cover offer durability and easier field service, aligning with modern automation projects and green-field expansions.
Product Information
Extended Description
EIBB3100 Eaton: Eaton Crouse-Hinds series EIB circuit breaker, 100A, EG frame type, Bolted/ground joint cover construction, Copper-free aluminum, Cutler-Hammer breaker, Three-pole, 600 Vac
Product Name
Eaton Crouse-Hinds series EIB circuit breaker
Catalog Number
EIBB3100
UPC
662276065192
Product Length/Depth
12.53 in
Product Height
16.53 in
Product Width
9.75 in
Product Weight
60 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
3 3R 4 7 9
Enclosure
With circuit breaker
Amperage Rating
100 A
Voltage rating
600 Vac
Number of poles
Three-pole
Circuit breaker frame type
EG
Enclosure cover construction
Bolted/ground joint
Enclosure material
Copper-free aluminum
Manufacturer
Cutler-Hammer
SP3D Design Package - EIB Explosionproof Compact Circuit Breakers
EIB Series Explosionproof Compact Circuit Breakers flyer
EIB Series Explosionproof Compact Circuit Breakers catalog page
EIB Explosionproof Compact Circuit Breakers Canadian certification
EIB Explosionproof Compact Circuit Breakers Canadian certification
IF 1501 - EIB Series Circuit Breakers and Enclosures
Eaton Specification Sheet - EIBB3100
Feature: Copper-free aluminum enclosure and bolted/ground joint cover provide corrosion resistance and secure mounting in harsh environments. Business impact: reduces corrosion-related downtime and simplifies service; Application: outdoor substations and chemical processing facilities where enclosure integrity matters. Feature: 100 A, 600 Vac, three-pole protection supports medium-sized feeders with full voltage rating. Business impact: enables safer distribution and better short-circuit handling; Application: motor feeds and distribution panels in hazardous areas. Feature: EG frame and three-pole configuration promotes standardization and compatibility with Eaton’s EIB family. Business impact: lower procurement complexity and faster installation. Application: retrofit projects and new builds. Feature: NEC/CEC compliance and hazardous-location ratings (Class I, Division 1/2; Zone 1/2) provide regulatory assurance. Business impact: simpler audits and reduced risk. Application: safety-critical installations. Feature: Bolted/ground joint enclosure enables secure sealing and easier field maintenance. Business impact: minimizes leak paths and supports long service life. Application: rugged industrial environments. Feature: Documentation resources including 3D design packages, instruction sheets, and datasheets streamline installation and commissioning. Business impact: reduces design time and speeds time-to-operation. Application: engineering and procurement workflows.
Get a Quick Quote for a Eaton EIBB3100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EIBB3100?
Enquire Now
FAQs
The EIBB3100 uses an EG frame with a bolted/ground joint enclosure, designed for three-pole mounting in hazardous locations. Its copper-free aluminum enclosure provides corrosion resistance, while the bolted joint simplifies sealing and field servicing. Compatible with other EIB series components to streamline interlocks and panel integration.
Rated at 100 A and 600 Vac with a three-pole configuration, the EIBB3100 delivers reliable protection for feeders and motors in hazardous zones. While trip curves vary by device version, its robust EG frame construction supports stable operation under typical industrial fault conditions, aligning with NEC/CEC requirements for high-integrity protection.
Ideal for oil and gas, chemical processing, and other process industries operating in hazardous locations, the EIBB3100 provides compliant circuit protection for feeders, distribution panels, and motor control centers. Its explosionproof rating and rugged aluminum enclosure support long service life in harsh environments.
The EIBB3100 carries NEC/CEC standards compliance with hazardous-location ratings including Class I, Division 1/2 and Zone 1/2, plus NEMA ratings 3, 3R, 4, 7, 9. These certifications facilitate code-compliant installations and simplify audits across North American facilities.
Investing in the EIBB3100 yields durability and lower lifecycle costs due to copper-free aluminum construction and a bolted/ground joint enclosure that resists corrosion. Availability of documentation (IF1501 instruction sheet, spec sheets, 3D models) speeds commissioning, reduces downtime, and improves overall return on investment over traditional metal breakers.
