Eaton EL10045 EMT Elbow - 45° Steel, NEC/CEC
Part Number: EL10045
Quick Summary
Eaton EL10045 EMT elbow provides a 45° steel bend for 1" EMT conduit runs. Installers often struggle with misaligned bends and weak grounding at fittings, which can trigger rework and code issues. This elbow carries NEC/CEC compliance and UL certification for EMT fittings, with suitability for Ordinary/Non-Hazardous Locations. Designed as part of the Crouse-Hinds series, it offers predictable fit, corrosion resistance, and durable sealing at the joint, streamlining procurement and repair. Engineered for industrial environments, it aligns with standard EMT accessories and minimizes field adjustments, enabling faster cable runs. The 1" trade size and steel construction deliver a robust, long-life solution that supports consistent installations across facilities and reduces total cost of ownership.
Product Information
Extended Description

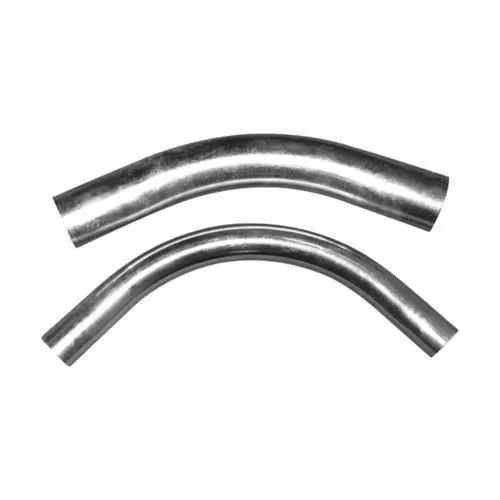

EL10045 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 45°, 1"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL10045
UPC
662277041393
Product Length/Depth
8.25 in
Product Height
1.2 in
Product Width
1.2 in
Product Weight
0.61 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
45° angle
Trade size
1"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Eaton Specification Sheet - EL10045
45° angle and steel construction → Improves routing accuracy and durability → Ideal for 1" EMT conduit runs in industrial facilities. 1" trade size compatibility with EMT conduit → Reduces need for adapters and rework → Accelerates project timelines in commercial and manufacturing sites. Crouse-Hinds series compatibility → Ensures consistent fit with Eaton accessories and predictable stock planning → Lowers procurement complexity and inventory carrying costs. NEC/CEC compliance and UL certification → Mitigates regulatory risk and speeds approval cycles → Supports safe installations in ordinary/non-hazardous locations across plants. Weight and dimensions tuned for field handling → Easier lifting, alignment, and installation in tight spaces → Minimizes installation fatigue and improves throughput on busy job sites. Robust steel construction and 8.25 in length → Enhanced durability against impact and vibration → Reduces maintenance calls and replacement cycles in critical electrical rooms.
Get a Quick Quote for a Eaton EL10045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL10045?
Enquire Now
FAQs
To install EL10045, align the elbow with the existing 1" EMT conduit run and insert into compatible EMT fittings or conduit bodies. Secure with standard set-screw connectors or clamps specified for EMT installations, ensuring the 45° bend maintains the intended routing. Verify that the joint is fully seated and the conduit is properly grounded per NEC/CEC guidelines. This design fits standard EMT accessories, minimizing the need for adapters during retrofit or new builds.
EL10045 features a 45° angle, 1" trade size, and is made from steel. It is designed for EMT conduit, with overall length of 8.25 in, width and height of 1.2 in, and weight around 0.61 lb. It supports ordinary/non-hazardous location installation and adheres to NEC/CEC standards, making it suitable for industrial and commercial electrical installations.
Yes. EL10045 is specified for Ordinary/Non-Hazardous Locations and is designed to meet NEC/CEC requirements. Its steel construction and 1" EMT compatibility make it suitable for general industrial and commercial conduit runs where risk is non-hazardous, ensuring reliable performance in typical factory or building infrastructure projects.
EL10045 complies with NEC/CEC standards and carries UL certification for EMT elbows, reflecting its suitability for compliant installations. It is part of the Eaton Crouse-Hinds series and is intended for ordinary/non-hazardous locations, with a UPC of 662277041393 and catalog EL10045 for traceability and procurement control.
Using EL10045 reduces field adjustments thanks to its precise 45° bend and standard 1" EMT fit, accelerating installation and documentation workflows. Its durable steel construction resists wear in busy environments, lowering maintenance and replacement intervals. Stocking a proven Eaton component also simplifies procurement and supports quicker project turnover and total cost of ownership improvements.
