Eaton EL10090 EMT Elbow - 90° Steel, NEC/CEC Certified
Part Number: EL10090
Quick Summary
Eaton EL10090 EMT elbow is a steel 90° conduit fitting for quick, reliable electrical conduit installations in commercial and industrial wiring. Field work often battles misalignment, space constraints, and non–code compliant bends; this elbow delivers precise turns and consistent threading to reduce rework. It is designed to meet NEC/CEC standards and is appropriate for Ordinary/Non-Hazardous Locations, supporting safe, code-compliant installations. As part of the Crouse-Hinds series, it integrates with standard EMT systems, accelerating routing and simplifying splices. The product’s robust steel construction also contributes to long-term durability, while its compact form improves clearance in tight enclosures, delivering meaningful cost savings in project labor and maintenance cycles.
Product Information
Extended Description

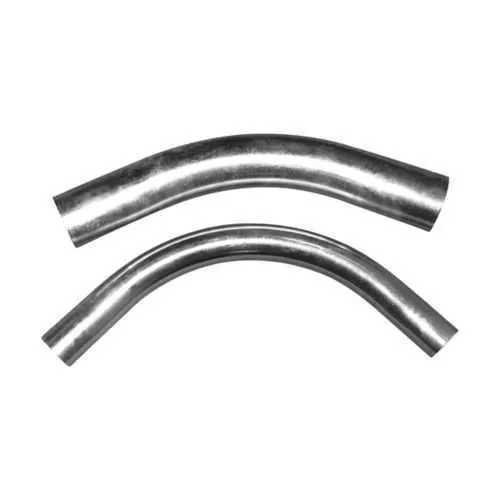

EL10090 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 90°, 1"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL10090
UPC
662277041294
Product Length/Depth
9 in
Product Height
9 in
Product Width
1 in
Product Weight
0.84 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
90° angle
Trade size
1"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Eaton Specification Sheet - EL10090
Feature: Steel construction provides rugged mechanical protection for wiring in conduit runs. Business impact: Reduces risk of impact damage and extends service life in demanding environments. Application: Ideal for high-traffic industrial settings and exposed installations where durability matters. Feature: 90° angle with 1" trade size ensures predictable bends and compatibility with standard EMT conduit. Business impact: Speeds up routing and minimizes rework while maintaining code-compliant radii. Application: Used in tight spaces and panel enclosures where precise turns are necessary. Feature: 9 inch length and compact profile aid installation clarity and clearance. Business impact: Improves fit in crowded enclosures and reduces field adjustment time. Application: Useful in confined cable runs and machinery closets. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location suitability. Business impact: Simplifies regulatory adherence and project commissioning, reducing inspection risk. Application: Common in commercial and light-industrial wiring projects. Feature: Part of the Crouse-Hinds EMT elbow family with standard EMT compatibility. Business impact: Streamlines procurement and spare-parts planning, lowering inventory complexity. Application: Supports scalable conduit networks across multiple job sites.
Get a Quick Quote for a Eaton EL10090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL10090?
Enquire Now
FAQs
EL10090 is designed to fit standard 1" EMT conduit with common set-screw connections. When installing, ensure alignment with the run, maintain the required bend radius, and secure with appropriate conduit fasteners. The 9 in length provides a predictable footprint, minimizing interference with nearby equipment and reducing field rework.
Yes. EL10090 is specified for 1" trade-size EMT conduit and integrates with typical EMT fittings from the Crouse-Hinds line. Its 90° bend and steel construction are designed to match industry standards, ensuring reliable connections and consistent electrical routing across installations.
EL10090 carries NEC/CEC standards for code compliance and is suited for Ordinary/Non-Hazardous Locations. This makes it appropriate for general industrial and commercial wiring where standard safety and performance requirements apply, reducing regulatory risk while maintaining installation quality.
The 90° steel elbow provides durable protection against impact and misalignment, which translates to fewer rework instances. Its compatibility with standard EMT systems speeds up routing in tight spaces, while NEC/CEC compliance helps avoid costly re-inspections and delays.
With robust steel construction and a predictable 1" EMT bend, EL10090 minimizes field replacements and maintenance interruptions. The quick-fit design reduces labor hours during installation, contributing to faster project completion and lower total cost of ownership on ongoing electrical conduit networks.
