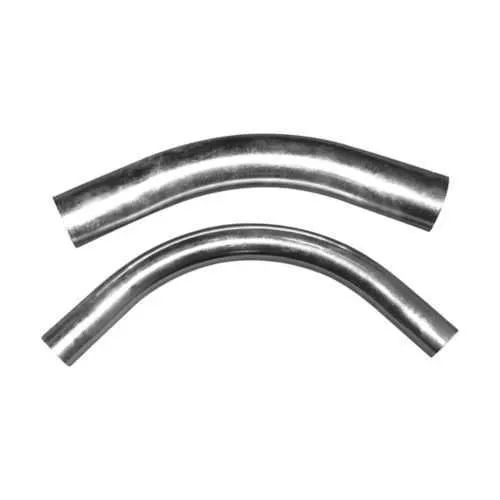

Eaton EL15090 EMT Elbow - NEC/CEC
Part Number: EL15090
Quick Summary
The Eaton EMT elbow EL15090 delivers a precise 90° steel bend for EMT conduit runs in commercial electrical installations. When space is tight or misalignment slows pulls, this elbow helps installers achieve accurate routing with minimal field adjustments. It carries NEC/CEC compliance and UL Canadian certifications, and is rated for Ordinary/Non-Hazardous locations, ensuring code conformity on common building projects. Built from steel for durability, it integrates seamlessly with the Crouse-Hinds EMT family, reducing inventory strain and speeding installation. In practice, contractors gain predictable fit-up, fewer call-backs, and improved pull efficiency across industrial and commercial applications.
Product Information
Extended Description
EL15090 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 90°, 1-1/2"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL15090
UPC
662277041317
Product Length/Depth
6.21 in
Product Height
3.31 in
Product Width
5.49 in
Product Weight
1.96 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
90° angle
Trade size
1-1/2"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT Canadian certification (Elbows)
Elbows and Pulling Elbows - EMT Canadian certification (Elbows)
Eaton Specification Sheet - EL15090
Feature: 90° steel bend with 1-1/2 inch trade size. Business Impact: Enables precise, code-compliant conduit routing with minimal repositioning, reducing on-site rework. Application: Ideal for tight spaces in commercial and light industrial EMT runs, supporting faster project completion. Feature: Steel construction for durability. Business Impact: Increases service life in high-traffic electrical corridors and exposed installations, lowering replacement and maintenance costs. Application: Office complexes, data centers, and manufacturing floors where physical wear is common. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous location rating. Business Impact: Simplifies regulatory approval and reduces compliance risk across standard facilities. Application: Retail, healthcare, and industrial facilities requiring reliable, code-backed conduit connections. Feature: EMT conduit compatibility and 1-1/2 inch nominal size. Business Impact: Streamlines inventory and sourcing with standard fittings, cutting engineering and procurement time. Application: Retrofit and new-build projects using common steel EMT systems. Feature: Dimensional footprint and weight (6.21 in L × 5.49 in W × 3.31 in H, 1.96 lb). Business Impact: Easy handling and installation in restricted spaces, lowering labor fatigue and installation time. Application: Short-radius runs in ceiling plenums and utility corridors. Feature: Crouse-Hinds series compatibility. Business Impact: Ensures seamless integration with other Eaton EMT fittings, reducing SKU sprawl. Application: Nationwide rollout projects and ongoing maintenance programs across facilities.
Get a Quick Quote for a Eaton EL15090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL15090?
Enquire Now
FAQs
EL15090 is designed for a standard 1-1/2 in EMT conduit. When installing, align the bend with the conduit path and use compatible EMT connectors and fittings. Verify clearance around the elbow to prevent binding during pulls, and ensure the assembly remains within the NEC/CEC requirements for ordinary locations.
EL15090 is manufactured to NEC/CEC standards and rated for Ordinary/Non-Hazardous Locations. This means code-compliant performance in typical commercial and light-industrial settings, reducing compliance risk and simplifying inspection processes for standard conduit installations.
Yes. EL15090 is part of the Eaton Crouse-Hinds EMT family and is designed to integrate with other EMT fittings from the same series, ensuring consistent performance, reliable mechanical joints, and streamlined sourcing across projects.
The EL15090 EMT elbow has a length of 6.21 inches, width of 5.49 inches, height of 3.31 inches, and weighs 1.96 pounds. It is intended for 1-1/2 inch trade-size EMT conduit in a standard 90° configuration.
Technical documentation is available from Eaton. Access the Eaton Specification Sheet for EL15090 at https://www.eaton.com/us/en-us/skuPage.EL15090.pdf, and review the Crouse-Hinds EMT catalog pages and UL Canada certification references linked in the product downloads for full compliance details.
