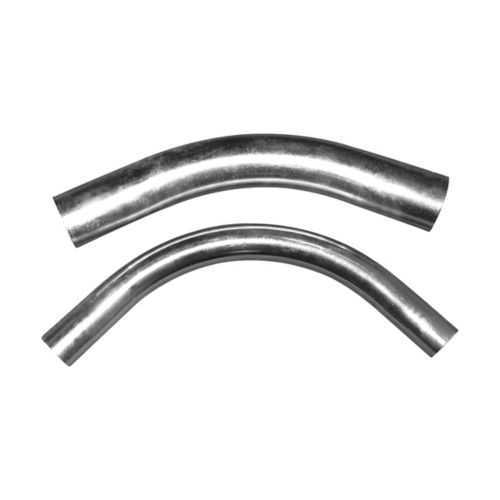

Eaton EL20045 EMT Elbow - 45° Steel, 2in Trade Size NEC/CEC
Part Number: EL20045
Quick Summary
The Eaton Crouse-Hinds EMT elbow joins EMT conduit at a 45-degree bend for rugged industrial electrical runs. Many installers struggle with misalignment and space constraints when routing conduit through crowded panels. This elbow is NEC/CEC compliant, UL-listed for EMT elbows, and suitable for ordinary/non-hazardous locations, delivering dependable performance. Its dimensions—15.5 in length, 3 in height, 2.5 in width—and weight of 2.27 lb give installers predictable handling and fit in confined spaces. By standardizing on the Crouse-Hinds series, you gain faster installation, tighter tolerances, and predictable performance in industrial cabinets, panels, and raceways.
Product Information
Extended Description
EL20045 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 45°, 2"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL20045
UPC
662277041423
Product Length/Depth
15.5 in
Product Height
3 in
Product Width
2.5 in
Product Weight
2.27 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
45° angle
Trade size
2"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Eaton Specification Sheet - EL20045
Feature: 2 in trade size steel EMT elbow EL20045 delivers a precise 45° bend for EMT conduit runs in industrial facilities. Business Impact: Robust steel construction and standard size minimize misalignment and rework, reducing installation time and field adjustments. Application: Ideal for service entrances, switchgear feeds, and panel risers where a reliable directional change is required without compromising bend radii. Feature: The elbow offers a 45° angle with a depth of 15.5 in and a height of 3 in, along with a width of 2.5 in. Business Impact: This geometry provides predictable fit in crowded enclosures and allows longer conduit spans between fittings without kinking. Application: Useful in confined spaces, between panels, and along runouts where space is at a premium. Feature: NEC/CEC compliance and UL certification for EMT elbows. Business Impact: Regulatory alignment reduces risk during audits and commissioning, while UL certification offers assurance for critical installations. Application: Applies to ordinary/non-hazardous locations, enabling safe operation in commercial and light-industrial settings. Feature: Compatibility with the Eaton Crouse-Hinds series EMT fittings. Business Impact: Facilitates seamless splicing with catalog items across the same series, improving procurement efficiency and inventory planning. Application: Works with other Crouse-Hinds elbows, connectors, and conduit accessories to standardize installations across facilities. Feature: Steel construction with a weight of 2.27 lb supports durable performance and easier on-site handling. Business Impact: Durable fittings reduce maintenance cycles and lifecycle costs in harsh environments, while the moderate weight helps technicians position and align the elbow without fatigue. Application: Suitable for ongoing maintenance and retrofit projects in automotive, food processing, and general manufacturing facilities.
Get a Quick Quote for a Eaton EL20045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20045?
Enquire Now
FAQs
EL20045 is designed for standard EMT conduit systems used in industrial facilities. It features a 2 in trade size steel body and a 45° bend, with 15.5 in length to fit typical routing needs. It aligns with common Crouse-Hinds and Eaton EMT elbow catalogs, enabling straightforward stocking and quick project integration without custom fabrication.
The EL20045 provides a true 45° bend with a 2 in trade size and steel construction, offering a robust bend radius and high torsional strength. With a 15.5 in depth and 3 in height, it supports longer spans between fittings while keeping conduit alignment stable, reducing rework in crowded panels and raceways.
Yes. EL20045 is specified for ordinary/non-hazardous locations and carries NEC/CEC compliance. It is UL-listed for EMT elbows, providing confidence during inspections and commissioning for indoor commercial and light-industrial installations, where reliable fittings and code conformity are essential.
The elbow meets NEC/CEC standards and is UL-listed for EMT elbows, with an area classification of Ordinary/Non-Hazardous Locations. This combination offers regulatory assurance, streamlined approvals, and safer, more predictable field deployments in typical industrial environments.
Using EL20045 standardizes conduit runs, reducing misfits and rework while speeding up installation. Its steel build and 2 in trade size improve durability and handling on site, lowering lifecycle costs and maintenance needs. The product also simplifies procurement by aligning with Eaton Crouse-Hinds EMT fittings catalogues.
