Eaton EL20090 EMT Elbow - NEC/CEC
Part Number: EL20090
Quick Summary
The Eaton EL20090 EMT elbow is a steel 90-degree conduit fitting designed for EMT systems in industrial installations. When space constraints or misalignment challenge efficiency, installation time can spike and risk of damage increases. This elbow carries NEC/CEC compliance and UL certification for USA and Canada, and is intended for Ordinary/Non-Hazardous Locations. Coupled with the Crouse-Hinds series ecosystem, it delivers rugged durability and predictable performance, helping OEMs and maintenance teams reduce field rework. Using this elbow supports streamlined procurement and consistent interchangeability across Eaton’s EMT fittings and accessories, simplifying inventory management while ensuring code-compliant installations.
Product Information
Extended Description

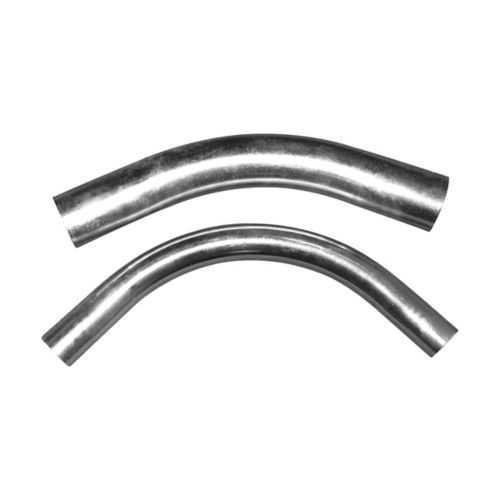

EL20090 Eaton: Eaton Crouse-Hinds series EMT elbow, Steel, 90°, 2"
Product Name
Eaton Crouse-Hinds series EMT elbow
Catalog Number
EL20090
UPC
662277041324
Product Length/Depth
5.63 in
Product Height
1.8 in
Product Width
2.93 in
Product Weight
2.88 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT
Shape
90° angle
Trade size
2"
Material
Steel
Crouse-Hinds series Elbows and Pulling Elbows - EMT catalog page
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Elbows and Pulling Elbows - EMT UL certification (Elbows)
Eaton Specification Sheet - EL20090
Feature: Steel construction provides high mechanical strength and resistance to impact. Business Impact: Reduces field damage and lowers lifecycle maintenance costs in demanding environments. Application: Industrial control panels and open-shop motor rooms benefit from durable EMT joints. Feature: 90-degree elbow geometry enables precise right-angle terminations. Business Impact: Improves conduit routing efficiency and lowers installation time, reducing project labor costs. Application: Equipment lines with tight footprints and equipment enclosures in confined spaces. Feature: 2-inch trade size and compatible EMT conduit connection. Business Impact: Improves fit with standard conduit runs, minimizing the need for adapters and spare parts. Application: Wiring for feeder lines and branch circuits in warehouses and manufacturing floors. Feature: Crouse-Hinds series compatibility. Business Impact: Streamlines procurement with a consistent family of fittings, decreasing stock diversity and lead times. Application: Retrofitting or expanding existing Eaton Crouse-Hinds installations. Feature: Certifications and area classification (NEC/CEC; Ordinary/Non-Hazardous Locations; UL-listed). Business Impact: Ensures code compliance, safety assurances, and faster approvals in regulated facilities. Application: Electrical installations in non-hazardous process areas and general purpose environments. Feature: Overall dimensions and weight (5.63 in length, 1.8 in height, 2.93 in width, 2.88 lb). Business Impact: Clear packaging guidance reduces handling risk and simplifies transport planning on site. Application: Field labor planning for conduit routing and inventory labeling.
Get a Quick Quote for a Eaton EL20090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20090?
Enquire Now
FAQs
EL20090 is designed for standard 2-inch EMT conduit runs. Use with compatible EMT clamps and accessories from the Eaton Crouse-Hinds family. Ensure clean conduit ends, proper insertion depth, and secure locking with common set-screw fasteners to prevent movement and reduce vibration in mechanical spaces.
Key specs include a 2-inch trade size, steel construction, 90-degree elbow angle, overall length of 5.63 inches, width of 2.93 inches, height of 1.8 inches, and a weight of 2.88 pounds. This fits standard EMT systems and complements other Crouse-Hinds EMT fittings for reliable protection of electrical runs.
Yes. EL20090 is specified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards and UL certifications for common industrial and commercial environments. This reduces risk in general purpose electrical installations without requiring hazardous-location ratings.
EL20090 features NEC/CEC standards compliance and UL listings for USA and Canada. It is intended for ordinary non-hazardous locations, providing assurance that the elbow meets governing codes and safety requirements for routine electrical installations.
Using EL20090 reduces field rework through dependable steel construction, standardized interfaces with Eaton’s EMT fittings, and faster installation. The UL/NEC/CEC compliance minimizes inspection delays and stock complexity, yielding lower maintenance costs and more predictable project timelines over the asset lifecycle.
