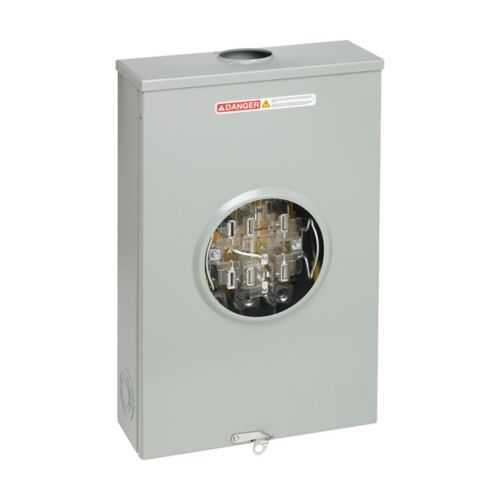

Eaton EL20L41GR2N Single Meter Socket - UL 3R
Part Number: EL20L41GR2N
Quick Summary
Eaton EL20L41GR2N is a 200 A single meter socket designed for dependable service in commercial and industrial electrical distribution. In busy switchgear rooms, installers struggle with space constraints, wiring access, and field wiring errors that stall projects. This unit is UL listed and housed in a 3R-rated enclosure, built from galvanized steel with ANSI 61 gray finish for long-term durability in harsh environments. The surface-mount, ringless cover and overhead feed capability simplify installation and reduce maintenance downtime. Lever bypass adds convenience during service or testing, while the 5-jaw, #6-350 MCM lugs support flexible feeder configurations. Together, these features help streamline procurement and lower lifecycle costs.
Product Information
Extended Description
EL20L41GR2N Eaton: Eaton B-Line series single meter sockets, 200 A, Lever, #6-350 MCM, 1 Position, Ringless, 3R, Z3614, Material-Galvanized steel, Surface mount, Number of wires 1Ø/3W, #6-350 MCM, 5 jaws
Product Name
Eaton B-Line series single meter sockets
Catalog Number
EL20L41GR2N
UPC
782051583618
Product Length/Depth
5.625 in
Product Height
19.125 in
Product Width
10.25 in
Product Weight
22.684 lb
Certifications
UL
Amperage rating
200 A
Material
Galvanized steel
Finish
ANSI 61 gray paint Mill-galvanized
Number of jaws
5
Number of wires
1Ø/3W
Bypass
Lever
Mounting method
Surface mount
Number of positions
1
Line lug size
#6-350 MCM
Load lug size
#6-350 MCM
Cover/door type
Ringless
Special features
Overhead feed
Degree of protection
3R
Feature: 200 A amperage rating with 5 jaws and #6-350 MCM lugs → Business Impact: Supports large feeders and future-proofing for service upgrades, reducing the need for panel changes or replacements. Application: Main distribution feeders in industrial or commercial panels. Long-tail keywords: 200 A meter socket, 5-jaw configuration, MCM lug sizes, LEVER bypass. Feature: Lever bypass and ringless cover → Business Impact: Faster maintenance and testing with minimal disconnection risk, lowering downtime costs. Application: Utility rooms and service entrances needing quick access. Long-tail keywords: ringless meter socket, lever bypass, maintenance efficiency. Feature: Surface mount mounting method → Business Impact: Space-efficient installation and compatibility with existing enclosures, speeding up project timelines. Application: Wall- and cabinet-mounted meter installations. Long-tail keywords: surface mounting, panel integration, easy installation. Feature: Galvanized steel with ANSI 61 gray finish → Business Impact: Durable, corrosion-resistant enclosure suitable for indoor environments, extending asset life. Application: Harsh manufacturing and commercial spaces. Long-tail keywords: galvanized steel enclosure, ANSI 61 gray, durable finish. Feature: 1Ø/3W configuration and overhead feed capability → Business Impact: Simplified wiring topology and overhead feeder options reduce field complexity. Application: Overhead feed systems in service entrances and switchgear. Long-tail keywords: 1Ø/3W, overhead feed, utility-grade meter sockets. Feature: UL certification and 3R enclosure rating → Business Impact: Regulatory compliance and dependable protection against environmental factors, minimizing recertification needs. Application: Compliance-driven projects in regulated industries. Long-tail keywords: UL listed, 3R enclosure, compliance-friendly meter sockets.
Get a Quick Quote for a Eaton EL20L41GR2N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20L41GR2N?
Enquire Now
FAQs
To install the EL20L41GR2N, verify a 200 A feeder setup and prepare for 1Ø/3W wiring with #6-350 MCM lugs. Use the surface-mount mounting method and engage the lever bypass for serviceability. Ensure ringless cover is seated to maintain enclosure integrity. This design is compatible with standard B-Line series configurations and common meter mounting footprints.
Key specs include a 200 A amperage rating, 1Ø/3W configuration, 5 jaws, and line/load lugs sized #6-350 MCM. The unit features overhead feed capability and a lever bypass for easier maintenance. The enclosure is UL listed with a 3R rating, and the finish is ANSI 61 gray on galvanized steel.
This meter socket is well-suited for commercial and industrial service entrances, switchgear rooms, and utility rooms requiring reliable 200 A service with overhead feed. It accommodates single-meter installations in surface-mount enclosures, making it ideal for data centers, manufacturing facilities, and large office buildings where space and ease of maintenance matter.
EL20L41GR2N carries UL certification and a 3R enclosure rating, ensuring regulatory compliance and suitable protection for indoor environments. Its galvanized steel construction with ANSI 61 gray finish provides durable service life in demanding applications while maintaining approval for low-voltage power distribution.
The lever bypass reduces testing downtime, while the ringless cover simplifies sealing and access during servicing. The 200 A capacity supports future feeder upgrades without panel replacement, lowering total cost of ownership. Durable galvanized steel and a 3R enclosure minimize corrosion-related maintenance, delivering predictable long-term performance and return on investment.
