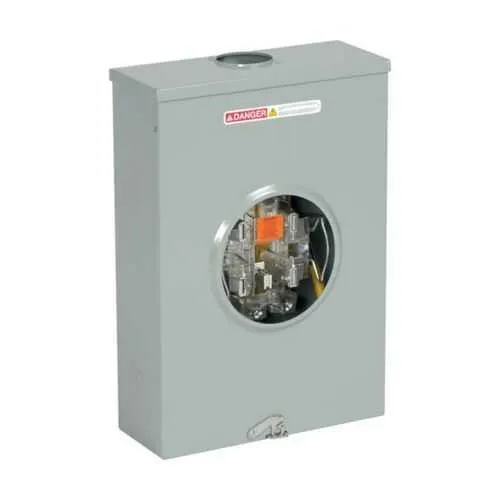

Eaton EL20L43GRST Single Meter Socket - UL Listed 200 A Ringless
Part Number: EL20L43GRST
Quick Summary
Eaton EL20L43GRST is a single meter socket for reliable power metering in industrial facilities. It addresses installation challenges by combining a ringless design, lever bypass, and surface mounting to simplify service tasks. UL certification, a 3R enclosure rating, and galvanized steel construction provide safety and durability in demanding environments. Designed for seamless integration with B-Line system infrastructure, it supports overhead and underground feeds while offering robust lug options (#6-350 MCM) for scalable electrical distribution.
Product Information
Extended Description
EL20L43GRST Eaton: Eaton B-Line series single meter sockets, 200 A, Ringless, 3R, Lever, #6-350 MCM, # 6-350 MCM, 4 jaws, 1 Position, Z3614, Galvanized steel, Surface mount, 1Ø/3W
Product Name
Eaton B-Line series single meter sockets
Catalog Number
EL20L43GRST
UPC
782051384901
Product Length/Depth
5.63 in
Product Height
19.125 in
Product Width
13.25 in
Product Weight
19.86 lb
Certifications
UL
Amperage rating
200 A
Material
Galvanized steel
Finish
ANSI 61 gray paint Mill-galvanized
Number of jaws
4
Number of wires
1Ø/3W
Bypass
Lever
Mounting method
Surface mount
Number of positions
1
Line lug size
#6-350 MCM
Load lug size
#6-350 MCM
Cover/door type
Ringless
Special features
Overhead and underground feed
Degree of protection
3R
Feature: 200 A amperage rating with four jaws and ringless design. Benefit: Supports large service entrances and minimizes meter-side obstructions, reducing installation time. Application: Ideal for industrial panels and main distribution enclosures. Feature: 1Ø/3W configuration with lever bypass. Benefit: Enables quick, safe bypass during maintenance and minimizes downtime. Application: Field servicing of metering points in utility or facility upgrades. Feature: Line/load lug size to #6-350 MCM. Benefit: Handles high-current feeders without additional interconnections, lowering voltage drop risk. Application: Main feeders to meters in energized buildings. Feature: Galvanized steel with ANSI 61 gray finish. Benefit: Corrosion resistance and durable aesthetics for harsh environments, reducing maintenance costs. Application: Outdoor enclosures and exposed installations. Feature: Surface mount with ringless, 3R enclosure. Benefit: Faster installation and reliable protection against weather and impact. Application: Roofed and semi-enclosed spaces with overhead/underground feeds. Feature: Overhead and underground feed capability. Benefit: Versatile deployment reduces inventory and simplifies project rollout. Application: Utility metering points and service entrances across facilities.
Get a Quick Quote for a Eaton EL20L43GRST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20L43GRST?
Enquire Now
FAQs
The EL20L43GRST is designed for surface mounting with a lever bypass and a ringless configuration. It supports overhead and underground feeds and uses line/load lugs sized #6-350 MCM. This combination allows for quick, safe metering installations in both indoor and outdoor environments, reducing downtime and streamlining service upgrades.
Key specs include a 200 A amperage rating, 1Ø/3W configuration, four jaws, ringless enclosure, and lug capacity for #6-350 MCM. The unit measures 5.63 in depth, 19.125 in tall, and 13.25 in wide. Construction is galvanized steel with an ANSI 61 gray finish, and the enclosure carries a 3R rating for weather resistance.
Yes. The EL20L43GRST explicitly supports overhead and underground feed, with a ringless design and surface-mount capability. This makes it versatile for service entrances in both above-ground utility setups and below-ground installations, while maintaining safety and ease of maintenance through lever bypass and a robust 3R enclosure.
The EL20L43GRST carries UL certification and features a 3R enclosure rating, indicating suitability for outdoor and semi-exposed installations. Its galvanized steel construction further reinforces durability and safety in demanding environments, aligning with common industry compliance expectations for meter sockets in commercial and industrial settings.
The galvanized steel body, durable ANSI 61 gray finish, and ringless design contribute to a long service life with reduced corrosion and fewer maintenance cycles. The 3R enclosure and lever bypass enable faster maintenance and safer servicing, delivering lower lifecycle costs and improved return on investment for metering points in facilities upgrades.
