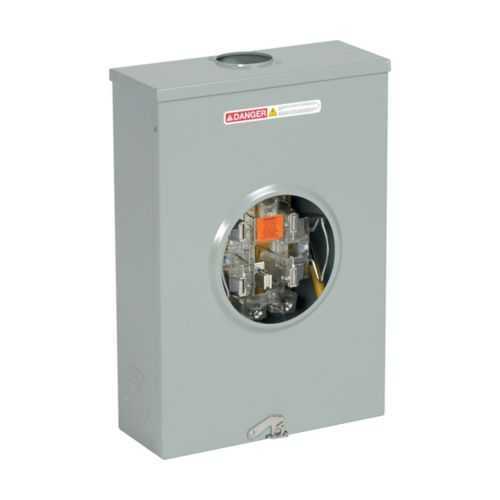

Eaton EL20L45GR1N Single Meter Sockets - UL Listed
Part Number: EL20L45GR1N
Quick Summary
Eaton B-Line series single meter sockets enable reliable service connections for industrial panels. Designers and maintenance teams often struggle to find a unit that handles large service lugs, supports overhead or underground feeds, and fits within tight enclosures. UL-listed construction, a 3R enclosure, and galvanized steel with ANSI 61 gray finish ensure durable outdoor performance. For project teams prioritizing reliability and ease of installation, this surface-mount 200 A meter socket delivers strong business value alongside compliance. The ringless cover and lever bypass design also support efficient, fast service work and minimal downtime in demanding environments.
Product Information
Extended Description
EL20L45GR1N Eaton: Eaton B-Line series single meter sockets, 200A, Lever, #6-350 MCM, 5 jaws, 1 Position, Ringless, 3R, Z3614, Galvanized steel, Surface mount, 1Ø/3W, #6-350 MCM
Product Name
Eaton B-Line series single meter sockets
Catalog Number
EL20L45GR1N
UPC
782051384796
Product Length/Depth
6.63 in
Product Height
22.125 in
Product Width
16.25 in
Product Weight
27.887 lb
Certifications
UL
Amperage rating
200 A
Material
Galvanized steel
Finish
ANSI 61 gray paint Mill-galvanized
Number of jaws
5
Number of wires
1Ø/3W
Bypass
Lever
Mounting method
Surface mount
Number of positions
1
Line lug size
#6-350 MCM
Load lug size
#6-350 MCM
Cover/door type
Ringless
Special features
Overhead and underground feed
Degree of protection
3R
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - EL20L45GR1N
Feature 200 A amperage rating → Business Impact supports high-load service connections, enabling robust performance for commercial and light industrial panels; Application suitable for utility-grade service connections with predictable current handling. Feature 5 jaws and #6-350 MCM line/load lugs → Business Impact accommodates large conductors with secure terminations, reducing splice points and potential hotspots; Application ideal for 1Ø/3W configurations in demanding feeds. Feature Lever bypass → Business Impact speeds maintenance and switching without opening the enclosure, lowering labor costs; Application advantageous for continuous service environments requiring quick access. Feature Ringless cover and surface mounting → Business Impact simplifies installation and reduces bulbous fixture footprint, enabling faster project turnover; Application for tight mechanical layouts in retrofit and new builds. Feature Galvanized steel with ANSI 61 gray paint → Business Impact offers corrosion resistance and long lifecycle in harsh environments; Application ensures longevity in outdoor or industrial settings. Feature Special features overhead and underground feed → Business Impact provides versatile deployment across multiple feeder strategies, reducing inventory needs; Application supports mixed-use facilities and adaptable meter installations.
Get a Quick Quote for a Eaton EL20L45GR1N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20L45GR1N?
Enquire Now
FAQs
The EL20L45GR1N uses surface mounting with lever bypass and accepts line and load lugs in the #6-350 MCM range. It features 5 jaws for a secure 1Ø/3W connection, making installation straightforward in limited spaces.
This unit is rated for 200 A, designed with a ringless cover and a 3R enclosure. It is constructed from galvanized steel with ANSI 61 gray paint, providing durability and corrosion resistance suitable for outdoor environments.
Yes. The meter socket is designed to support overhead and underground feeds, offering versatile deployment in commercial and light industrial installations, while maintaining solid electrical continuity and service reliability.
The unit is UL-listed and configured for a 3R enclosure rating, ensuring compliance with common electrical safety and installation standards for outdoor service equipment.
With a lever bypass, ringless cover, and a durable galvanized steel body, installation is faster and maintenance intervals are reduced. The 200 A rating and robust construction translate to lower replacement frequency and longer service life, improving total cost of ownership.
