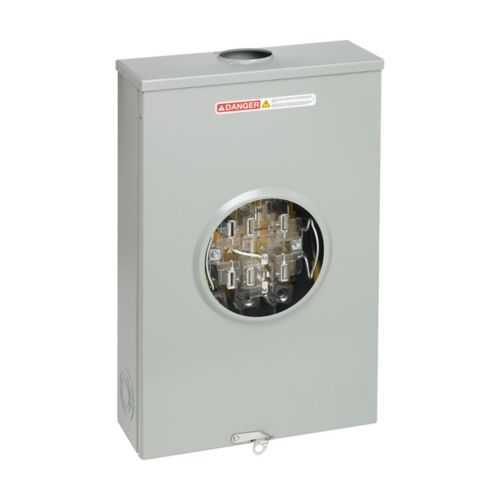

Eaton EL20L71GR1N Single Meter Socket - UL Listed
Part Number: EL20L71GR1N
Quick Summary
Eaton EL20L71GR1N single meter socket provides 200 A service for 3Ø/4W installations. The rugged B-Line design addresses installers who need overhead-feed, ringless meter connections while maintaining easy access for testing and maintenance, even in tight spaces. It carries UL listing and a 3R enclosure rating, ensuring compliance and safe operation in both indoor and outdoor environments. With surface-mount installation, 1 position, and compatible #6–350 MCM lugs, this socket minimizes field wiring effort, reduces install time, and lowers overall project cost. This combination of performance and durability supports uptime across industrial facilities and data centers.
Product Information
Extended Description
EL20L71GR1N Eaton: Eaton B-Line series single meter sockets, 200 A, 7 jaws, Steel, Surface mount, Number of wires 3Ø/4W, Lever, #6-350 MCM, #6-350 MCM, 1 Position, Ringless, 3R, Z3614
Product Name
Eaton B-Line series single meter sockets
Catalog Number
EL20L71GR1N
UPC
782051384833
Product Length/Depth
5.63 in
Product Height
21.25 in
Product Width
10.25 in
Product Weight
24.916 lb
Certifications
UL
Amperage rating
200 A
Material
Steel
Finish
ANSI 61 gray paint Mill-galvanized
Number of jaws
7
Number of wires
3Ø/4W
Bypass
Lever
Mounting method
Surface mount
Number of positions
1
Line lug size
#6-350 MCM
Load lug size
#6-350 MCM
Cover/door type
Ringless
Special features
Overhead feed
Degree of protection
3R
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - EL20L71GR1N
Feature: High current capacity and seven-jaw design enable secure connection of large conductors. Business impact: Supports 200 A service with reduced risk of overheating, improving system reliability and minimizing panel upgrades. Application: Useful in commercial buildings and light to mid-range industrial installations requiring robust power delivery. Feature: Three-phase four-wire configuration (3Ø/4W) aligns with modern motors and controls, simplifying integration. Business impact: Improves motor efficiency and protection coordination, reducing energy waste and downtime. Application: Suitable for manufacturing lines and HVAC systems where phase balance matters. Feature: Ringless cover with overhead-feed capability streamlines installation. Business impact: Cuts wiring complexity and reduces door clearance issues, delivering faster commissioning. Application: Outdoor walkways, service entrances, and data-center feeder paths. Feature: Surface-mount mounting and 1-position design simplify installation on walls or equipment racks. Business impact: Accelerates site wiring, lowers labor costs, and enhances serviceability. Application: Retrofit projects and new-build installations with limited fore space. Feature: Durable steel construction with ANSI 61 gray paint and mill-galvanized finish. Business impact: Delivers corrosion resistance and long service life in harsh environments. Application: Indoor/outdoor industrial settings, including damp or dusty locations. Feature: UL listing and 3R enclosure rating provide safety and protection. Business impact: Ensures regulatory compliance and protection against impact and moisture ingress. Application: Utility rooms, electrical closets, and outdoor enclosures in commercial facilities.
Get a Quick Quote for a Eaton EL20L71GR1N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20L71GR1N?
Enquire Now
FAQs
The EL20L71GR1N is designed for surface-mount installation, enabling fast, straightforward mounting on walls or equipment enclosures. With a single-position design and standard #6-350 MCM line/load lugs, electricians can quickly route conductors and secure the unit, reducing field time and potential miswiring. The overhead-feed capability further simplifies wiring in tight spaces, helping to meet aggressive project schedules while maintaining code-compliant clearances.
This meter socket is rated for 200 A with a 3Ø/4W configuration and seven jaws to accommodate large conductors. It uses #6-350 MCM line and load lugs, supports ringless operation, and includes a lever bypass for service accessibility. These specifications support robust service entrances and reliable distributor connections in demanding installations.
Yes, the unit is designed with a 3R enclosure rating and UL listing, providing protection suitable for moderate outdoor environments and indoor use. The steel enclosure with ANSI 61 gray paint and mill-galvanized finish adds durability against corrosion and impact, making it appropriate for service entrances, mechanical rooms, and other exposed locations.
The EL20L71GR1N carries UL listing, confirming compliance with recognized safety standards for electrical equipment. The 3R enclosure rating adds a protective layer against moisture and minor impacts, supporting safe operation in varied environments. While other certifications can vary by region, UL listing is a key validation for most North American industrial and commercial applications.
The meter socket’s robust steel construction, ringless design, and overhead-feed capability help minimize field maintenance and wiring errors, contributing to quicker commissioning and reduced labor costs. In long-term operations, the durable finish and UL/3R-rated enclosure improve uptime and reduce replacement frequency, delivering a favorable return on investment in facilities with frequent service changes or expansion needs.
