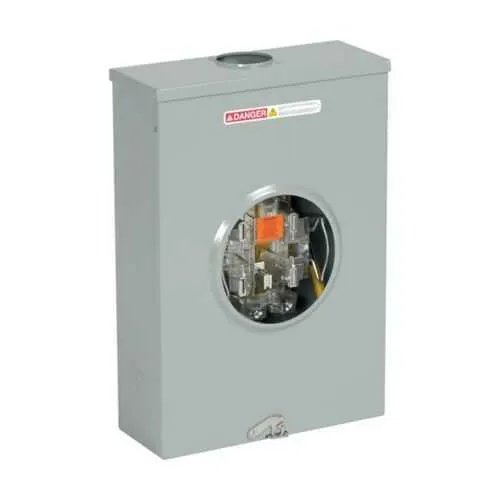

Eaton EL20L75GR1N Single Meter Socket - UL 3R
Part Number: EL20L75GR1N
Quick Summary
The Eaton EL20L75GR1N single meter socket delivers reliable power distribution for commercial and industrial installations. It addresses common installation challenges such as ringless meter seating, lever bypass operation, and space constraints within control panels. UL-listed and rated for 3R enclosures, with an ANSI 61 gray finish, this unit offers durable outdoor performance and corrosion resistance. Designed for overhead and underground feeds at 200 A, it integrates smoothly with B-Line series enclosures, helping projects meet schedules and reduce total cost of ownership.
Product Information
Extended Description
EL20L75GR1N Eaton: Eaton B-Line series single meter sockets, 200 A, Lever, #6-350 MCM, 7 jaws, 1 Position, Ringless, 3R, Z3614, Galvanized steel, Surface mount, Number of wires 3Ø/4W
Product Name
Eaton B-Line series single meter sockets
Catalog Number
EL20L75GR1N
UPC
782051384826
Product Length/Depth
6.63 in
Product Height
22.13 in
Product Width
16.25 in
Product Weight
29.245 lb
Certifications
UL
Amperage rating
200 A
Material
Galvanized steel
Finish
ANSI 61 gray paint Mill-galvanized
Number of jaws
7
Number of wires
3Ø/4W
Bypass
Lever
Mounting method
Surface mount
Number of positions
1
Line lug size
#6-350 MCM
Load lug size
#6-350 MCM
Cover/door type
Ringless
Special features
Overhead and underground feed
Degree of protection
3R
Feature: 200 A amperage rating supports heavy feeders, reducing distribution hardware and improving reliability. Business impact: Fewer components lowers installation time and long-term maintenance costs while increasing fault tolerance in main service paths. Application: Ideal for commercial buildings, data centers, and light-industrial facilities requiring robust incoming power and service continuity. Feature: 7 jaws and 3Ø/4W configuration accommodate full 3-phase services with multiple conductor sizes. Business impact: Flexible termination supports #6-350 MCM line and load lugs, simplifying field wiring and cut-to-fit installations. Application: Suitable for updated or retrofits in expanding facilities where future load growth is expected. Feature: Ringless cover design enables unobstructed meter seating and safer testing. Business impact: Reduces the risk of ring contacts and simplifies meter swap workflow for technicians. Application: Common in modern service entrances and utility metergroups where overhead and underground feeds are present. Feature: Lever bypass provides quick bypass operation without disconnecting the main lugs. Business impact: Speeds maintenance and fault isolation; reduces downtime. Application: Field service scenarios where rapid access is needed. Feature: Surface mount mounting method with galvanized steel body and ANSI gray paint finish. Business impact: Eases installation on walls and equipment frames; corrosion resistance in harsh environments. Application: Industrial facilities, warehouses, and outdoor enclosures. Feature: Overhead and underground feed capability with line/load lug sizes #6-350 MCM. Business impact: Maximizes installation versatility across site conditions and reduces adapters. Application: New builds and retrofits across campuses and manufacturing plants.
Get a Quick Quote for a Eaton EL20L75GR1N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton EL20L75GR1N?
Enquire Now
FAQs
Plan for ringless meter seating and lever bypass operation, with surface mounting on a compatible enclosure. Ensure conductor sizes are within the #6-350 MCM range for both line and load lugs and verify 3Ø/4W wiring. Use appropriate mounting hardware and maintain access to the 7-jaw assembly for serviceability and safety during metering.
Yes, the EL20L75GR1N is UL-listed, providing recognized safety compliance for commercial and industrial installations. It also features a 3R enclosure rating, offering weather-resistant protection suitable for outdoor and semi-exposed installations. Finish and corrosion resistance are supported by ANSI 61 gray paint and galvanized steel construction.
This meter socket is ideal for overhead and underground feed scenarios in 200 A service installations. Its 7-jaw, 3Ø/4W configuration accommodates standard 3-phase circuits, while ringless doors and lever bypass support safe, efficient metering operations in data centers, commercial buildings, and light-industrial facilities.
The EL20L75GR1N is part of Eaton's B-Line series, designed for seamless integration with compatible metering equipment and surface-mount enclosures. Its galvanized steel construction and ANSI 61 gray finish provide durable field performance, while the 6-350 MCM lug capability ensures robust termination compatibility with common feeders used in B-Line assemblies.
With 200 A service capability, lever bypass for quick maintenance, and a durable 3R-rated enclosure, the EL20L75GR1N reduces downtime and replacement frequency. The ringless design simplifies meter swaps, and the rugged finish lowers corrosion-related maintenance costs, delivering lower lifecycle costs and faster project commissioning.
